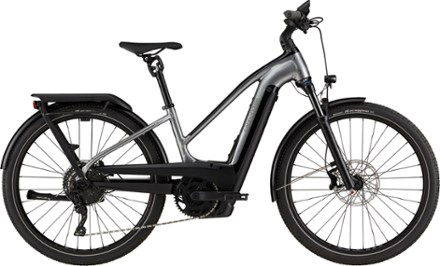

Inside the sporty Cannondale Tesoro Neo X 1 StepThru electric bike lies the wild heart of an explorer. With huge range, robust components and mixed-surface tires, this bike goes anywhere you want.
- Premium SmartForm C1 alloy frame; dual-battery-ready
- Suntour Raidon 34, 100 mm travel fork
- Comfy sportive riding position and precise handling make riding this e-bike a blast, whether you're in city traffic or carving turns through the mountains, on-road or off
- Rattle-free fenders
- High-capacity rear rack
- microSHIFT XLE 11-speed drivetrain
- Magura MT C hydraulic disc brakes
- Bosch Performance Line Speed drive unit with Bosch 750 Wh battery
- With up to 109 miles of range on a single charge, you've got the power to go anywhere and do anything
- Drive system provides pedal assist up to a maximum speed of 28 mph
- Designed to handle the higher loads and daily usage of a trekking e-bike, the Shimano LinkGlide system delivers seamless shifting and remarkably long-lasting performance
- Charge the battery on the bike, or easily remove it for charging indoors through the removable cover under the downtube
- Fully networked Bosch drive system can be controlled and customized via the Bosch eBike Flow app
- Drive system is regularly updated "over the air" for a totally connected and personalized ride experience
- Wide handlebar and low gearing
- Be visible—this bike features a powerful headlight, plus running lights integrated into the front of the frame and on the rear rack
- For the best blend of speed, comfort, capability and fit, the larger sizes of Tesoro Neo X run on 29 in. (622 mm) wheels, while the smallest size uses 27.5 in. (584 mm) wheels
- Intellimount stem lets you mount your phone easily and securely on the stem with an SP-Connect adapter
- Kiox 300 display and remote
- NOTE: Specs and images are subject to change based on component availability
Imported.
- 1 year of free adjustments (see more below)
- In-store bike assembly
- Pickup in store or curbside
- Bike experts available at 170+ bike shops
- An additional year of free adjustments on e-bikes
- 20% off shop services
- Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
New bikes go through a normal break-in period, after which they should be readjusted. All electric bicycles sold at REI include free adjustments for the defined period (one year after purchase date for non-members, or two years for REI Co-op Members)—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation, chain lubrication and e-bike firmware updates. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
UL2849 certified
| Best Use | Urban Cycling |
|---|---|
| E-Bike Classification | Class 3: pedal assist up to 28 mph |
| Motor | Bosch Performance Line Speed (28 mph) |
| Motor Type | Mid-Drive |
| Motor Torque (Nm) | 85 Newton meters |
| Battery Type | Lithium Ion |
| Battery Capacity (Wh) | 750 watt hours |
| Battery Removable | Yes |
| Charge Time (hrs) | 5 hours |
| Pedal Assist Range | 105 miles |
| Frame | SmartForm C1 alloy, step-thru, removable 750 Wh downtube battery, integrated front running light, tapered headtube, internal cable routing, 135 mm QR hub spacing, IS disc mount, motor protection |
| Step-Through | Yes |
| Bike Suspension | Front Suspension |
| Fork | SR Suntour XCR34, 100 mm, coil, boost spacing, offset - 44 mm (S) / 51 mm (M, L) |
| Fork Travel | 100 millimeters |
| Crankset | Bosch Gen4, 46T |
| Shifters | microSHIFT XLE Xpress Shifter, 11-speed |
| Rear Derailleur | microSHIFT XLE, medium cage |
| Rear Cogs | microSHIFT H-Series, 11-46, 11-speed |
| Number of Gears | 11 gear(s) |
| Brake Type | Hydraulic Disc Brake |
| Brakes | Magura MT C 2-piston hydraulic disc, MDR-C rotors, 203mm/203mm |
| Brake Levers | Magura MT C hydraulic disc |
| Rims | WTB STX i30 TCS, 32 hole, tubeless ready |
| Front Hub | Shimano MT400, 15 x 110 mm thru axle |
| Rear Hub | Shimano R600, 32 hole, QR |
| Wheel Size | S: 27.5 inches M: 29 inches L: 29 inches |
| Tires | Maxxis Pace 29 x 2.1 in. 53-622 (M-L) / 27.5 x 2.1 in. 53-584 (S) |
| Tire Width | 2.1 inches |
| Handlebar Shape | Riser Bar |
| Handlebar | Cannondale Trekking |
| Stem | Cannondale Urban Intellimount, internal cable routing, SP-Connect compatible phone mount |
| Seat Post | Parallelogram Suspension Seatpost, 31.6, 300 mm (S), 350 mm (M), 400 mm (L) |
| Saddle | Selle Royal Lookin |
| Pedals | Cannondale Fitness |
| Headset | Integrated Sealed Bearing, Tapered, internal cable routing |
| Chain | KMC X11, 11-speed |
| Weight | Unavailable |
| Gender | Unisex |
| S | M | L | |
|---|---|---|---|
| Height Range | 4'11" - 5'7" | 5'5" - 5'11" | 5'9" - 6'3" |
| Reach | 40.1 | 41.7 | 43.3 |
| Stack | 62.2 | 63.5 | 64.4 |
| Effective Top Tube | 57.9 | 59.9 | 61.8 |
| Seat Tube Center-Top | 40.0 | 43.5 | 47.0 |
| Standover Height | 66.6 | 66.9 | 66.2 |
| Head Tube Length | 14.0 | 13.0 | 14.0 |
| Head Tube Angle (degrees) | 68 | 68 | 68 |
| Seat Tube Angle (degrees) | 74 | 74 | 74 |
| Bottom Bracket Height | 29.9 | 30.5 | 30.5 |
| Wheelbase | 116.3 | 117.8 | 119.8 |
| Chainstay | 48.0 | 48.0 | 48.0 |
| Fork Offset | 5.1 | 5.1 | 5.1 |
Sizing Notes
Measurements are stated in centimeters unless otherwise indicated.
How we measure bikes
- Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
- Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
- Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
- Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
- Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
- Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
- Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
- Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
- Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
- Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
- Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
- Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
