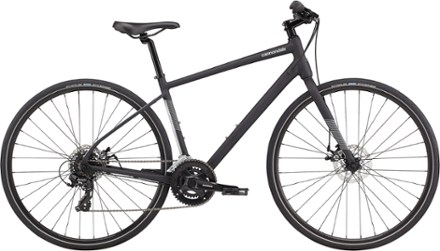

Perfect for getting a workout, city cruising or just getting out and feeling good, the Cannondale Quick 5 disc bike is a swift, sporty, versatile all-rounder that's ready to get out and have fun.
Wheel Size
700c
Number of Gears
14 gear(s)
- Lightweight aluminum frame and fork keep things sporty and quick as you like
- Comfort comes standard thanks to bump-absorbing SAVE micro-suspension, and a riding position that's upright for visibility and ease, yet forward enough for efficient speed
- OutFront steering geometry delivers agile handling by positioning the wheel farther out in front for more stability and control, as well as less chance of toe overlap
- 2 x 14-speed Shimano Tourney drivetrain and Promax mechanical disc brakes offer stable performance and reliable stopping power
- Blending speed with comfort, Quick is equipped with 700c road-bike-style wheels fitted with larger-volume 35 mm tires for better bump absorption, grip and durability
- Integrated sensor helps track your activity—like speed, distance and calories burned; register your bike and get reminders of needed service via the free Cannondale app
- Mounts for racks and fenders (not included) make the Quick perfect for rides through the city; plus it's sporty enough for harder riding to keep you healthy and fit
- Bright 360° reflective elements add an extra measure of visibility in low-light conditions
- NOTE: Specs and images are subject to change based on component availability
Imported.
This bike comes with Coast to Coast Support, which includes:
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
View the Cannondale Quick Product LineView all Cannondale Hybrid Bikes- 1 year of free adjustments (see more below)
- In-store bike assembly
- Pickup in store or curbside
- Bike experts available at 170+ bike shops
- 20% off shop services
- Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
| Best Use | Recreational Cycling |
|---|---|
| Frame | SmartForm C3 Alloy |
| Fork | Alloy, 1-1/8 in. steerer, OutFront offset, flat mount disc, mid-blade mounts |
| Bike Suspension | No Suspension |
| Crankset | Shimano Tourney, 46/30T |
| Bottom Bracket | Cartridge, square taper |
| Shifters | Shimano M315 Rapidfire Plus, 7-speed |
| Front Derailleur | Shimano Tourney, 31.8 clamp |
| Rear Derailleur | Shimano Tourney |
| Rear Cogs | Shimano HG200, 12-32T, 7-speed |
| Number of Gears | 14 gear(s) |
| Brake Type | Mechanical Disc Brake |
| Brakes | Promax mechanical disc, 160/160 mm rotors |
| Brake Levers | Promax BL42 |
| Rims | Cannondale Disc, double wall with eyelet, 32h |
| Front Hub | Shimano, alloy, sealed, quick-release |
| Rear Hub | Shimano, alloy, sealed, quick-release |
| Wheel Size | 700c |
| Tires | Schwalbe Spicer, 700c x 35 mm, K-Guard, reflective strip |
| Tire Width | 35 millimeters |
| Handlebar Shape | Riser Bar |
| Handlebar | 6061 Alloy Double-butted, 25 mm rise, 8 deg. sweep, 6 deg. rise, 640 mm width |
| Stem | 6061 Alloy, 31.8, 8 deg. |
| Seat Post | 6061 Alloy, 27.2 x 350 mm |
| Saddle | Cannondale Fitness Ergo Double Density |
| Pedals | Cannondale Fitness |
| Headset | 1-1/4 to 1-1/8 in. tapered |
| Chain | KMC Z7, 7-speed |
| Weight | 26 lbs. 14.4 oz. |
| Bike Weight | Bike weight is based on median size, as sold, or the average of two median sizes. |
| Gender | Unisex |
Cannondale Bikes (183798, 184135, 184134)
| XS | S | M | L | XL | XXL | |
|---|---|---|---|---|---|---|
| Height Range | 4'10" - 5'3" | 5'2" - 5'7" | 5'5" - 5'10" | 5'9" - 6'2" | 6'0" - 6'5" | |
| Reach | 39.0 | 39.8 | 40.6 | 41.4 | 42.2 | 43.0 |
| Stack | 53.0 | 55.4 | 57.8 | 60.2 | 62.6 | 65.0 |
| Effective Top Tube | 55.2 | 56.7 | 58.3 | 59.8 | 61.3 | 62.8 |
| Seat Tube Center-Top | 35.0 | 40.0 | 45.0 | 50.0 | 55.0 | 60.0 |
| Standover Height | 65.7 | 69.9 | 74.1 | 78.2 | 82.2 | 86.2 |
| Head Tube Length | 11.2 | 13.3 | 15.8 | 18.4 | 20.9 | 23.4 |
| Head Tube Angle (degrees) | 70.0 | 71.0 | 71.0 | 71.0 | 71.0 | 71.0 |
| Seat Tube Angle (degrees) | 73.0 | 73.0 | 73.0 | 73.0 | 73.0 | 73.0 |
| Bottom Bracket Height | 28.2 | 28.2 | 28.2 | 28.2 | 28.2 | 28.2 |
| Wheelbase | 104.6 | 105.3 | 106.9 | 108.6 | 110.2 | 111.8 |
| Chainstay | 43.5 | 43.5 | 43.5 | 43.5 | 43.5 | 43.5 |
| Fork Offset | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 |
Sizing Notes
Measurements are stated in centimeters unless otherwise indicated.
How we measure bikes
- Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
- Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
- Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
- Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
- Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
- Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
- Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
- Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
- Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
- Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
- Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
- Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
