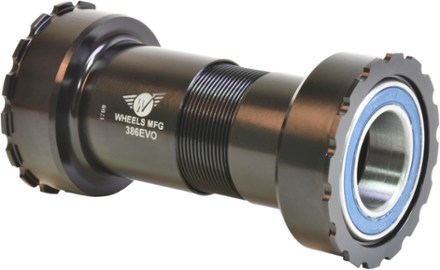

Wheels Manufacturing 386EVO Thread Together Bottom Bracket with Angular Contact Bearings for 22/24 mm SRAM GXP Spindles
$154.00
Providing smooth, long-lasting operation with your bike's drivetrain, this Wheels Manufacturing 386EVO Thread Together bottom bracket has an angular bearing on the drive side, radial on the other.
- Compatible with BB386EVO and BB392EVO bottom bracket/frame interface and 22/24 mm SRAM/Truvativ GXP crank spindles
- Fits frames with 86 to 92 mm shell widths; 46 mm shell internal diameter
- Machined aluminum cups thread together for stability, increased bearing life and simpler installation/maintenance
- Thread together design also prevents creaking
- Enduro Angular Contact sealed, grade 5 ball bearings on the drive side; ABEC-3 sealed grade 10 chromium-steel ball bearings on the non-drive side
- 52100 high-carbon chromium alloy races are extremely tough and durable for a long life
- Compatible with most Quarq DZero power-meter spiders with GXP spindles, except Eagle MTB
- Not compatible with the following Quarq, SRAM/GXP cranksets: Elsa, Riken, SRAM Red 22, SRAM S975, SRAM S2275, CinQo Saturn or Saturn2
- Quarq spiders with an internal diameter less than 49.5 mm may rub on the cup
Made in USA.
View all Wheels Manufacturing Bike Bottom Brackets| Best Use | Cycling |
|---|---|
| Bottom Bracket Installation | Thread Together |
| Bottom Bracket Standard | BB386 |
| Spindle Interface | No Spindle |
| Fits Shell Width | 86-92 millimeters |
| Spindle Diameter | 22/24 millimeters |
| Weight | 145 grams |
| Bearing Material | Stainless Steel |
| Material(s) | Aluminum cups; drive side: Enduro Angular Contact bearings; non-drive side: Enduro ABEC-3 bearings |
