You try sailing uphill without smiling. The Co-op Cycles Generation e1.1 electric bike gives you oomph without the effort with 5 modes of pedal-assist power, wide tires and a stable, comfy ride.
E-Bike Classification
Class 1: pedal assist up to 20 mph
Motor
Bafang 350W
Battery Capacity (Wh)
417 watt hours
Weight
54 pounds
- Low stand-over height design makes the bike easy to get on and off and easy to stabilize while standing at a stop
- One-size adjustable frame makes sharing with friends and family as easy as changing the seat height: this bike can accommodate riders ranging in height from 5'0" to 6'3" tall

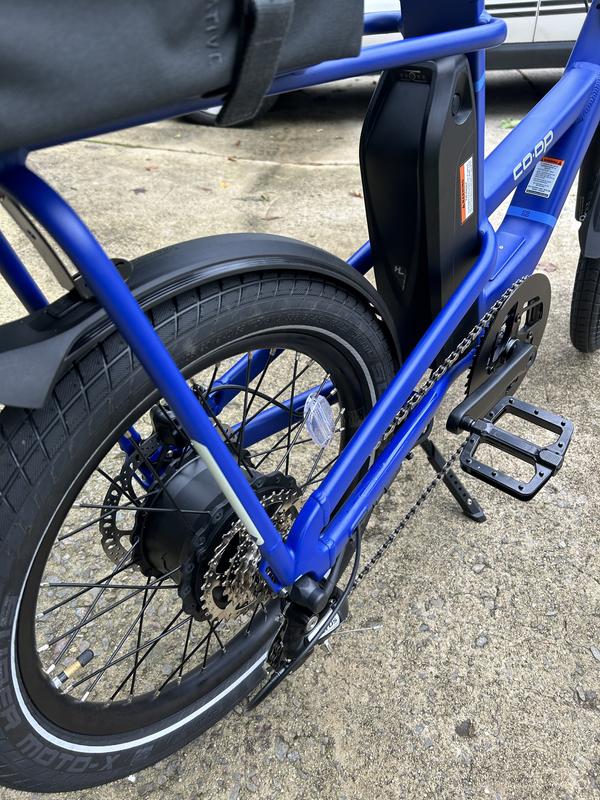

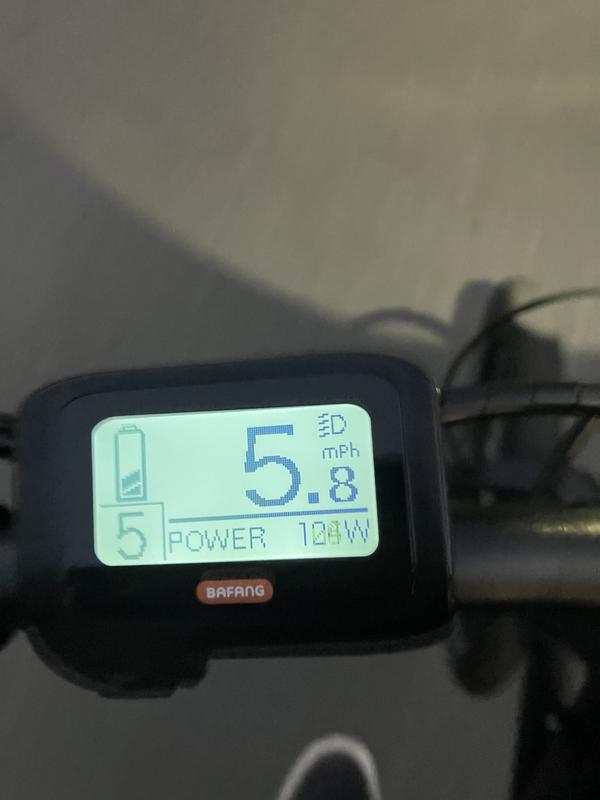

- Bafang 350W hub-drive motor offers a smooth ride with 5 pedal-assist modes, plus a walk mode

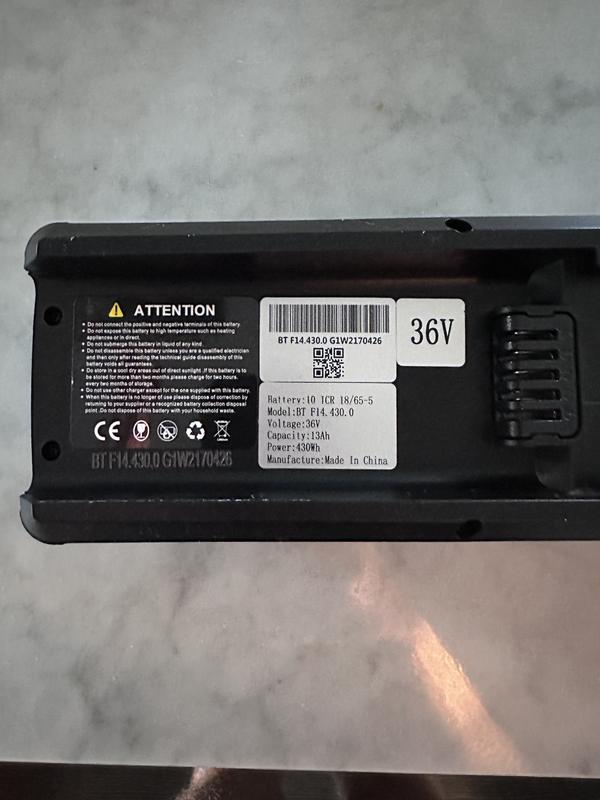

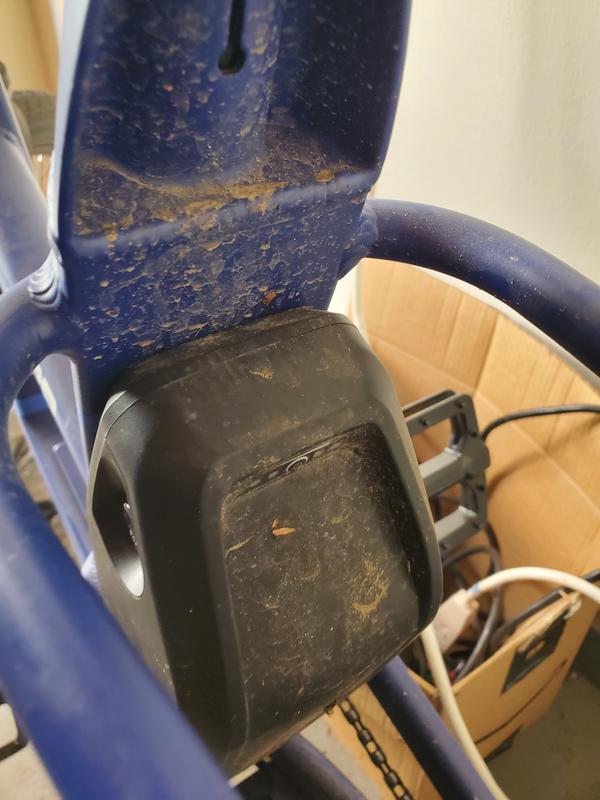

- Bafang 36V/11.6Ah battery readily powers the bike and running lights; plus, it's removable
- Battery comes equipped with a lock so you can feel confident parking around town; battery can be removed to charge at work or at home
- Included front and rear lights run on the battery so you don't need to think about keeping them charged; front light is 200 lumens
- 20 x 2.4 in. tires with extra-resilient Double Defense construction invite confident exploration, easily rolling over all kinds of urban terrain

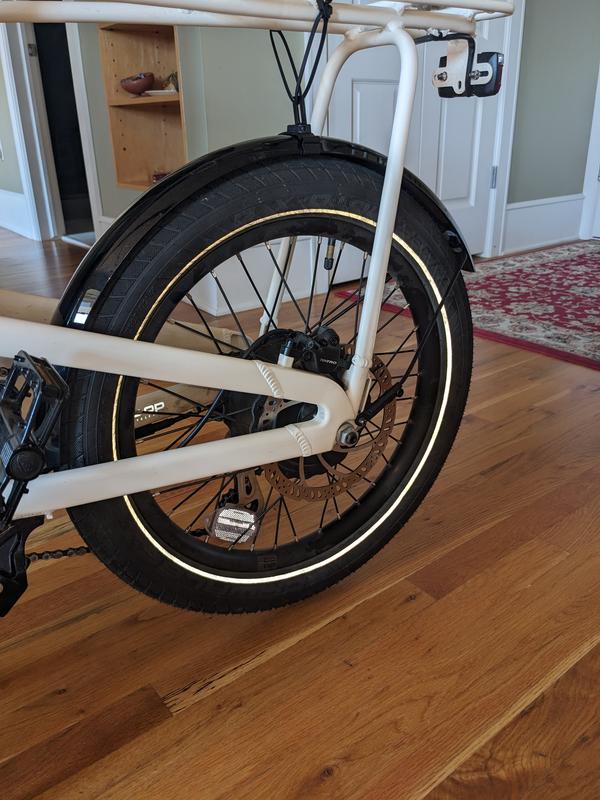

- Heavy-gauge spokes make for extra-durable wheels; tires include reflective sidewalls and flat protection for added safety and peace of mind

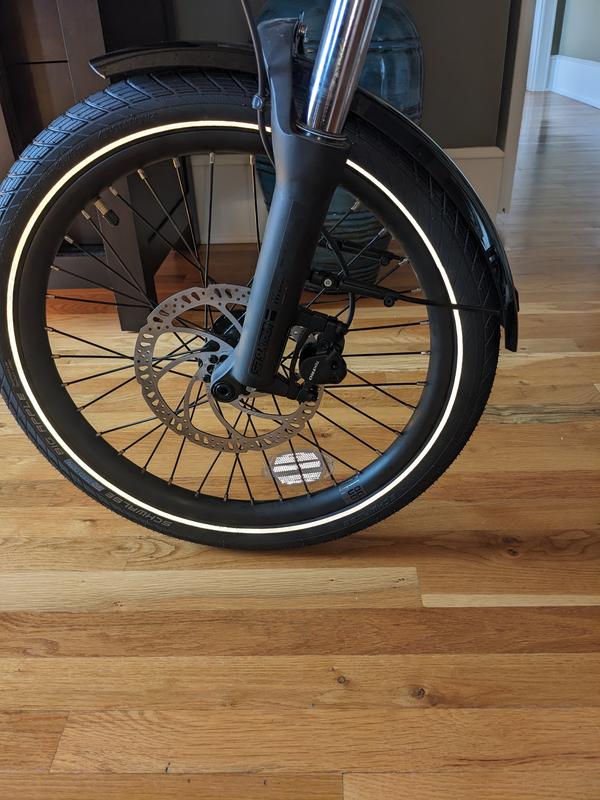

- Hydraulic disc brakes deliver reliable stopping power

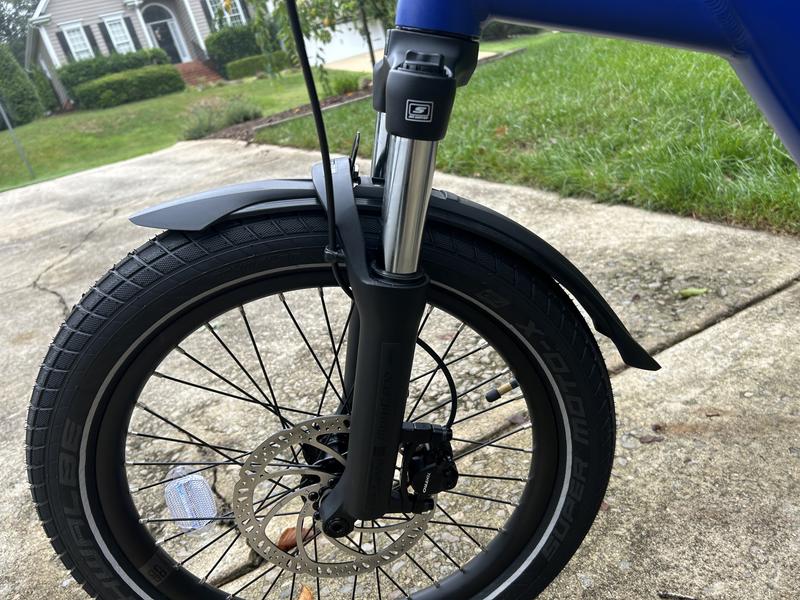

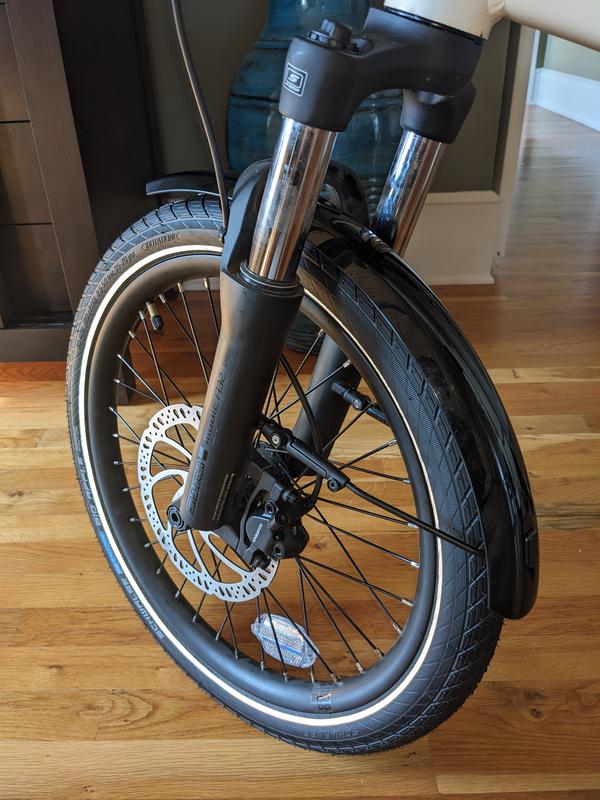

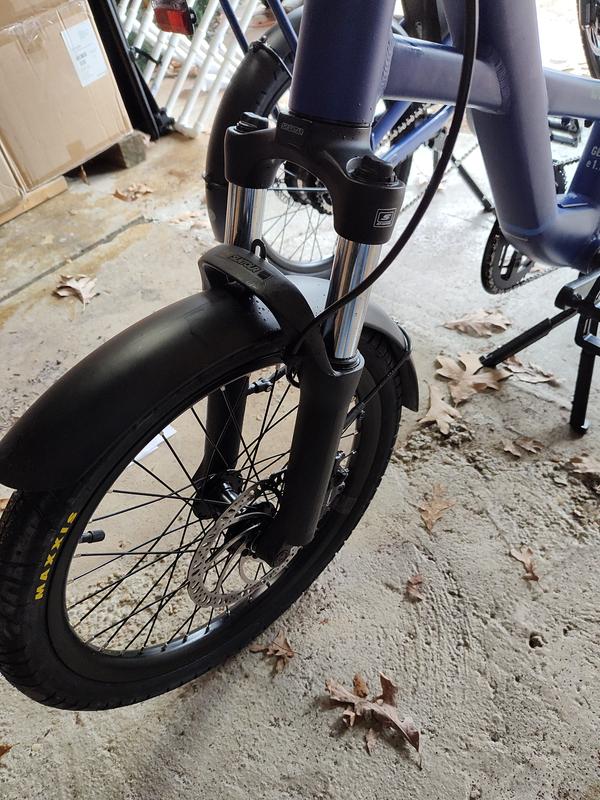

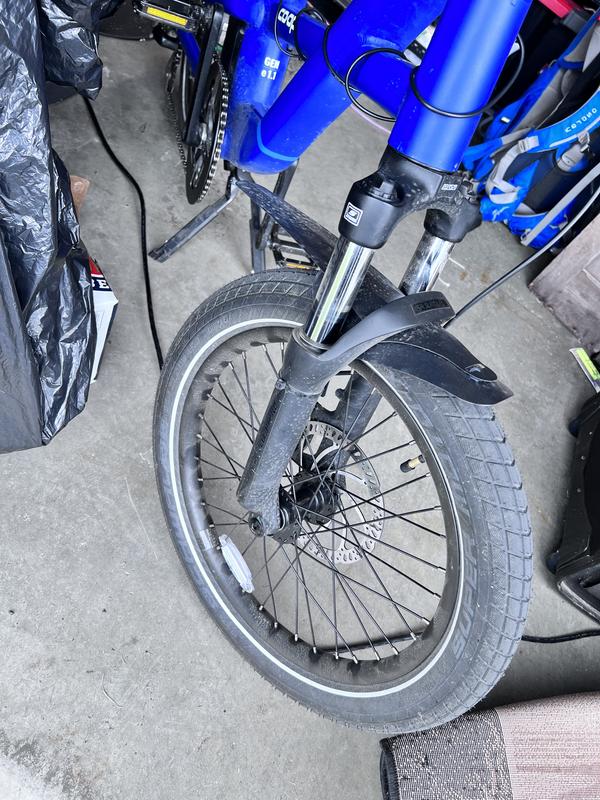

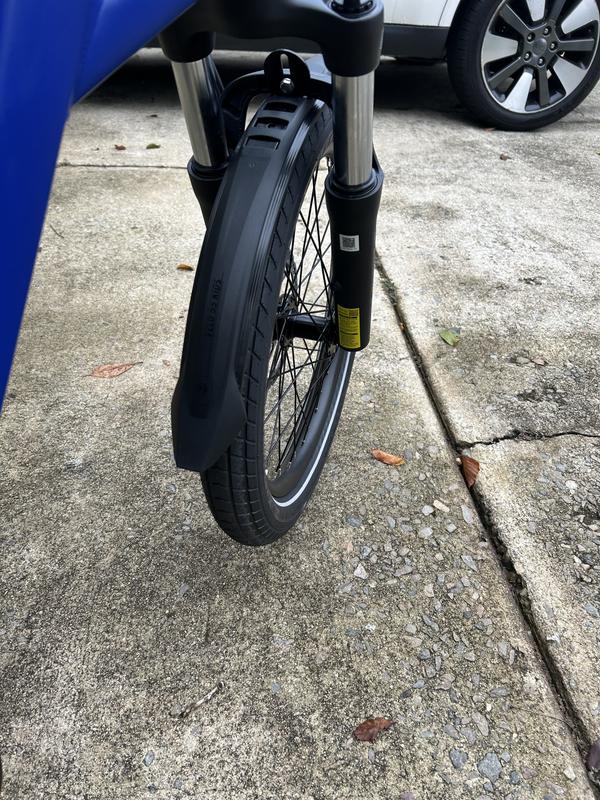

- SR Suntour suspension fork smooths out bumps to help keep you firmly in control

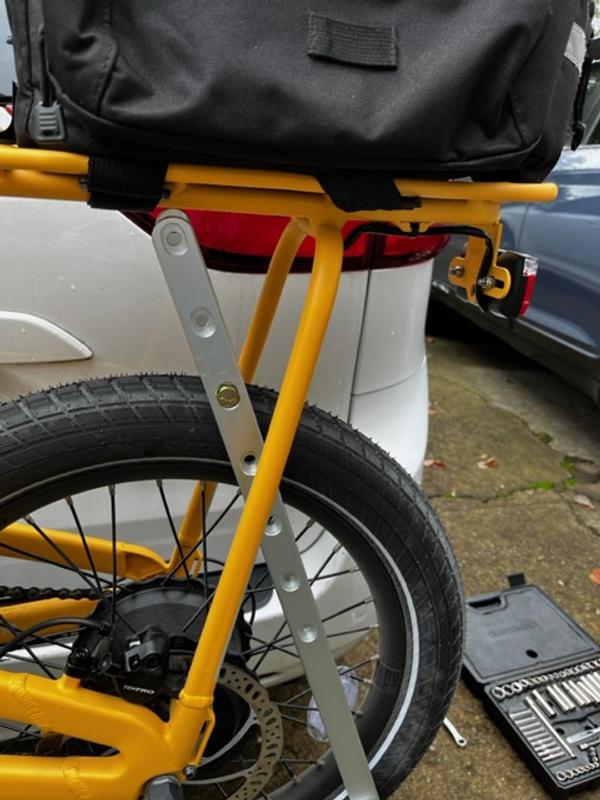

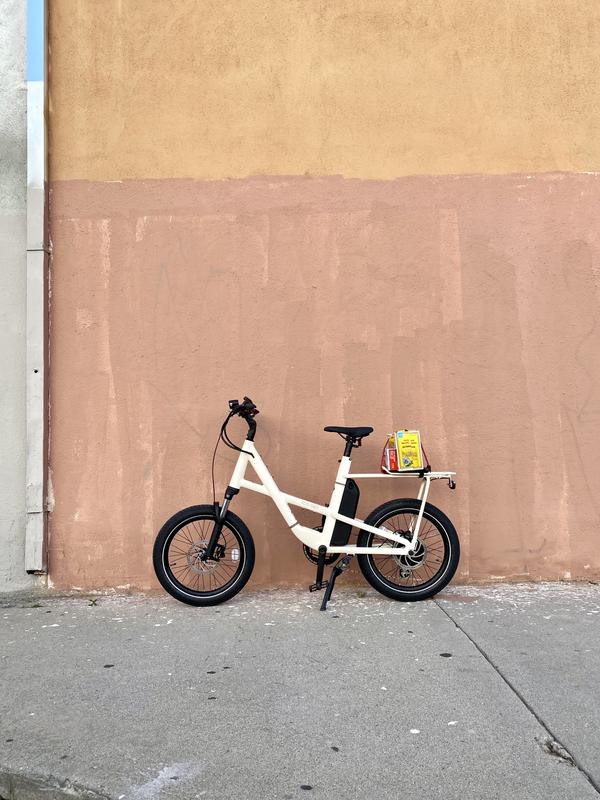

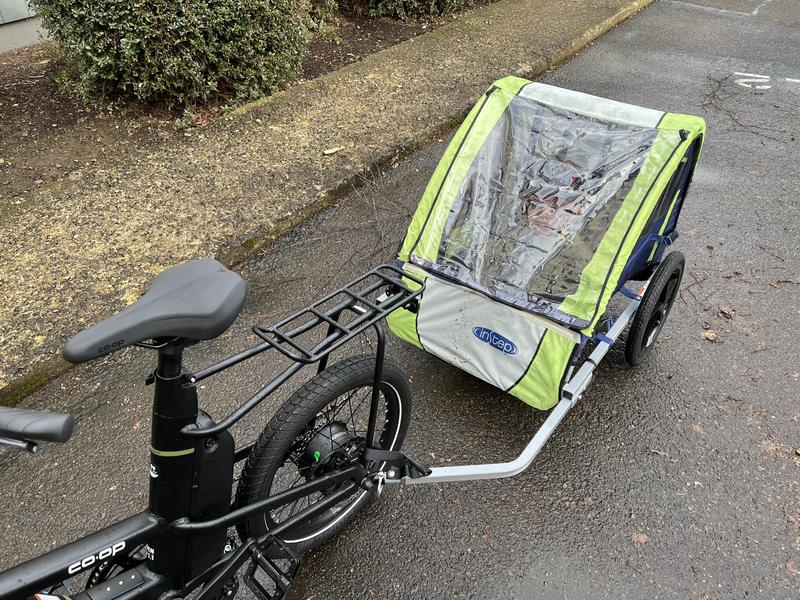

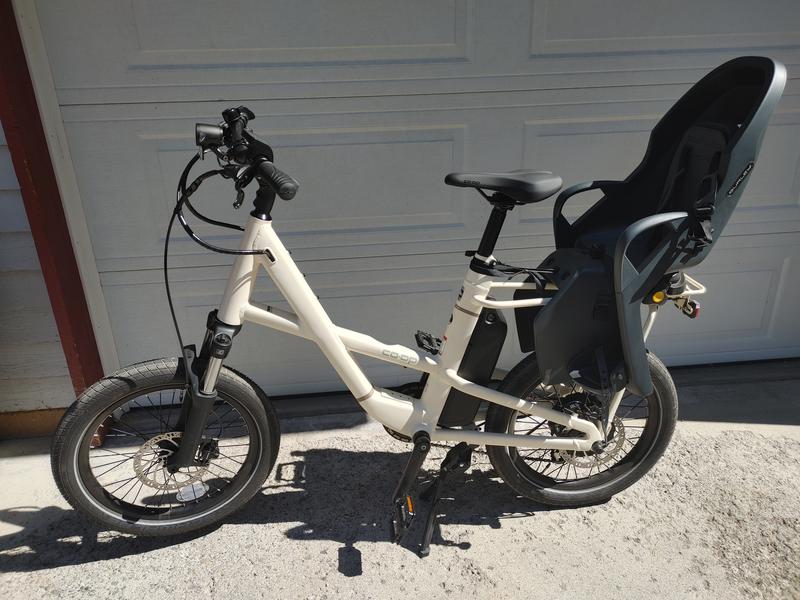

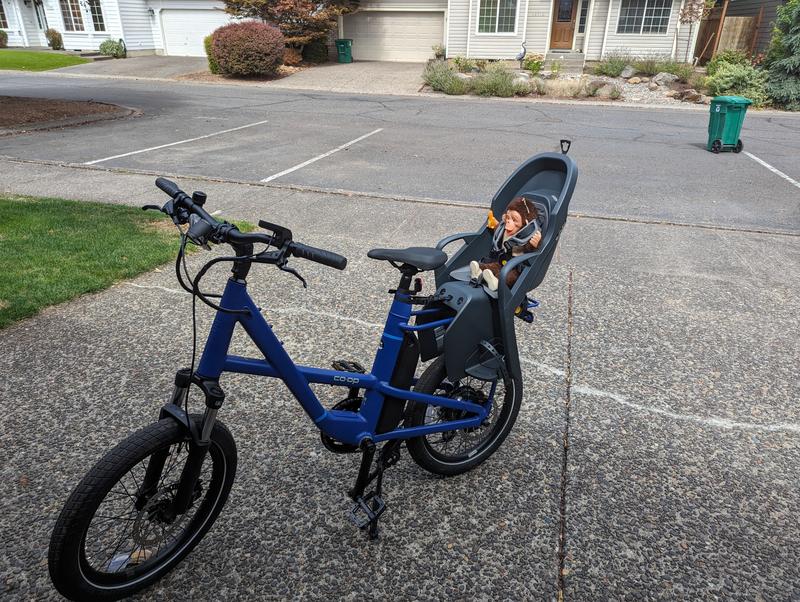

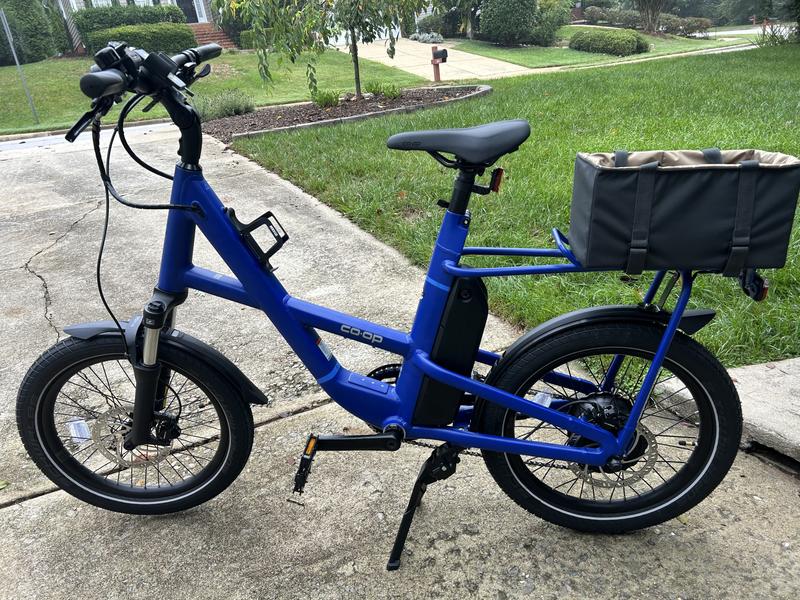

- Integrated rear rack steps up your cargo capability, easily fitting a wide variety of bike bags or even a kid carrier (not included)

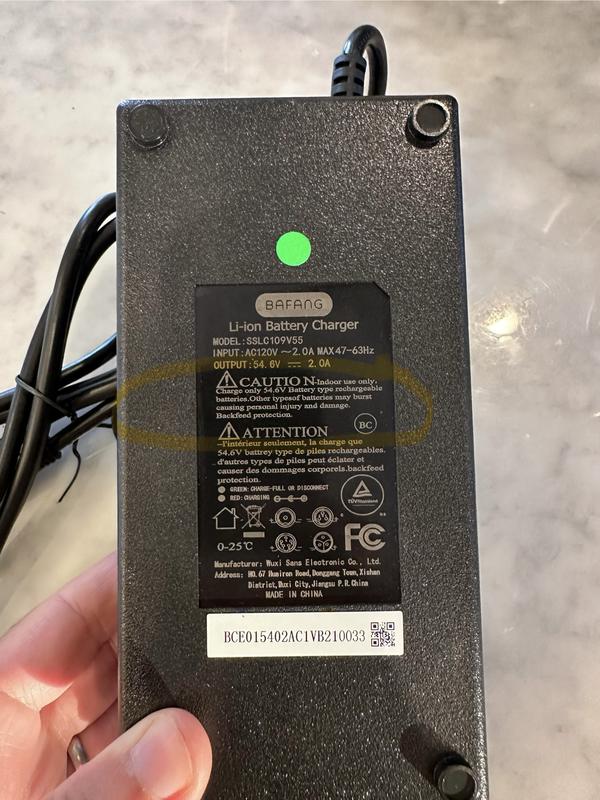

- 2A battery charger included
- Kickstand is easy to use and super stable
- Tested 30–40-mile average range depends on many factors; to get the most out of your range, use lower modes more frequently and save higher modes for hills
- Bicycle weight limit is 300 lbs. total, including rider + all gear carried on the bike and on the rider's body
- Rear rack holds up to 59 lbs.
- Complies with UL 2849 – ACT Lab LLC
- NOTE: Specs and images are subject to change based on component availability
Imported.
This e-bike comes with Coast to Coast Support, which includes:
New bikes go through a normal break-in period, after which they should be readjusted. All electric bicycles sold at REI include free adjustments for the defined period (one year after purchase date for non-members, or two years for REI Co-op Members)—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation, chain lubrication and e-bike firmware updates. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
UL2849 certified
View the Co-op Cycles Gen e Product LineView all Co-op Cycles Electric Cargo Bikes- 1 year of free adjustments (see more below)
- In-store bike assembly
- Pickup in store or curbside
- Bike experts available at 170+ bike shops
- An additional year of free adjustments on e-bikes
- 20% off shop services
- Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
New bikes go through a normal break-in period, after which they should be readjusted. All electric bicycles sold at REI include free adjustments for the defined period (one year after purchase date for non-members, or two years for REI Co-op Members)—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation, chain lubrication and e-bike firmware updates. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
UL2849 certified
| Best Use | Urban Cycling Recreational Cycling |
|---|---|
| E-Bike Classification | Class 1: pedal assist up to 20 mph |
| Motor | Bafang 350W |
| Motor Type | Geared Hub |
| Motor Torque (Nm) | 80 Newton meters |
| Battery Type | Lithium Ion |
| Battery Capacity (Wh) | 417 watt hours |
| Battery Removable | Yes |
| Charge Time (hrs) | 7 hours |
| Pedal Assist Range | 30-40 miles |
| Frame | 6061 aluminum |
| Step-Through | Yes |
| Bike Suspension | Front Suspension |
| Fork | SR Suntour SF20 Mobie A32 Cargo with 1-1/8 in. x 1-1/2 in. tapered steer tube and preload adjustment |
| Fork Travel | 70 millimeters |

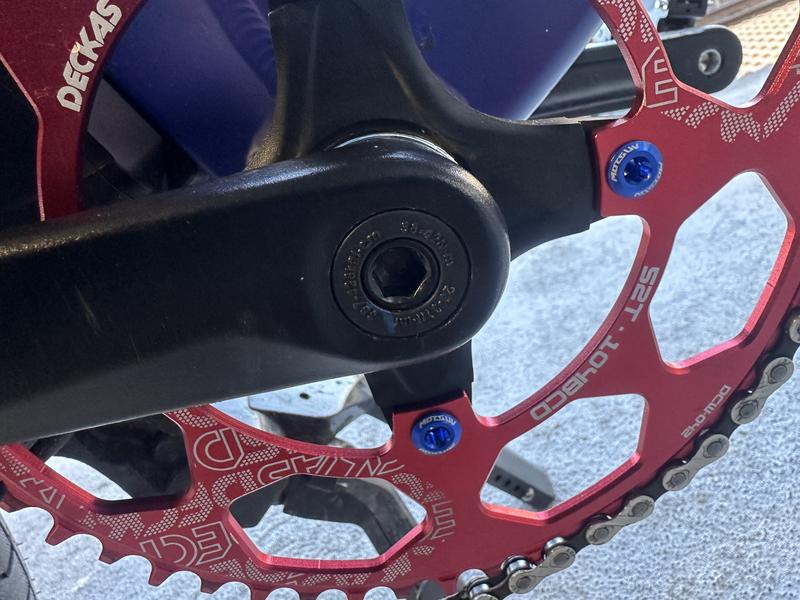

| Crankset | Alloy with 48T steel chainring |
| Bottom Bracket | Bafang |
| Shifters | Shimano Altus, EZ-Fire, 7-speed |
| Rear Derailleur | Shimano Altus, 7-speed |
| Rear Cogs | 11-34T 7-speed freewheel |
| Number of Gears | 7 gear(s) |
| Internally Geared | Yes |
| Brake Type | Hydraulic Disc Brake |
| Brakes | Tektro Hydraulic with 180 mm rotors |
| Brake Levers | Tektro |
| Rims | Co-op Cycles double-wall, 36h |
| Front Hub | 15 mm thru-axle 36-hole alloy |

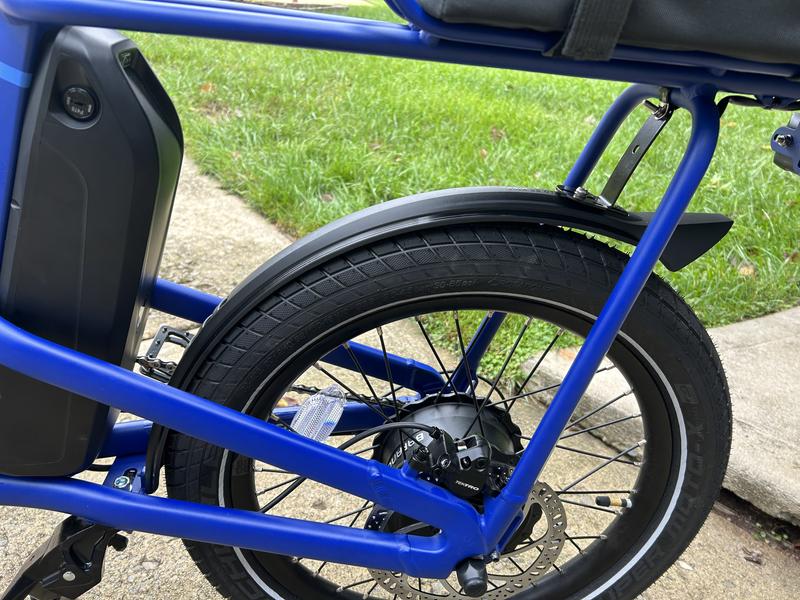

| Rear Hub | 36 hole |
| Wheel Size | 20 inches |
| Tires | Schwalbe Super-Moto-X with Double Defense GreenGuard puncture protection; 20 x 2.4 in. |
| Tire Width | 2.4 inches |
| Handlebar Shape | Riser Bar |
| Handlebar | Co-op Cycles 6061 aluminum |
| Stem | Promax HQ adjustable |
| Seat Post | Co-op Cycles aluminum ; 34.9 mm diameter; 390 mm length |
| Saddle | Co-op Cycles Comfort Plus with memory foam |
| Pedals | FPD alloy |
| Headset | 1-1/8 in. x 1-1/2 in. threadless |
| Chain | KMC for e-bike |
| Weight | 54 pounds |
| Bike Weight | Bike weight is based on median size, as sold, or the average of two median sizes. |
| Gender | Unisex |
| Sustainability | From a Climate Neutral Certified brand |
Co-op Cycles Bikes (189967, 190640)
| One Size | |
|---|---|
| Height Range | 5'0''-6'3'' |
| Reach | 380 |
| Stack | 580.8 |
| Effective Top Tube | 557.6 |
| Seat Tube Center-Top | 500 |
| Standover Height | 574.4 |
| Head Tube Length | 263 |
| Head Tube Angle (degrees) | 71 |
| Seat Tube Angle (degrees) | 72.3 |
| Wheelbase | 1074.3 |
| Chainstay | 450 |
| Fork Offset | 38 |
Sizing Notes
Measurements are stated in millimeters unless otherwise indicated.
How we measure bikes
- Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
- Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
- Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
- Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
- Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
- Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
- Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
- Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
- Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
- Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
- Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
- Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
