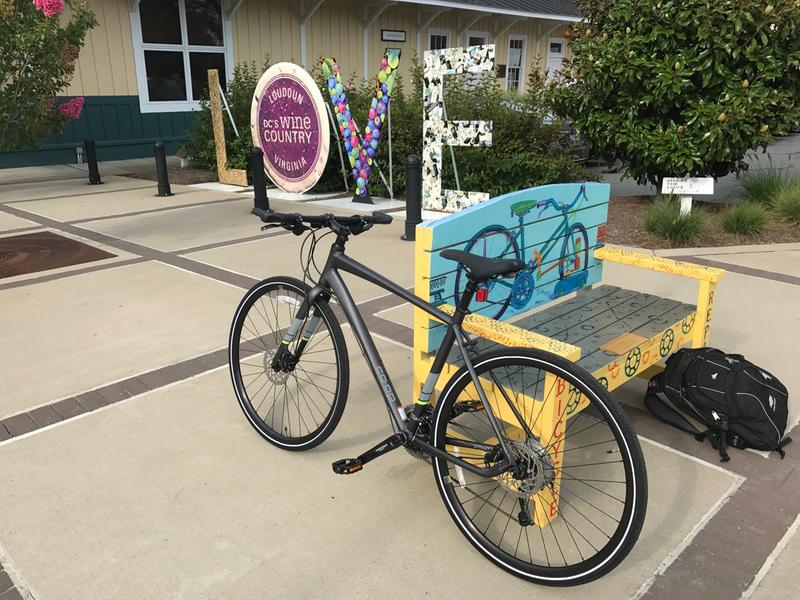

Co-op Cycles CTY 1.2 Bike
This product is not available. Good news: we have a newer version.
Shop newer versionHead to work or the store on the Co-op Cycles CTY 1.2 bike, with a versatile 3 x 9 drivetrain, flat handlebar design for comfortable upright riding, and room to add racks and fenders.
Wheel Size
700c
Number of Gears
27
- Aluminum frame and fork deliver a smooth ride for commuting, errands, riding around town and longer jaunts on the weekend
- Flat handlebar design provides an upright riding position for improved comfort and visibility
- Hydraulic disc brakes offer consistent performance in all conditions
- 3 x 9 drivetrain offers wide-ranging gearing to make riding up hills easy
- Reflective decals and reflective tire sidewalls increase visibility in dim light
- The CTY 1.2 includes a clip-in rear light that attaches directly to the saddle
- Fender and rack mounts (fenders and racks sold separately)
- NOTE: Specs and images are subject to change based on component availability
This bike comes with Coast to Coast Support, which includes:
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
View the Co-op Cycles CTY Product LineView all Co-op Cycles- 1 year of free adjustments (see more below)
- In-store bike assembly
- Pickup in store or curbside
- Bike experts available at 170+ bike shops
- 20% off shop services
- Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
| Best Use | Urban Cycling |
|---|---|
| Frame | 6061 aluminum |
| Bike Suspension | No Suspension |
| Fork | Aluminum |
| Crankset | Shimano Deore, 48/36/26 |
| Bottom Bracket | Shimano |
| Shifters | Shimano Deore |
| Front Derailleur | Shimano Alivio |
| Rear Derailleur | Shimano Deore |
| Rear Cogs | Shimano, 11-28, 9-speed |
| Number of Gears | 27 |
| Brake Type | Hydraulic Disc Brake |
| Brakes | Shimano hydraulic disc |
| Brake Levers | Shimano |
| Rims | Weinmann |
| Front Hub | Joytech, 32h |
| Rear Hub | Joytech, 32h |
| Wheel Size | 700c |
| Tires | Kenda Kwick Trax, 700 x 35mm |
| Tire Width | 35 millimeters |
| Handlebar Shape | Flat Bar |
| Handlebar | Co-op Cycles aluminum |
| Stem | Co-op Cycles aluminum |
| Seat Post | Co-op Cycles aluminum |
| Saddle | Selle Royal Shadow + with gel and integrated light |
| Pedals | FPD alloy platform |
| Headset | FPD cartridge |
| Chain | KMC Z99 |
| Weight | 25 lbs. 11.8 oz. |
| Bike Weight | Bike weight is based on median size, as sold, or the average of two median sizes. |
| Gender | Unisex |
| Sustainability | From a Climate Neutral Certified brand |
Co-op Cycles Bikes (109580)
| S | M | L | XL | |
|---|---|---|---|---|
| Height Range | 5'3" - 5'6" | 5'6"- 5'9" | 5'9" - 6'0" | 6'0" - 6'3" |
| Reach | 407 | 422 | 424 | 442 |
| Stack | 535 | 551 | 575 | 600 |
| Effective Top Tube | 560 | 585 | 600 | 625 |
| Seat Tube Center-Top | 400 | 450 | 500 | 550 |
| Standover Height | 28 in. | 29 in. | 31 in. | 32 in. |
| Head Tube Length | 110 | 125 | 150 | 175 |
| Head Tube Angle (degrees) | 70.3 | 71 | 71 | 71.5 |
| Seat Tube Angle (degrees) | 74 | 73.5 | 73 | 73 |
| Wheelbase | 1065 | 1081 | 1092 | 1113 |
| Chainstay | 445 | 445 | 445 | 445 |
| Fork Offset | 50 | 50 | 50 | 50 |
Sizing Notes
Measurements are stated in millimeters unless otherwise indicated.
How we measure bikes
- Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
- Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
- Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
- Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
- Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
- Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
- Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
- Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
- Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
- Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
- Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
- Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
