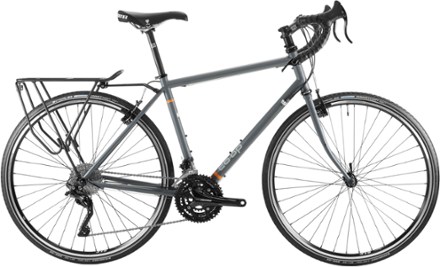

Co-op Cycles ADV 1.1 Bike
This product is not available. Good news: we have a newer version.
Shop newer versionTackle mountain passes with a full load on the Co-op Cycles ADV 1.1 road-touring bike, which includes an ultra-low gear option, a back rack and a smooth-riding chromoly steel frame.
Wheel Size
700c
Number of Gears
30
- Classic touring frame accommodates front and rear racks and fenders; rear rack included (front rack and fenders sold separately)
- Double-butted chromoly steel frame offers great stability and strength under heavy loads, plus the reliably smooth ride quality that steel is known for
- 30-speed drivetrain: dependable Shimano Deore crankset and front derailleur, reliable Microshift bar-end shifters, Shimano XT rear derailleur
- The Shimano Deore XT rear derailleur accommodates up to a 36t rear cog for an ultra-low gear option, giving you sweet relief when tackling mountain passes with a full load
- Brakes provide reliable stopping power; wide brake arm spacing allows ample room for fenders front and back
- Puncture-resistant Schwalbe Marathon tires have the durability needed to log long miles and feature reflective sidewalls
- The ADV 1.1's fork features a cable guide braze-on for easy upgrading to a dynamo front hub; also includes spoke holders on the drive-side chainstay
- NOTE: Specs and images are subject to change based on component availability
This bike comes with Coast to Coast Support, which includes:
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
View the Co-op Cycles ADV Product LineView all Co-op Cycles- 1 year of free adjustments (see more below)
- In-store bike assembly
- Pickup in store or curbside
- Bike experts available at 170+ bike shops
- 20% off shop services
- Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
| Best Use | Bike Touring |
|---|---|
| Frame | Double-butted chromoly steel |
| Fork | Chromoly steel |
| Bike Suspension | No Suspension |
| Crankset | Shimano Deore, 48/36/26 |
| Bottom Bracket | Shimano |
| Shifters | Microshift BS-M10 bar-end |
| Front Derailleur | Shimano Deore LX |
| Rear Derailleur | Shimano XT |
| Rear Cogs | Shimano HG62, 11-34, 10-speed |
| Number of Gears | 30 |
| Brake Type | Rim |
| Brakes | Tektro RX6 linear pull |
| Brake Levers | Tektro RL520 |
| Rims | Mavic A319 |
| Front Hub | Co-op Cycles 12mm thru-axle |
| Rear Hub | Co-op Cycles QR |
| Wheel Size | 700c |
| Tires | Schwalbe Marathon with puncture protection, 700 x 32mm |
| Tire Width | 32 millimeters |
| Handlebar Shape | Drop Bar |
| Handlebar | Co-op Cycles aluminum |
| Stem | Co-op Cycles aluminum |
| Seat Post | Co-op Cycles aluminum |
| Saddle | WTB Pure V Race |
| Pedals | Sold separately |
| Headset | FSA with turn limiter |
| Chain | KMC X10 |
| Weight | 28 lbs. 8 oz. |
| Bike Weight | Bike weight is based on median size, as sold, or the average of two median sizes. |
| Gender | Unisex |
| Sustainability | From a Climate Neutral Certified brand |
Co-op Cycles Bikes (109579)
| S | M | L | XL | XXL | |
|---|---|---|---|---|---|
| Height Range | 5'3" - 5'6" | 5'6"- 5'9" | 5'9" - 6'0" | 6'0" - 6'3" | 6'3" - 6'6" |
| Reach | 360 | 361 | 368 | 376 | 388 |
| Stack | 539 | 568 | 593 | 630 | 657 |
| Effective Top Tube | 515 | 535 | 555 | 575 | 595 |
| Seat Tube Center-Top | 460 | 500 | 540 | 580 | 620 |
| Standover Height | 30 in. | 31 in. | 32 in. | 34 in. | 35 in. |
| Head Tube Length | 130 | 160 | 185 | 225 | 250 |
| Head Tube Angle (degrees) | 70.5 | 70.5 | 70.5 | 70.5 | 70.5 |
| Seat Tube Angle (degrees) | 74 | 73 | 72.5 | 72.5 | 72.5 |
| Wheelbase | 1030 | 1041 | 1066 | 1078 | 1099 |
| Chainstay | 455 | 455 | 455 | 455 | 455 |
| Fork Offset | 50 | 50 | 50 | 50 | 50 |
Sizing Notes
Measurements are stated in millimeters unless otherwise indicated.
How we measure bikes
- Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
- Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
- Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
- Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
- Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
- Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
- Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
- Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
- Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
- Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
- Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
- Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
