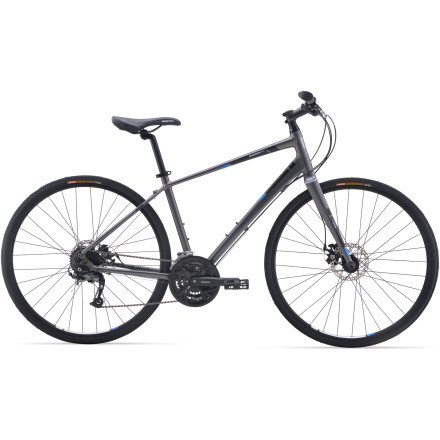

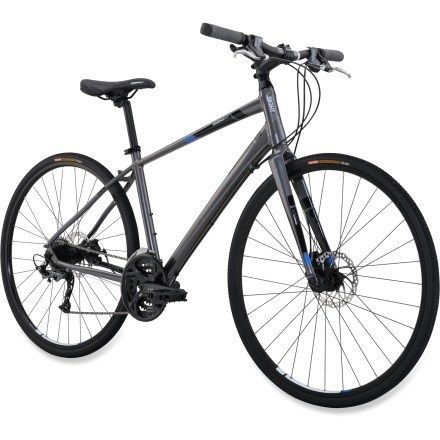

Diamondback  Insight 3 Disc Bike - 2016

This product is not available.

Shop similar products

The Insight Disc is a performance hybrid bike that combines an upright riding position and powerful disc brakes for a compliant, comfortable ride.

Features

  • 6061-T6 aluminum alloy frame is the standard for durability
  • Shimano drivetrain provides 27 gears to tackle any terrain
  • Tektro Aries mechanical disc brakes provide powerful braking for any conditions
  • Fast-rolling 700c Equation R23 wheels; integrated frame and fork eyelets make it easy to mount rack and fenders (not included)
  • NOTE: Specs and images are subject to change based on component availability

Imported.

This bike comes with Coast to Coast Support, which includes:
  • 1 year of free adjustments (see more below)
  • In-store bike assembly
  • Pickup in store or curbside
  • Bike experts available at 170+ bike shops
REI Co-op Members get more:
  • 20% off shop services
  • Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
More about our free adjustments:
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.

View all Diamondback

Technical Specs

Best Use

Urban Cycling

Frame

6061 aluminum

Bike Suspension

No Suspension

Fork

Aluminum

Crankset

Shimano M371, 26/36/48

Bottom Bracket

Sealed cartridge

Shifters

Shimano Alivio

Front Derailleur

Shimano Acera

Rear Derailleur

Shimano Alivio

Rear Cogs

Shimano HG200, 11-32, 9-speed

Number of Gears

27 gear(s)

Brake Type

Mechanical Disc Brake

Brakes

Tektro Aries mechanical disc

Brake Levers

Tektro linear

Rims

Equation R23

Front Hub

Alloy, 32h

Rear Hub

Alloy, 32h

Wheel Size

700c

Tires

Kenda Kwick Trax, 700 x 32

Tire Width

32 millimeters

Handlebar Shape

Riser Bar

Handlebar

DB alloy

Stem

DB 3D forged

Seat Post

Alloy micro adjust

Saddle

DB Performance Hybrid

Pedals

Resin platform

Headset

Integrated 1 1/8

Chain

KMC-Z99

Weight

26 lbs. 1 oz.

Bike Weight

Bike weight is based on median size, as sold, or the average of two median sizes.

Gender

Unisex

Size Chart

Diamondback Bikes (893068)
SMLXL
Height Range5'4" to 5'7"5'7" to 5'10"5'10" to 6'1"6'1" to 6'4"
Reach379398412425
Stack577596615638
Effective Top Tube555580600620
Seat Tube Center-Top400450500550
Standover Height710752793833
Head Tube Length150170190215
Head Tube Angle (degrees)71717171
Seat Tube Angle (degrees)73737373
Bottom Bracket Height275275275275
Wheelbase1049107310951115
Chainstay450450450450
Fork Offset48484848

Sizing Notes

Bike measurements are stated in millimeters.

How we measure bikes

  1. Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
  2. Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
  3. Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
  4. Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
  5. Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
  6. Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
  7. Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
  8. Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
  9. Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
  10. Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
  11. Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
  12. Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
