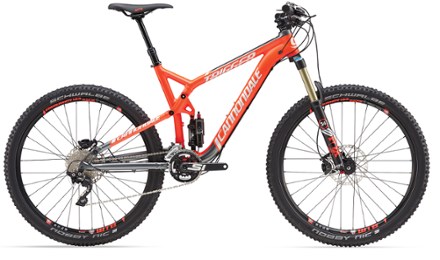

A full-suspension bike with a highly adjustable rear shock and premium components, the Cannondale Trigger 27.5 Alloy 3 mountain bike offers plush handling and serious stoke to dedicated riders.
Wheel Size
27.5 inches
Fork Travel
140 millimeters
Number of Gears
20 gear(s)
- Fox DYAD RT2 rear shock offers 85mm of travel for bumpy climbs and 140mm of bottomless confidence on flowing descents with 2 separate modes
- Switching between the modes also slightly changes the geometry of the bike, giving you a forward and agile angle for climbs and a low, slack and stable position for descents
- Fox 34 Float Performance FIT fork offers 140mm of smooth, responsive travel and precise handling; easy-access lockout and rebound controls are glove-friendly
- Revelation Motion Control damping senses when to flow and when to lock; tunable to user's desired level of efficiency
- Very lightweight aluminum frame features a race-ready, agile design and plenty of stiffness for a responsive ride; super-stiff seatstays and chainstays minimize flex
- 27.5-in. wheels combine the ground-eating power of a 29er with the maneuverability of traditional 26-in. mountain bike wheels
- Oversize 1.5 in. headtube enhances strength, rigidity and steering precision
- Compact crankset is paired with quality Shimano SLX shifters and Shimano Deore and XT Shadow Plus front and rear derailleurs to smoothly shift through the 20 gears
- Cannondale BB30 bottom bracket design increases stiffness for improved power-transfer
- Shimano hydraulic disc brakes supply easy speed management with a 180mm rotor up front, 160mm in the back
- Tubeless-ready WTB rims are outfitted with fast-rolling and versatile Schwalbe Nobby Nic tires for confident trail handling and traction
- NOTE: Specs and images are subject to change based on component availability
Imported.
This bike comes with Coast to Coast Support, which includes:
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
View all Cannondale- 1 year of free adjustments (see more below)
- In-store bike assembly
- Pickup in store or curbside
- Bike experts available at 170+ bike shops
- 20% off shop services
- Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
| Best Use | Mountain Biking |
|---|---|
| Mountain Bike Style | All-mountain |
| Frame | SmartFormed alloy |
| Bike Suspension | Full Suspension |
| Fork | FOX 34 Float Performance Series FIT, 15mm thru-axle |
| Fork Travel | 140 millimeters |
| Rear Shock | Fox DYAD RT2, 140/85mm adjustable travel |
| Crankset | Cannondale Si, 36/26 |
| Bottom Bracket | Cannondale BB30 |
| Shifters | Shimano SLX |
| Front Derailleur | Shimano Deore |
| Rear Derailleur | Shimano XT, Shadow Plus |
| Rear Cogs | Shimano HG-50, 11-36, 10-speed |
| Number of Gears | 20 gear(s) |
| Brake Type | Hydraulic Disc Brake |
| Brakes | Shimano SLX hydraulic disc |
| Brake Levers | Shimano SLX |
| Rims | WTB Frequency Race i23, tubeless ready |
| Front Hub | Formula DC-51, 15mm thru-axle |
| Rear Hub | DC360, 142x12mm |
| Wheel Size | 27.5 inches |
| Tires | Schwalbe Nobby Nic Performance, 27 x 2.35 |
| Tire Width | 2.35 inches |
| Handlebar Shape | Riser Bar |
| Handlebar | Cannondale C3 alloy |
| Stem | Cannondale C3 6061 alloy |
| Seat Post | Trans-X Dropper, 120mm travel |
| Saddle | WTB Silverado |
| Pedals | Sold separately |
| Headset | Tange Seiki 1.5 |
| Chain | KMC X10 |
| Dropper Post | Yes |
| Weight | 30 lbs. 3.2 oz. |
| Bike Weight | Bike weight is based on median size, as sold, or the average of two median sizes. |
| Gender | Unisex |
Cannondale Bikes (892466, 114737)
| S | M | L | XL | |
|---|---|---|---|---|
| Height Range | 5’3”- 5’6” | 5’6” - 5’9 | 5’9” -6’0” | 6’0 - 6’3” |
| Reach | 39.9 | 42.7 | 45.0 | 47.4 |
| Stack | 56.5 | 57.6 | 58.8 | 59.9 |
| Effective Top Tube | 56.6 | 59.8 | 62.4 | 65.2 |
| Seat Tube Center-Top | 43.2 | 45.7 | 48.3 | 50.8 |
| Standover Height | 73.1 | 74.2 | 75.4 | 76.6 |
| Head Tube Length | 9.7 | 11.0 | 12.2 | 13.4 |
| Head Tube Angle (degrees) | 68 | 68 | 68 | 68 |
| Seat Tube Angle (degrees) | 70.1 | 70.5 | 70.7 | 71 |
| Bottom Bracket Height | 35.1 | 35.1 | 35.1 | 35.1 |
| Wheelbase | 111.8 | 115.1 | 117.9 | 120.8 |
| Chainstay | 43.8 | 43.8 | 43.8 | 43.8 |
| Fork Offset | 5 | 5 | 5 | 5 |
Sizing Notes
Measurements are stated in centimeters.
How we measure bikes
- Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
- Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
- Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
- Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
- Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
- Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
- Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
- Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
- Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
- Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
- Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
- Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
