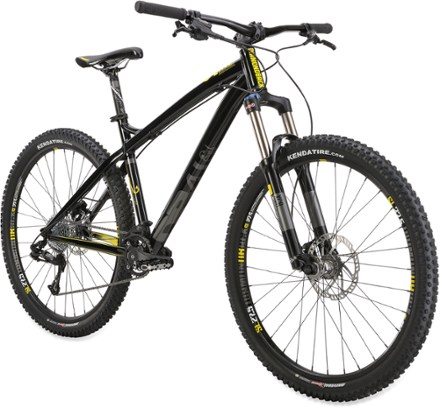

There's nothing more fun than cruising singletrack on a capable hardtail like the Line. Thanks to front suspension, just-right 27.5 in. wheels and light weight, it's the perfect rig for the job.
Wheel Size
27.5 inches
Number of Gears
9 gear(s)
- 27.5 in. wheels are quicker and lighter than 29ers, but offer the same benefits of large-diameter wheels—more speed and better traction
- Aluminum alloy hardtail frame offers lightweight durability; low-slung geometry allows a comfortable riding position
- SR Suntour XCR fork features 120mm travel to smooth out bumps and cushion descents
- SRAM 1 x 9-speed drivetrain with chain guide delivers simple, hassle-free performance
- Tektro Auriga hydraulic disc brakes offer great stopping power
- Diamondback SL-7 double-wall wheels are strong and nimble; Kenda Nevegal Lite tires provide good all-around traction
- NOTE: Specs and images are subject to change based on component availability
Imported.
This bike comes with Coast to Coast Support, which includes:
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
View all Diamondback- 1 year of free adjustments (see more below)
- In-store bike assembly
- Pickup in store or curbside
- Bike experts available at 170+ bike shops
- 20% off shop services
- Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
| Best Use | Mountain Biking |
|---|---|
| Frame | 6061 aluminum |
| Bike Suspension | Front Suspension |
| Fork | SR Suntour XCR, 120mm travel with lockout |
| Crankset | Alloy arm, 32t |
| Bottom Bracket | Sealed cartridge |
| Shifters | SRAM |
| Rear Derailleur | SRAM X5 |
| Rear Cogs | SRAM PG950, 9spd, 11-34t |
| Number of Gears | 9 gear(s) |
| Brakes | Tektro Auriga hydraulic disc |
| Brake Levers | Tektro |
| Rims | Diamondback SL-7 |
| Front Hub | DB SL-7, 32h |
| Rear Hub | DB SL-7, 32h |
| Wheel Size | 27.5 inches |
| Tires | Kenda Nevegal Lite, 27.5 x 2.35 |
| Handlebar Shape | Riser Bar |
| Handlebar | Diamondback Pro Bar |
| Stem | Diamondback Fifty |
| Seat Post | Alloy micro adjust |
| Saddle | DB Sync'r |
| Pedals | Wellgo aluminum platform |
| Headset | FSA No. 42 |
| Chain | KMC Z99 |
| Weight | 31 pounds |
| Bike Weight | Bike weight is based on median size, as sold, or the average of two median sizes. |
| Gender | Unisex |
