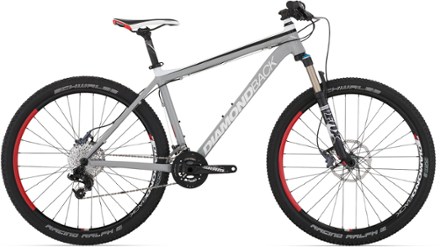

With fast and nimble 27.5 in. wheels and a 100mm Fox Float fork for trail dominance, the Diamondback Axis Pro 27.5 in. mountain bike offers serious riders customizable performance on any trail.
Wheel Size
27.5 inches
Number of Gears
20 gear(s)
- The Diamondback Axis Pro 27.5 mountain bike is quicker and lighter than 29ers, but offers the same benefits of large-diameter wheels—more speed and better traction
- Compared to 26 in. wheels, larger-diameter wheels roll over obstacles more easily so you won't stall going uphill over roots and loose soil
- Fox 32 Float CTD 29 Air fork has 100mm of travel for can be simply tuned between the 3 CTD settings (Climb, Trail, Descend) for efficiency on any gradient
- Fork includes a tapered steerer, magnesium lowers and a stiff 15mm thru axle for precision
- SRAM X7 trigger shifter guides the SRAM X9 rear derailleur quickly and precisely through the 20 gears
- Butted 6061-T6 aluminum frame offers a lightweight and agile feel in the saddle with high durability to take the punishment that rough trails can dish out
- Diamondback SL-7 rims are wrapped with Schwalbe Racing Ralph Evo tires for good all-around traction on the trail
- NOTE: Specs and images are subject to change based on component availability
Imported.
This bike comes with Coast to Coast Support, which includes:
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
View all Diamondback- 1 year of free adjustments (see more below)
- In-store bike assembly
- Pickup in store or curbside
- Bike experts available at 170+ bike shops
- 20% off shop services
- Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
| Best Use | Mountain Biking |
|---|---|
| Frame | 6061 aluminum |
| Bike Suspension | Front Suspension |
| Fork | Fox Float CTD, 100mm travel with lockout and 15mm thru-axle |
| Crankset | SRAM S1000, 36/22 |
| Bottom Bracket | Truvativ GXP sealed bearing |
| Shifters | SRAM X7 |
| Front Derailleur | SRAM X7 |
| Rear Derailleur | SRAM X9 |
| Rear Cogs | SRAM PG-1030, 11-36, 10-speed |
| Number of Gears | 20 gear(s) |
| Brakes | Avid Elixir 3 hydraulic disc |
| Brake Levers | Avid Elixir 3 |
| Rims | Diamondback SL-7 |
| Front Hub | SL-7, 32h |
| Rear Hub | SL-7, 32h |
| Wheel Size | 27.5 inches |
| Tires | Schwalbe Racing Ralph Evo, 27.5 x 2.25 |
| Handlebar Shape | Flat Bar |
| Handlebar | DB alloy |
| Stem | DB alloy |
| Seat Post | DB micro adjust |
| Saddle | DB Race |
| Pedals | Wellgo Alloy platform |
| Headset | FSA No.42 |
| Chain | SRAM PC-1031 |
| Weight | Unavailable |
| Bike Weight | Bike weight is based on median size, as sold, or the average of two median sizes. |
| Gender | Unisex |
