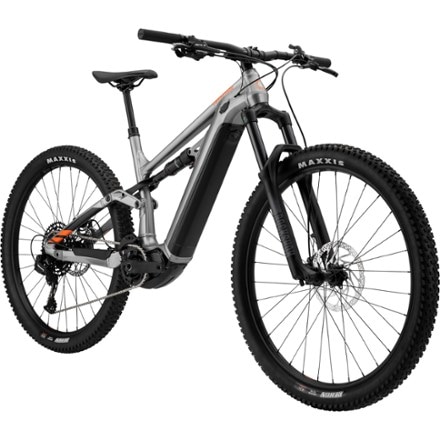

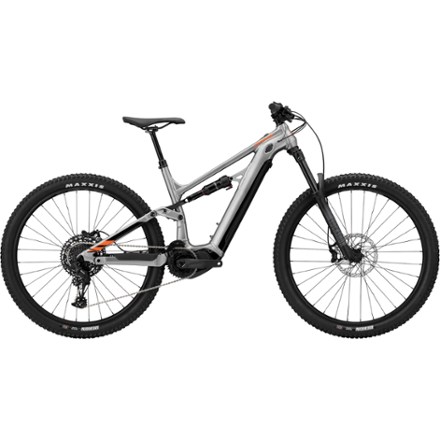

For mountain trail-riding fun, the Cannondale Moterra 4 aluminum electric mountain bike is capable of tackling the steepest descents and hardest climbs—with fully integrated all-mountain e-bike tech.
- Proper trail-riding frame geometry and true trail-ready components make this rig a blast on everything from rolling hills to hardcore singletrack
- Built for the whole mountain, the SmartForm C2 aluminum alloy frame boasts 150 mm of suspension for all-day, all-mountain attack
- SmartForm C2 construction with refined butting and precisely controlled tube shapes showcases exceptional aluminum craftsmanship for incredible performance at a sweet price
- Low center of gravity, progressive geometry and short chainstays put the handling of this Moterra 4 in a class of its own
- Impressively precise, surprisingly agile and incredibly fun on any terrain, its huge gear range gives you the people-power to up your speed
- A range up to 75 mi. and the true all-mountain capability with integrated power and reliability of Shimano STEPS drive system mean you can simply ride anything over and over
- Easy-to-use Shimano switch unit lets you change assist modes without taking hands from the bars, while easy-read display gives speed, battery level, mode and more at a glance
- Shimano EP8 drive unit with Shimano BT-E8036 630 Wh battery
- Big 630 Wh e-tube integrates neatly into the frame and gives you the range for serious adventure; a weather-sealed compartment keeps the battery dry and safe
- Battery is removable for easy in-home charging
- Optimized for e-MTBs, the tuned 4-bar link suspension delivers 150 mm of travel, with a crisp pedaling feel, grippy traction on climbs and supple smoothness on descents
- LockR Pivot thru-axle pivot system creates a rock-solid connection between both sides of the swingarm—no twist, no flex, just instantaneous response
- SRAM SX/NX Eagle 12-speed shifting
- TRP Slate 4-piston disc brakes
- Fast-rolling 29 in. large-volume tires and wide handlebar keep you in control when the trail gets wily
- Pedals not included
- NOTE: Specs and images are subject to change based on component availability
Imported.
- 1 year of free adjustments (see more below)
- In-store bike assembly
- Pickup in store or curbside
- Bike experts available at 170+ bike shops
- An additional year of free adjustments on e-bikes
- 20% off shop services
- Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
New bikes go through a normal break-in period, after which they should be readjusted. All electric bicycles sold at REI include free adjustments for the defined period (one year after purchase date for non-members, or two years for REI Co-op Members)—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation, chain lubrication and e-bike firmware updates. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
UL2849 certified
| Best Use | Mountain Biking |
|---|---|
| E-Bike Classification | Class 1: pedal assist up to 20 mph |
| Motor | Shimano EP8 |
| Motor Type | Mid-Drive |
| Motor Torque (Nm) | 85 Newton meters |
| Battery Type | Lithium Ion |
| Battery Capacity (Wh) | 630 watt hours |
| Battery Removable | Yes |
| Charge Time (hrs) | 4.5 hours |
| Pedal Assist Range | 75 miles |
| Mountain Bike Style | Trail |
| Frame | SmartForm C2 alloy, 150 mm travel, Cannondale Tuned Suspension, removable down tube battery, internal cable routing, 148x12mm thru-axle, post mount brake, tapered head tube |
| Bike Suspension | Full Suspension |
| Fork | RockShox 35 Silver R, 150 mm, Solo Air, 15x110 mm stealth thru-axle, tapered steerer, 51 mm offset |
| Fork Travel | 150 millimeters |
| Rear Shock | RockShox Deluxe Select R, DebonAir |
| Crankset | FSA E-Bike, 165 mm, SRAM Eagle, 34T Steel |
| Shifters | SRAM NX Eagle, 12-speed |
| Rear Derailleur | SRAM SX Eagle |
| Rear Cogs | SRAM PG-1210, SX Eagle, 11-50, 12-speed |
| Number of Gears | 12 gear(s) |
| Brake Type | Hydraulic Disc Brake |
| Brakes | TRP Slate G4 4 Piston hydraulic disc, 200/200 mm rotors |
| Brake Levers | TRP hydraulic disc |
| Rims | WTB STX i25 TCS, 32h, tubeless ready |
| Front Hub | Shimano MT400, 15x110 mm thru-axle |
| Rear Hub | Shimano MT400, 12x148 mm thru-axle |
| Wheel Size | 29 inches |
| Tires | Maxxis Rekon, 29 x 2.6 in., 60 TPI Exo |
| Tire Width | 2.6 inches |
| Handlebar Shape | Riser Bar |
| Handlebar | Cannondale 3 riser, 6061 alloy, 15 mm rise, 8° sweep, 4° rise, 780 mm |
| Stem | Cannondale 3, 3D forged 6061 alloy, 1-1/8 in., 31.8, 7° |
| Seat Post | TranzX dropper, internal routing, 31.6, S: 100 mm; M: 120 mm; L-XL: 130 mm |
| Dropper Post | Yes |
| Saddle | Cannondale Ergo XC |
| Pedals | Not included |
| Headset | Integrated sealed bearing, tapered |
| Chain | Unavailable |
| Weight | 57 pounds |
| Bike Weight | Bike weight is based on median size, as sold, or the average of two median sizes. |
| Gender | Unisex |
