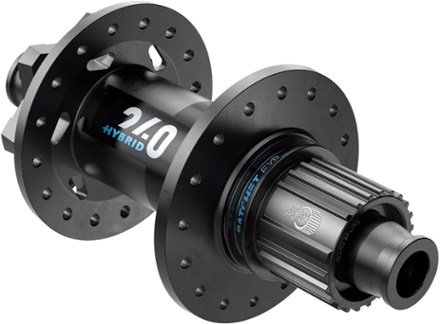

Built for extended electric mountain bike adventures, the DT Swiss 240 Hybrid hub is equipped to handle the higher loads that occur on e-MTBs for all-day reliability.
- Incorporates special components like the DT Swiss Ratchet EXP® OS system with 30 teeth to ensure reliable power transmission from both the rider and the motor to the ground
- Ratchet EXP OS features a bigger bearing and an increased number of teeth compared to previous hybrid freehub systems
- Tedesigned hub shell with larger flanges is specifically adapted for the DT Swiss 2.34 mm spokes, which deliver enhanced resistance to acceleration and braking torques
- The cassette interface of the freehub body is optimized with a specific hardened steel for the higher loads that occur on e-MTBs
- Note: Shimano HG freehubs are compatible with 11-speed MTB as well as 8/9/10-speed cassettes
Imported.
View all DT Swiss Bike Hubs| Best Use | Mountain Biking |
|---|---|
| Hub Position | Rear |
| Hub Brake Design | Rear 12x148MM/MS/6B/32H: 6-bolt Disc Rear 12x148MM/MS/CL/32H: Center Lock Disc Rear 12x148MM/HG/6B/32H: 6-bolt Disc Rear 12x148MM/HG/CL/32H: Center Lock Disc |
| Freehub Standard | Rear 12x148MM/MS/6B/32H: Shimano Micro Spline Rear 12x148MM/MS/CL/32H: Shimano Micro Spline Rear 12x148MM/HG/6B/32H: Shimano Hyperglide (HG) Rear 12x148MM/HG/CL/32H: Shimano Hyperglide (HG) |
| Spoke Interface | J-Bend |
| Axle Type | Thru-Axle |
| Axle Spacing | 12 x 148 mm Thru-Axle (Boost) |
| Speeds | Rear 12x148MM/MS/6B/32H: 12-speed Rear 12x148MM/MS/CL/32H: 12-speed Rear 12x148MM/HG/6B/32H: 11-speed Rear 12x148MM/HG/CL/32H: 11-speed |
| Spoke Hole Count | 32 |
| Bearing Type | Cartridge |
| Rear Hub Gearing | Cassette |
| Designed for E-Bikes | Yes |
| Weight | Rear 12x148MM/MS/6B/32H: 316 grams Rear 12x148MM/MS/CL/32H: 296 grams Rear 12x148MM/HG/6B/32H: 335 grams Rear 12x148MM/HG/CL/32H: 315 grams |
| Material(s) | Aluminum/steel |
