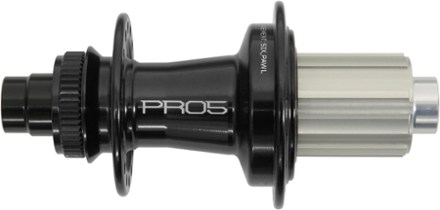

Building off over 30 years of hub manufacturing experience, the Hope Pro 5 rear hub is engineered to improve load capacity, longevity, strength and stiffness—all while reducing drag.
- Improved sealing to stop dirt ingress and to reduce drag; labyrinth seals have zero drag for incredible freewheeling performance
- Wire-cut pawls from high-strength steel for maximum strength; designed to increase longevity and load capacity with a reduction of drag
- Hub shell is machined from forged 2014 T6 aluminum billet; profile is designed for increased stiffness without adding weight
- Increased engagement to 108 with a new offset 6-pawl freehub design
- Fully serviceable and rebuildable with simple tools
- End spacers (not included) can be easily swapped to suit different frame and axle standards
Imported.
View all Hope Bike Hubs| Best Use | Cycling |
|---|---|
| Hub Position | Rear |
| Hub Brake Design | Rear 12x148MM/XD/6B/32H: 6-bolt Disc Rear 12x142MM/HG/CL/24H: Center Lock Disc Rear 12x142MM/HG/CL/28H: Center Lock Disc Rear 12x142MM/XDR/CL/24H: Center Lock Disc Rear 12x148MM/XD/6B/28H: 6-bolt Disc Rear 12x148MM/MS/6B/28H: 6-bolt Disc Rear 12x148MM/MS/6B/32H: 6-bolt Disc Rear 12x157MM/XD/6B/32H: 6-bolt Disc |
| Freehub Standard | Rear 12x148MM/XD/6B/32H: SRAM XD Rear 12x142MM/HG/CL/24H: Shimano Hyperglide (HG) Rear 12x142MM/HG/CL/28H: Shimano Hyperglide (HG) Rear 12x142MM/XDR/CL/24H: SRAM XDR Rear 12x148MM/XD/6B/28H: SRAM XD Rear 12x148MM/MS/6B/28H: Shimano Micro Spline Rear 12x148MM/MS/6B/32H: Shimano Micro Spline Rear 12x157MM/XD/6B/32H: SRAM XD |
| Spoke Interface | J-Bend |
| Axle Type | Thru-Axle |
| Axle Spacing | Rear 12x148MM/XD/6B/32H: 12 x 148 mm Thru-Axle (Boost) Rear 12x142MM/HG/CL/24H: 12 x 142 mm Thru-Axle Rear 12x142MM/HG/CL/28H: 12 x 142 mm Thru-Axle Rear 12x142MM/XDR/CL/24H: 12 x 142 mm Thru-Axle Rear 12x148MM/XD/6B/28H: 12 x 148 mm Thru-Axle (Boost) Rear 12x148MM/MS/6B/28H: 12 x 148 mm Thru-Axle (Boost) Rear 12x148MM/MS/6B/32H: 12 x 148 mm Thru-Axle (Boost) Rear 12x157MM/XD/6B/32H: 12 x 157 mm Thru-Axle |
| Spoke Hole Count | Rear 12x148MM/XD/6B/32H: 32 Rear 12x142MM/HG/CL/24H: 24 Rear 12x142MM/HG/CL/28H: 28 Rear 12x142MM/XDR/CL/24H: 24 Rear 12x148MM/XD/6B/28H: 28 Rear 12x148MM/MS/6B/28H: 28 Rear 12x148MM/MS/6B/32H: 32 Rear 12x157MM/XD/6B/32H: 32 |
| Bearing Type | Cartridge |
| Rear Hub Gearing | Cassette |
| Weight | Rear 12x148MM/XD/6B/32H: 318 grams Rear 12x142MM/HG/CL/24H: 313 grams Rear 12x142MM/HG/CL/28H: 313 grams Rear 12x142MM/XDR/CL/24H: 313 grams Rear 12x148MM/XD/6B/28H: 318 grams Rear 12x148MM/MS/6B/28H: 318 grams Rear 12x148MM/MS/6B/32H: 318 grams Rear 12x157MM/XD/6B/32H: 326 grams |
| Material(s) | 2014 T6 aluminum |
