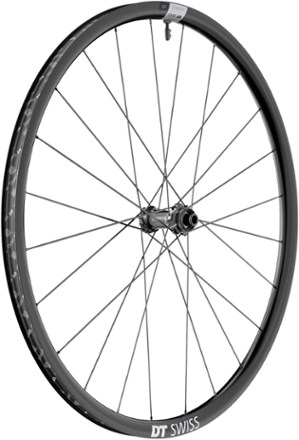

Get the most out of your next off-pavement adventure with the DT Swiss G 1800 Spline CL wheel. It's meticulously developed with carefully selected components to offer comfort on gravel rides.
- With its 24 mm inner width and compatibility with wide knobby tires to up 53 mm, this sleeved aluminum rim is an excellent choice for comfortable off-road riding
- Hooked rim design supports affixation of the tire bead
- 25 mm rim height
- DT aero comp® wide straight-pull spokes are strong and durable thanks to the manufacturing process—they're ideal for absorbing the impacts that come with leaving the road
- With the integration of the Ratchet LN system, the 370 hub offers enhanced reliability and ensures a smooth engagement when properly serviced
- Ratchet LN system achieves enhanced reliability by enabling the simultaneous engagement of each tooth on the 2 ratchet rings
Made in USA.
View all DT Swiss Road Bike Wheels| Best Use | Gravel Cycling |
|---|---|
| Wheel Type | Front 700C (12X100): Front Wheel Rear 700C (12X142) Shimano: Rear Wheel Rear 700C (12X142) XDR: Rear Wheel Front 650B (12X100): Front Wheel Rear 650B (12X142) Shimano: Rear Wheel Rear 650B (12X142) XDR: Rear Wheel |
| Freehub Standard | Front 700C (12X100): Not Applicable Rear 700C (12X142) Shimano: Shimano Hyperglide (HG) Rear 700C (12X142) XDR: SRAM XDR Front 650B (12X100): Not Applicable Rear 650B (12X142) Shimano: Shimano Hyperglide (HG) Rear 650B (12X142) XDR: SRAM XDR |
| Tire Type | Tubeless Ready |
| Hub Brake Design | Center Lock Disc |
| Front Axle | Front 700C (12X100): 12 x 100 mm Thru-Axle Rear 700C (12X142) Shimano: Not Applicable Rear 700C (12X142) XDR: Not Applicable Front 650B (12X100): 12 x 100 mm Thru-Axle Rear 650B (12X142) Shimano: Not Applicable Rear 650B (12X142) XDR: Not Applicable |
| Front Spoke Count | Front 700C (12X100): 24 Rear 700C (12X142) Shimano: Not Applicable Rear 700C (12X142) XDR: Not Applicable Front 650B (12X100): 24 Rear 650B (12X142) Shimano: Not Applicable Rear 650B (12X142) XDR: Not Applicable |
| Rear Axle | Front 700C (12X100): Not Applicable Rear 700C (12X142) Shimano: 12 x 142 mm Thru-Axle Rear 700C (12X142) XDR: 12 x 142 mm Thru-Axle Front 650B (12X100): Not Applicable Rear 650B (12X142) Shimano: 12 x 142 mm Thru-Axle Rear 650B (12X142) XDR: 12 x 142 mm Thru-Axle |
| Rear Spoke Count | Front 700C (12X100): Not Applicable Rear 700C (12X142) Shimano: 24 Rear 700C (12X142) XDR: 24 Front 650B (12X100): Not Applicable Rear 650B (12X142) Shimano: 24 Rear 650B (12X142) XDR: 24 |
| Wheel Size | Front 700C (12X100): 700c Rear 700C (12X142) Shimano: 700c Rear 700C (12X142) XDR: 700c Front 650B (12X100): 650b Rear 650B (12X142) Shimano: 650b Rear 650B (12X142) XDR: 650b |
| Internal Rim Width | 24 millimeters |
| Tubeless Compatible | Yes |
| Rim Material | Aluminum |
| Weight | Front 700C (12X100): 864 grams Rear 700C (12X142) Shimano: 994 grams Rear 700C (12X142) XDR: 971 grams Front 650B (12X100): 857 grams Rear 650B (12X142) Shimano: 986 grams Rear 650B (12X142) XDR: 963 grams |
| Kit Includes | Front 700C (12X100): Front wheel, tubeless tape 27 mm, black TL valve 18-25 mm Rear 700C (12X142) Shimano: Rear wheel, tubeless tape 27 mm, black TL valve 18-25 mm Rear 700C (12X142) XDR: Rear wheel, tubeless tape 27 mm, black TL valve 18-25 mm Front 650B (12X100): Front wheel, tubeless tape 27 mm, black TL valve 18-25 mm Rear 650B (12X142) Shimano: Rear wheel, tubeless tape 27 mm, black TL valve 18-25 mm Rear 650B (12X142) XDR: Rear wheel, tubeless tape 27 mm, black TL valve 18-25 mm |
