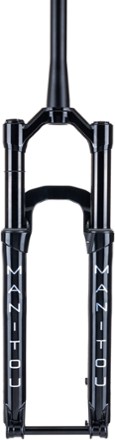

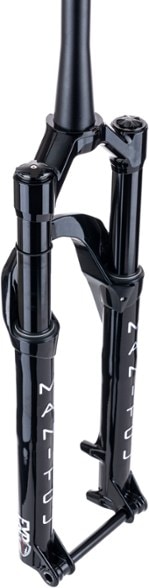

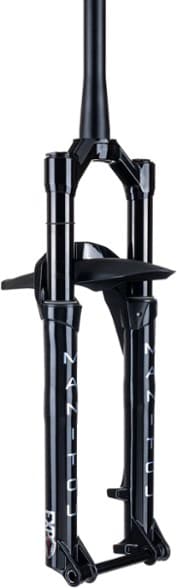

Lightweight and stiff, the Manitou Mattoc Expert suspension fork can be tuned to your liking, so your on-trail experience can be smoother and more enjoyable, no matter what terrain you encounter.
10% Reward $80
$30Bonus Card
This item pays for membership!
$80
10% Reward
on this and every eligible full-price item*
+
$30
Bonus Card
valid for 30 days after joining*
=
$110
Value
Start earning when you buy a $30 lifetime membership.
Keep shopping
- Expert Air Spring allows for internal travel adjustments with no added parts and gives riders of different weights the same initial stroke feel
- Air Spring system has a balancing valve to equalize the positive and negative air chambers during the air fill process for a consistent feel without flat or dead spots
- Travel spacers account for negative air volume change, so the 110 mm fork has the same initial stroke feel as the 150 mm
- Incremental Volume Adjust (IVA) modifies the volume in the positive air chamber with self-contained spacers dictating the position of the IVA piston
- IVA allows the main air spring ramp-up to be tuned to rider weight, style and conditions without the need for additional parts
- 3-position compression (Open, Trail, Lock) with Open Mode low-speed compression adjustment
- VTT-6P system with a single external compression adjuster simultaneously adjusts high-speed and low-speed damping characteristics
- Adjuster features a fixed shim stack and a secondary shim stack that is preloaded by the external adjuster for a wide tuning range
- This wide tuning range combines the benefits of a low-speed platform and high-speed progressive tune to suit any terrain
- TSR (Trail Side Relief) casting bleed screws allow you to release casting pressure from the fork to improve overall fork feel and small bump compliance
- 34 mm stanchions are made with 7000 series butted wall aluminum
- E-bike compatible
- Approximate weight: 1,760 g
Imported.
View all Manitou Bike Suspension Forks| Best Use | Mountain Biking |
|---|---|
| Fork Spring Type | Air Spring |
| Fork Brake Type | Disc Brake |
| Fork Brake Mount | Post Mount |
| Max Rotor Diameter | 203 millimeters |
| Crown Race Diameter | 40 millimeters |
| Stanchion Diameter | 34 millimeters |
| Steerer Tube Diameter | 1.5 in. Tapered |
| Steerer Tube Length | 250 millimeters |
| Axle to Crown Length | 29/120 MM/15 X 110 MM/44 MM: 532 millimeters 29/140 MM/15 X 110 MM/44 MM: 552 millimeters |
| Max Tire Width | 67 millimeters |
| Wheel Size | 29 inches |
| Fork Travel | 29/120 MM/15 X 110 MM/44 MM: 120 millimeters 29/140 MM/15 X 110 MM/44 MM: 140 millimeters |
| Fork Offset | 44 millimeters |
| Front Axle | 15 x 110 mm Thru-Axle (Boost) |
| Weight | 1,760 grams |
| Material(s) | Aluminum |
