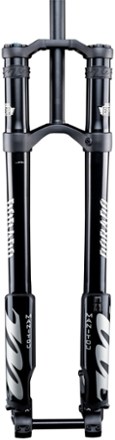

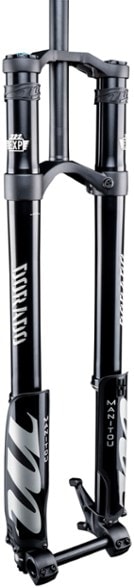

Whether you're looking to cut seconds off the splits, lap the local park or get sendy in the back hills, the Manitou Dorado Expert suspension fork is ready to take on the gnarliest conditions.
10% Reward $155
$30Bonus Card
This item pays for membership!
$155
10% Reward
on this and every eligible full-price item*
+
$30
Bonus Card
valid for 30 days after joining*
=
$185
Value
Start earning when you buy a $30 lifetime membership.
Keep shopping
- Stiff 37 mm chassis offers improved ride quality
- Inverted design provides an incredibly smooth and consistent feel due to constant lubrication of the bushings and seals
- Inverted design also provides a major increase in fore-aft stiffness compared to traditional forks while maintaining torsional compliance for more control over rough terrain
- Dorado Air Spring system contains a unique balancing valve that equalizes the positive and negative air chambers during the air fill process
- Air Spring system provides a consistent feel without flat or dead spots and allows you to easily adjust the travel from 180, 190 and 203 mm, without needing any spare parts
- IVA (Incremental Volume Adjust) modifies the volume in the positive air chamber with self-contained spacers dictating the position of the IVA piston and your volume amount
- TPC+ Damper has increased oil volume and improved flow paths for improved bump compliance and increased consistency
- TPC+ features 2 compression pistons, a hydraulic bottom out and a spring-backed IFP for a smooth and predictable feel for every impact
- TSR bleed screws allow you to release excess pressures built up in the outer legs of your fork to keep the fork smooth and supple all day long
- 6000 series aluminum stanchions with 6000 series aluminum upper tubes
- Aluminum upper crown, lower crown and steerer
- Adjustments include: high-speed compression, low-speed compression and low-speed rebound
- E-bike compatible
- Approximate weight: 3,120 g
Imported.
View all Manitou Bike Suspension Forks| Best Use | Mountain Biking |
|---|---|
| Fork Spring Type | Air Spring |
| Fork Brake Type | Disc Brake |
| Fork Brake Mount | Post Mount |
| Max Rotor Diameter | 223 millimeters |
| Crown Race Diameter | 30 millimeters |
| Stanchion Diameter | 37 millimeters |
| Steerer Tube Diameter | 1-1/8 in. Straight |
| Steerer Tube Length | 251 millimeters |
| Axle to Crown Length | 27.5/203 MM/20 X 110 MM/47 MM: 582 millimeters |
| Max Tire Width | 67 millimeters |
| Wheel Size | 27.5/203 MM/20 X 110 MM/47 MM: 27.5 inches |
| Fork Travel | 203 millimeters |
| Fork Offset | 27.5/203 MM/20 X 110 MM/47 MM: 47 millimeters |
| Front Axle | 20 x 110 mm Thru-Axle |
| Weight | 3,120 grams |
| Material(s) | Aluminum |
