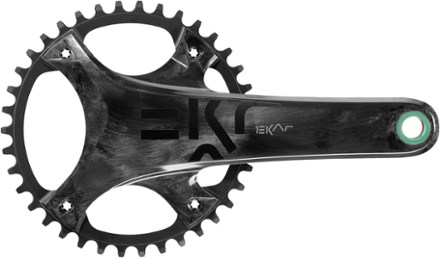

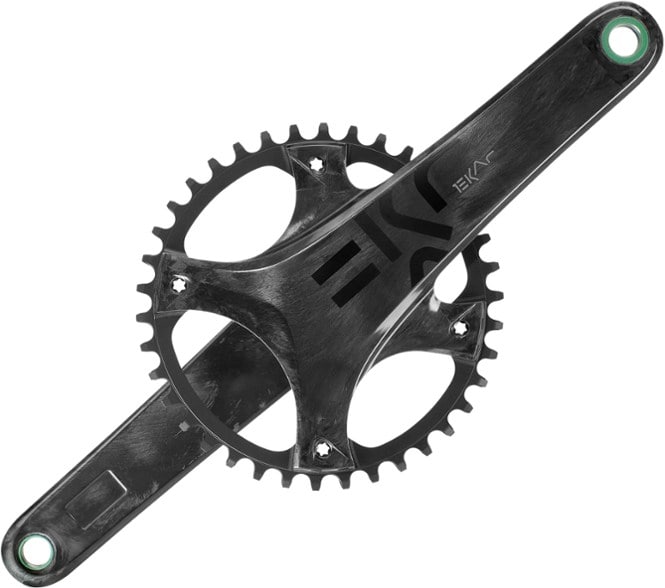

Lightweight and efficient, the 1 x 13-speed Campagnolo EKAR crankset is designed to keep you speedy while riding and racing on gravel.
10% Reward $35
$30Bonus Card
This item pays for membership!
$35
10% Reward
on this and every eligible full-price item*
+
$30
Bonus Card
valid for 30 days after joining*
=
$65
Value
Keep shopping

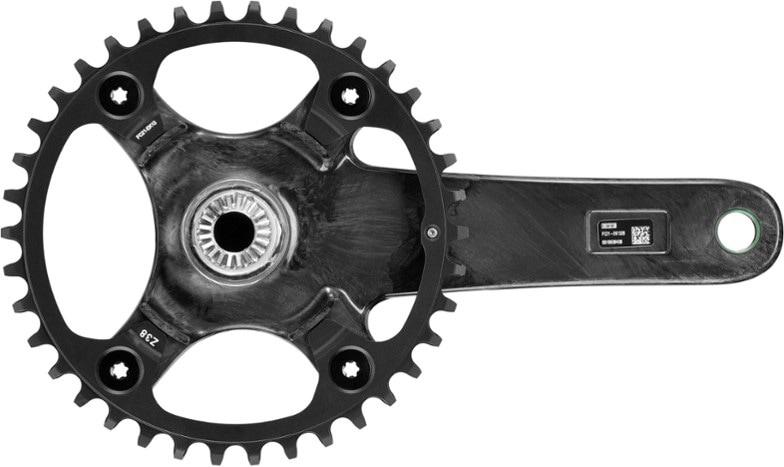

- 2-piece crank features a strong and durable 630-grade steel alloy axle mated to a lightweight carbon fiber spider and unidirectional carbon fiber arm
- Must be used with a Campagnolo ProTech bottom bracket (not included)
- Chainring features a narrow-wide tooth design for efficient drive and maximum chain security
- Oversize stainless-steel bearings sit on the crank, fixed on the semi-axles, for maximum smoothness and strength
- Bearings are easily accessible for inspection and maintenance without the requirement to extract the cups
- Light, strong 7075 aluminum rings are easily interchangeable—you can simply unbolt them from the 4 spider arms with no requirement for crank disassembly
- Narrow 145.5 mm Q-factor makes for a comfortable, efficient pedaling style
- Multiple ring options: Adventure (38T); Pure Gravel (40T), Fast Gravel (42T)
- Weighs 615 g in 172.5 mm length with 38-tooth chainring
Imported.
View all Campagnolo Bike Cranksets| Best Use | Gravel Cycling |
|---|---|
| Material(s) | Carbon/alloy |
| Weight | 615 grams |
| Crankarm Length | 165 MM 40 T: 165 millimeters 170 MM 38 T: 170 millimeters 170 MM 40 T: 170 millimeters 172.5 MM 38 T: 172.5 millimeters 172.5 MM 40 T: 172.5 millimeters 172.5 MM 42 T: 172.5 millimeters 175 MM 38 T: 175 millimeters 175 MM 40 T: 175 millimeters |
| Q Factor | 145.5 millimeters |
| Bottom Bracket Compatibility | Campagnolo Ultra-Torque (ProTech) |
| Bolt Circle Diameter | 123 millimeters |
| Chainring Sizes | 165 MM 40 T: 40T 170 MM 38 T: 38T 170 MM 40 T: 40T 172.5 MM 38 T: 38T 172.5 MM 40 T: 40T 172.5 MM 42 T: 42T 175 MM 38 T: 38T 175 MM 40 T: 40T |
| Included Components | Chainring |
| Speeds | 13-speed |
| Chainring Mount | 4-bolt Asymmetric |
| Number of Chainrings | 1 Chainring |
| Spindle Diameter | 25 millimeters |
| Crankarm Material | Carbon |
