Stan's NoTubes  Arch S2 6B Wheel

$225.00to $325.00
Color: Black
please select a Size
$325.00
$225.00
Quantity
Select size for delivery dates
Shipping restrictions may apply.

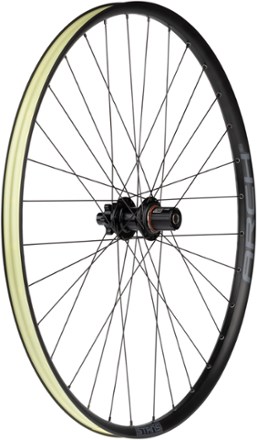

With a low-profile rim shape and durable E-sync hub, the reliable Arch S2 6B wheel from Stan's NoTubes is built to handle aggressive climbs and rough descents—in a range of riding conditions.

Features

  • Versatile 28 mm internal rim width optimized for 2.2–2.5 in. tires
  • Reinforced spoke bed and eyeletted spoke holes strengthen the 6061 aluminum Arch S2 rim, along with a reliable sleeved joint for a tough overall wheel
  • Patented Bead Socket Technology (BST) low-profile rim shape provides easy tubeless inflation and a reliable seal
  • Rolls on E-sync hubs built to handle abuse and the added forces of modern trail bikes and heavier e-bikes; hubs offer fast 8.18° engagement with reinforced pawls
  • Enduro bearings with double-row freehub bearing and chromoly axle to increase maximum torque capacity
  • Tubeless tape installed, additional valve stems required (not included)
  • 230 lbs. (105 kg) maximum rider weight

Made in USA.

View all Stan's NoTubes Mountain Bike Wheels

Technical Specs

Best Use

Mountain Biking

Wheel Type

Rear 27.5 Boost XD: Rear Wheel

Front 27.5 (15X100): Front Wheel

Front 27.5 Boost: Front Wheel

Rear 29 (12X142) Shimano: Rear Wheel

Rear 29 (12X142) XD: Rear Wheel

Rear 29 Boost Shimano: Rear Wheel

Front 29 (15X100): Front Wheel

Front 29 Boost: Front Wheel

Freehub Standard

Rear 27.5 Boost XD: SRAM XD

Front 27.5 (15X100): Not Applicable

Front 27.5 Boost: Not Applicable

Rear 29 (12X142) Shimano: Shimano Hyperglide (HG)

Rear 29 (12X142) XD: SRAM XD

Rear 29 Boost Shimano: Shimano Hyperglide (HG)

Front 29 (15X100): Not Applicable

Front 29 Boost: Not Applicable

Tire Type

Tubeless Ready

Hub Brake Design

6-bolt Disc

Front Axle

Rear 27.5 Boost XD: Not Applicable

Front 27.5 (15X100): 15 x 100 mm Thru-Axle

Front 27.5 Boost: 15 x 110 mm Thru-Axle (Boost)

Rear 29 (12X142) Shimano: Not Applicable

Rear 29 (12X142) XD: Not Applicable

Rear 29 Boost Shimano: Not Applicable

Front 29 (15X100): 15 x 100 mm Thru-Axle

Front 29 Boost: 15 x 110 mm Thru-Axle (Boost)

Front Spoke Count

Rear 27.5 Boost XD: Not Applicable

Front 27.5 (15X100): 32

Front 27.5 Boost: 32

Rear 29 (12X142) Shimano: Not Applicable

Rear 29 (12X142) XD: Not Applicable

Rear 29 Boost Shimano: Not Applicable

Front 29 (15X100): 32

Front 29 Boost: 32

Rear Axle

Rear 27.5 Boost XD: 12 x 148 mm Thru-Axle (Boost)

Front 27.5 (15X100): Not Applicable

Front 27.5 Boost: Not Applicable

Rear 29 (12X142) Shimano: 12 x 142 mm Thru-Axle

Rear 29 (12X142) XD: 12 x 142 mm Thru-Axle

Rear 29 Boost Shimano: 12 x 148 mm Thru-Axle (Boost)

Front 29 (15X100): Not Applicable

Front 29 Boost: Not Applicable

Rear Spoke Count

Rear 27.5 Boost XD: 32

Front 27.5 (15X100): Not Applicable

Front 27.5 Boost: Not Applicable

Rear 29 (12X142) Shimano: 32

Rear 29 (12X142) XD: 32

Rear 29 Boost Shimano: 32

Front 29 (15X100): Not Applicable

Front 29 Boost: Not Applicable

Wheel Size

Rear 27.5 Boost XD: 27.5 inches

Front 27.5 (15X100): 27.5 inches

Front 27.5 Boost: 27.5 inches

Rear 29 (12X142) Shimano: 29 inches

Rear 29 (12X142) XD: 29 inches

Rear 29 Boost Shimano: 29 inches

Front 29 (15X100): 29 inches

Front 29 Boost: 29 inches

Internal Rim Width

28 millimeters

Tubeless Compatible

Yes

Rim Material

Aluminum

Weight

Rear 27.5 Boost XD: 1046 grams

Front 27.5 (15X100): 890 grams

Front 27.5 Boost: 890 grams

Rear 29 (12X142) Shimano: 1093 grams

Rear 29 (12X142) XD: 1093 grams

Rear 29 Boost Shimano: 1093 grams

Front 29 (15X100): 937 grams

Front 29 Boost: 937 grams

Kit Includes

Rear 27.5 Boost XD: Rear wheel, tubeless tape installed

Front 27.5 (15X100): Front wheel, tubeless tape installed

Front 27.5 Boost: Front wheel, tubeless tape installed

Rear 29 (12X142) Shimano: Rear wheel, tubeless tape installed

Rear 29 (12X142) XD: Rear wheel, tubeless tape installed

Rear 29 Boost Shimano: Rear wheel, tubeless tape installed

Front 29 (15X100): Front wheel, tubeless tape installed

Front 29 Boost: Front wheel, tubeless tape installed
