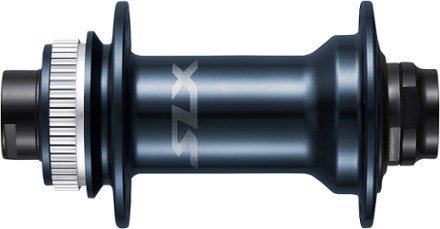

Perfect for custom MTB wheel builds when you want a hub that delivers smooth, reliable trail performance, the Shimano SLX disc brake front hub features a simple setup and durable design.
- Center Lock system makes disc brake rotor installation easy with a spline mount and lockring
- Toolless 15 mm skewer system optimizes rigidity and weight
- Labyrinth and contact sealing keeps dirt out and keeps the hub running smoothly
Imported.
View the Shimano SLX Product LineView all Shimano Bike Hubs| Best Use | Mountain Biking |
|---|---|
| Hub Position | Front |
| Hub Brake Design | Center Lock Disc |
| Freehub Standard | Not Applicable |
| Spoke Interface | J-Bend |
| Axle Type | Thru-Axle |
| Axle Spacing | Front 15x100MM/CL/28H: 15 x 100 mm Thru-Axle Front 15x100MM/CL/32H: 15 x 100 mm Thru-Axle Front 15x110MM/CL/28H: 15 x 110 mm Thru-Axle (Boost) Front 15x110MM/CL/32H: 15 x 110 mm Thru-Axle (Boost) |
| Spoke Hole Count | Front 15x100MM/CL/28H: 28 Front 15x100MM/CL/32H: 32 Front 15x110MM/CL/28H: 28 Front 15x110MM/CL/32H: 32 |
| Bearing Type | Cup and Cone |
| Weight | Front 15x100MM/CL/28H: 141 grams Front 15x100MM/CL/32H: 141 grams Front 15x110MM/CL/28H: 147 grams Front 15x110MM/CL/32H: 147 grams |
| Material(s) | Anodized aluminum |
