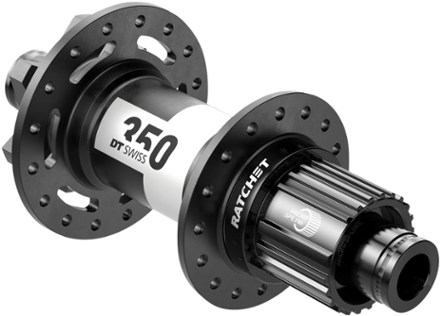

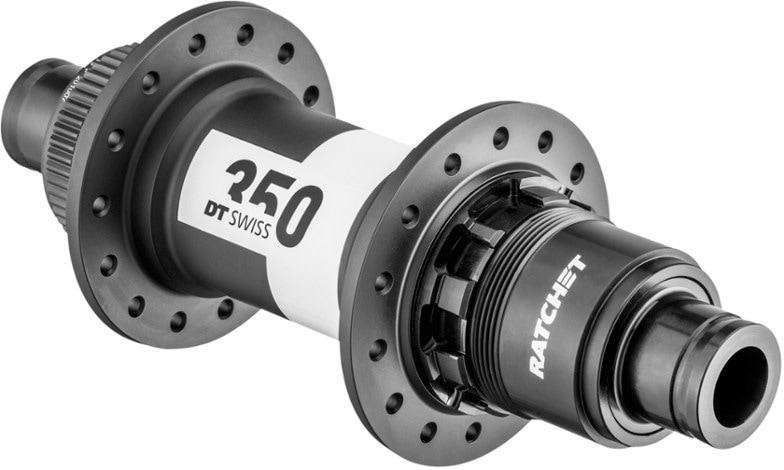

Reliability, versatility and simplicity unite in the DT Swiss 350 Rear Hub. Thanks to the proven freehub Ratchet System, the 350 hub is a dependable partner for every adventure.
- 36-tooth ratchets ensure direct power transmission
- Sophisticated-yet-simple construction of the hub allows a low weight while providing outstanding rolling performance
- Plug-in hub construction allows for quick, tool-free maintenance
- Shape of the end caps facilitates disassembly
- 36 points of engagement offer a great balance of performance and weight savings
- Rear hubs featuring the SRAM XD freehub standard are compatible with both 11- and 12-speed cassettes
Imported.
View all DT Swiss Bike Hubs| Best Use | Mountain Biking |
|---|---|
| Hub Position | Rear |
| Hub Brake Design | Rear 12x148MM/XD/6B/32H: 6-bolt Disc Rear 12x142MM/XD/6B/28H: 6-bolt Disc Rear 12x142MM/XD/CL/28H: Center Lock Disc Rear 12x142MM/HG/6B/28H: 6-bolt Disc Rear 12x142MM/HG/CL/28H: Center Lock Disc Rear 12x148MM/XD/6B/28H: 6-bolt Disc Rear 12x148MM/XD/CL/28H: Center Lock Disc Rear 12x148MM/XD/CL/32H: Center Lock Disc Rear 12x148MM/MS/6B/28H: 6-bolt Disc Rear 12x148MM/MS/6B/32H: 6-bolt Disc Rear 12x148MM/MS/CL/28H: Center Lock Disc Rear 12x148MM/MS/CL/32H: Center Lock Disc Rear 12x148MM/HG/6B/28H: 6-bolt Disc Rear 12x148MM/HG/6B/32H: 6-bolt Disc Rear 12x148MM/HG/CL/28H: Center Lock Disc Rear 12x148MM/HG/CL/32H: Center Lock Disc Rear 12x157MM/MS/6B/32H: 6-bolt Disc |
| Freehub Standard | Rear 12x148MM/XD/6B/32H: SRAM XD Rear 12x142MM/XD/6B/28H: SRAM XD Rear 12x142MM/XD/CL/28H: SRAM XD Rear 12x142MM/HG/6B/28H: Shimano Hyperglide (HG) Rear 12x142MM/HG/CL/28H: Shimano Hyperglide (HG) Rear 12x148MM/XD/6B/28H: SRAM XD Rear 12x148MM/XD/CL/28H: SRAM XD Rear 12x148MM/XD/CL/32H: SRAM XD Rear 12x148MM/MS/6B/28H: Shimano Micro Spline Rear 12x148MM/MS/6B/32H: Shimano Micro Spline Rear 12x148MM/MS/CL/28H: Shimano Micro Spline Rear 12x148MM/MS/CL/32H: Shimano Micro Spline Rear 12x148MM/HG/6B/28H: Shimano Hyperglide (HG) Rear 12x148MM/HG/6B/32H: Shimano Hyperglide (HG) Rear 12x148MM/HG/CL/28H: Shimano Hyperglide (HG) Rear 12x148MM/HG/CL/32H: Shimano Hyperglide (HG) Rear 12x157MM/MS/6B/32H: Shimano Micro Spline |
| Spoke Interface | J-Bend |
| Axle Type | Thru-Axle |
| Axle Spacing | Rear 12x148MM/XD/6B/32H: 12 x 148 mm Thru-Axle (Boost) Rear 12x142MM/XD/6B/28H: 12 x 142 mm Thru-Axle Rear 12x142MM/XD/CL/28H: 12 x 142 mm Thru-Axle Rear 12x142MM/HG/6B/28H: 12 x 142 mm Thru-Axle Rear 12x142MM/HG/CL/28H: 12 x 142 mm Thru-Axle Rear 12x148MM/XD/6B/28H: 12 x 148 mm Thru-Axle (Boost) Rear 12x148MM/XD/CL/28H: 12 x 148 mm Thru-Axle (Boost) Rear 12x148MM/XD/CL/32H: 12 x 148 mm Thru-Axle (Boost) Rear 12x148MM/MS/6B/28H: 12 x 148 mm Thru-Axle (Boost) Rear 12x148MM/MS/6B/32H: 12 x 148 mm Thru-Axle (Boost) Rear 12x148MM/MS/CL/28H: 12 x 148 mm Thru-Axle (Boost) Rear 12x148MM/MS/CL/32H: 12 x 148 mm Thru-Axle (Boost) Rear 12x148MM/HG/6B/28H: 12 x 148 mm Thru-Axle (Boost) Rear 12x148MM/HG/6B/32H: 12 x 148 mm Thru-Axle (Boost) Rear 12x148MM/HG/CL/28H: 12 x 148 mm Thru-Axle (Boost) Rear 12x148MM/HG/CL/32H: 12 x 148 mm Thru-Axle (Boost) Rear 12x157MM/MS/6B/32H: 12 x 157 mm Thru-Axle |
| Speeds | Rear 12x148MM/XD/6B/32H: 12-speed Rear 12x142MM/XD/6B/28H: 12-speed Rear 12x142MM/XD/CL/28H: 12-speed Rear 12x142MM/HG/6B/28H: 11-speed Rear 12x142MM/HG/CL/28H: 11-speed Rear 12x148MM/XD/6B/28H: 12-speed Rear 12x148MM/XD/CL/28H: 12-speed Rear 12x148MM/XD/CL/32H: 12-speed Rear 12x148MM/MS/6B/28H: 12-speed Rear 12x148MM/MS/6B/32H: 12-speed Rear 12x148MM/MS/CL/28H: 12-speed Rear 12x148MM/MS/CL/32H: 12-speed Rear 12x148MM/HG/6B/28H: 11-speed Rear 12x148MM/HG/6B/32H: 11-speed Rear 12x148MM/HG/CL/28H: 11-speed Rear 12x148MM/HG/CL/32H: 11-speed Rear 12x157MM/MS/6B/32H: 12-speed |
| Spoke Hole Count | Rear 12x148MM/XD/6B/32H: 32 Rear 12x142MM/XD/6B/28H: 28 Rear 12x142MM/XD/CL/28H: 28 Rear 12x142MM/HG/6B/28H: 28 Rear 12x142MM/HG/CL/28H: 28 Rear 12x148MM/XD/6B/28H: 28 Rear 12x148MM/XD/CL/28H: 28 Rear 12x148MM/XD/CL/32H: 32 Rear 12x148MM/MS/6B/28H: 28 Rear 12x148MM/MS/6B/32H: 32 Rear 12x148MM/MS/CL/28H: 28 Rear 12x148MM/MS/CL/32H: 32 Rear 12x148MM/HG/6B/28H: 28 Rear 12x148MM/HG/6B/32H: 32 Rear 12x148MM/HG/CL/28H: 28 Rear 12x148MM/HG/CL/32H: 32 Rear 12x157MM/MS/6B/32H: 32 |
| Bearing Type | Cartridge |
| Rear Hub Gearing | Cassette |
| Weight | Rear 12x148MM/XD/6B/32H: 269 grams Rear 12x142MM/XD/6B/28H: 263 grams Rear 12x142MM/XD/CL/28H: 243 grams Rear 12x142MM/HG/6B/28H: 273 grams Rear 12x142MM/HG/CL/28H: 253 grams Rear 12x148MM/XD/6B/28H: 269 grams Rear 12x148MM/XD/CL/28H: 248 grams Rear 12x148MM/XD/CL/32H: 248 grams Rear 12x148MM/MS/6B/28H: 277 grams Rear 12x148MM/MS/6B/32H: 277 grams Rear 12x148MM/MS/CL/28H: 257 grams Rear 12x148MM/MS/CL/32H: 257 grams Rear 12x148MM/HG/6B/28H: 279 grams Rear 12x148MM/HG/6B/32H: 279 grams Rear 12x148MM/HG/CL/28H: 259 grams Rear 12x148MM/HG/CL/32H: 259 grams Rear 12x157MM/MS/6B/32H: 285 grams |
| Material(s) | Aluminum |
| Rear Spoke Count | Rear 12x148MM/XD/6B/32H: 32 Rear 12x142MM/XD/6B/28H: 28 Rear 12x142MM/XD/CL/28H: 28 Rear 12x142MM/HG/6B/28H: 28 Rear 12x142MM/HG/CL/28H: 28 Rear 12x148MM/XD/6B/28H: 28 Rear 12x148MM/XD/CL/28H: 28 Rear 12x148MM/XD/CL/32H: 32 Rear 12x148MM/MS/6B/28H: 28 Rear 12x148MM/MS/6B/32H: 32 Rear 12x148MM/MS/CL/28H: 28 Rear 12x148MM/MS/CL/32H: 32 Rear 12x148MM/HG/6B/28H: 28 Rear 12x148MM/HG/6B/32H: 32 Rear 12x148MM/HG/CL/28H: 28 Rear 12x148MM/HG/CL/32H: 32 Rear 12x157MM/MS/6B/32H: 32 |
