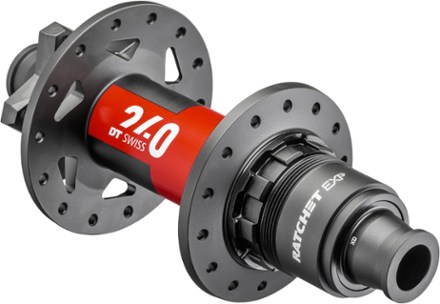

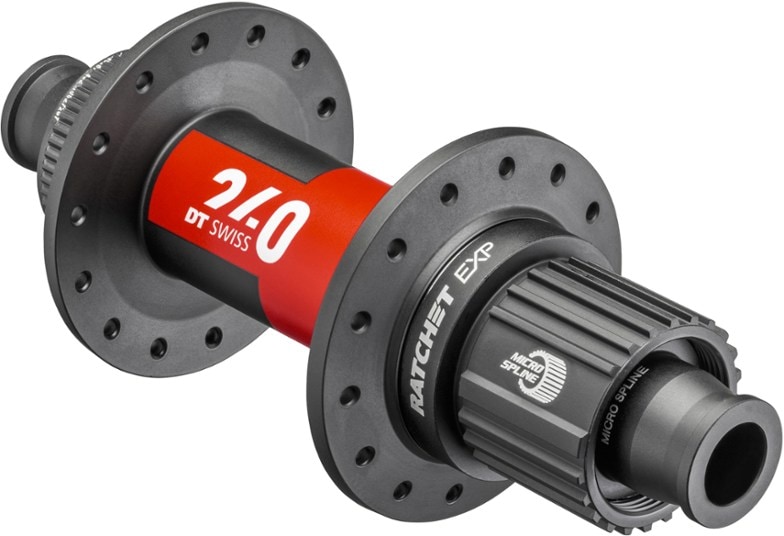

Developed for riders with the most extreme ambitions, the DT Swiss 240 rear hub is equipped with the Ratchet EXP system to maximize reliability and reduce weight.
- 240 Hub is lighter, stiffer, more precise and easier to maintain than previous versions
- Ratchet EXP is the lightest freehub system from DT Swiss
- Increased bearing distance increases bearing lifetime
- Straight spring provides more direct engagement, which reduces wear
- Fusion of the ratchet and threaded ring reduces the number of single parts in the system, further reducing the weight
- 36 points of engagement offer a great balance of performance and weight savings
- Full engagement of the ratchets creates a large contact surface and therefore low surface pressure that leads to excellent reliability
- Featuring an incorporated notch, the newly developed shape of the end caps simplifies disassembly for maintenance
- Rear hubs featuring the SRAM XD freehub standard are compatible with both 11- and 12-speed cassettes
Imported.
View all DT Swiss Bike Hubs| Best Use | Mountain Biking |
|---|---|
| Hub Position | Rear |
| Hub Brake Design | Rear 12x148MM/XD/6B/32H: 6-bolt Disc Rear 12x142MM/HG/CL/28H: Center Lock Disc Rear 12x148MM/XD/CL/28H: Center Lock Disc Rear 12x148MM/XD/CL/32H: Center Lock Disc Rear 12x148MM/MS/6B/28H: 6-bolt Disc Rear 12x148MM/MS/6B/32H: 6-bolt Disc Rear 12x148MM/MS/CL/28H: Center Lock Disc Rear 12x148MM/MS/CL/32H: Center Lock Disc Rear 12x157MM/XD/6B/32H: 6-bolt Disc Rear 12x157MM/MS/6B/32H: 6-bolt Disc |
| Freehub Standard | Rear 12x148MM/XD/6B/32H: SRAM XD Rear 12x142MM/HG/CL/28H: Shimano Hyperglide (HG) Rear 12x148MM/XD/CL/28H: SRAM XD Rear 12x148MM/XD/CL/32H: SRAM XD Rear 12x148MM/MS/6B/28H: Shimano Micro Spline Rear 12x148MM/MS/6B/32H: Shimano Micro Spline Rear 12x148MM/MS/CL/28H: Shimano Micro Spline Rear 12x148MM/MS/CL/32H: Shimano Micro Spline Rear 12x157MM/XD/6B/32H: SRAM XD Rear 12x157MM/MS/6B/32H: Shimano Micro Spline |
| Spoke Interface | J-Bend |
| Axle Type | Thru-Axle |
| Axle Spacing | Rear 12x148MM/XD/6B/32H: 12 x 148 mm Thru-Axle (Boost) Rear 12x142MM/HG/CL/28H: 12 x 142 mm Thru-Axle Rear 12x148MM/XD/CL/28H: 12 x 148 mm Thru-Axle (Boost) Rear 12x148MM/XD/CL/32H: 12 x 148 mm Thru-Axle (Boost) Rear 12x148MM/MS/6B/28H: 12 x 148 mm Thru-Axle (Boost) Rear 12x148MM/MS/6B/32H: 12 x 148 mm Thru-Axle (Boost) Rear 12x148MM/MS/CL/28H: 12 x 148 mm Thru-Axle (Boost) Rear 12x148MM/MS/CL/32H: 12 x 148 mm Thru-Axle (Boost) Rear 12x157MM/XD/6B/32H: 12 x 157 mm Thru-Axle Rear 12x157MM/MS/6B/32H: 12 x 157 mm Thru-Axle |
| Speeds | Rear 12x148MM/XD/6B/32H: 12-speed Rear 12x142MM/HG/CL/28H: 11-speed Rear 12x148MM/XD/CL/28H: 12-speed Rear 12x148MM/XD/CL/32H: 12-speed Rear 12x148MM/MS/6B/28H: 12-speed Rear 12x148MM/MS/6B/32H: 12-speed Rear 12x148MM/MS/CL/28H: 12-speed Rear 12x148MM/MS/CL/32H: 12-speed Rear 12x157MM/XD/6B/32H: 12-speed Rear 12x157MM/MS/6B/32H: 12-speed |
| Spoke Hole Count | Rear 12x148MM/XD/6B/32H: 32 Rear 12x142MM/HG/CL/28H: 28 Rear 12x148MM/XD/CL/28H: 28 Rear 12x148MM/XD/CL/32H: 32 Rear 12x148MM/MS/6B/28H: 28 Rear 12x148MM/MS/6B/32H: 32 Rear 12x148MM/MS/CL/28H: 28 Rear 12x148MM/MS/CL/32H: 32 Rear 12x157MM/XD/6B/32H: 32 Rear 12x157MM/MS/6B/32H: 32 |
| Bearing Type | Cartridge |
| Rear Hub Gearing | Cassette |
| Weight | Rear 12x148MM/XD/6B/32H: 223 grams Rear 12x142MM/HG/CL/28H: 219 grams Rear 12x148MM/XD/CL/28H: 211 grams Rear 12x148MM/XD/CL/32H: 211 grams Rear 12x148MM/MS/6B/28H: 231 grams Rear 12x148MM/MS/6B/32H: 231 grams Rear 12x148MM/MS/CL/28H: 219 grams Rear 12x148MM/MS/CL/32H: 217 grams Rear 12x157MM/XD/6B/32H: 229 grams Rear 12x157MM/MS/6B/32H: 237 grams |
| Material(s) | Aluminum |
| Rear Spoke Count | Rear 12x148MM/XD/6B/32H: 32 Rear 12x142MM/HG/CL/28H: 28 Rear 12x148MM/XD/CL/28H: 28 Rear 12x148MM/XD/CL/32H: 32 Rear 12x148MM/MS/6B/28H: 28 Rear 12x148MM/MS/6B/32H: 32 Rear 12x148MM/MS/CL/28H: 28 Rear 12x148MM/MS/CL/32H: 32 Rear 12x157MM/XD/6B/32H: 32 Rear 12x157MM/MS/6B/32H: 32 |
