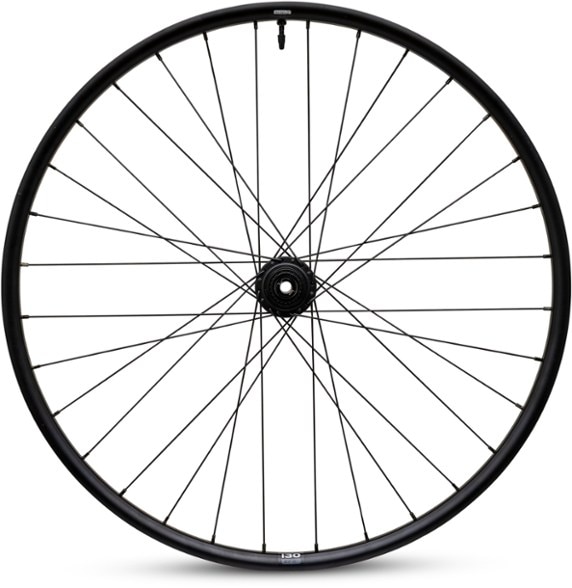

Tailored to meet the demands of full-power electric mountain bikes, the WTB HTZ i30 wheel is solidly built for those who want to smash through rock gardens with confidence.
- Purpose-built for e-MTBs with an asymmetric rim design and 20% thicker rim walls
- Heat-treated steel freehub with 6 pawls of simultaneous engagement, 17 mm axle sleeves, double-stacked Enduro sealed bearings at the inboard end and rotor-mount heat sinks
- 13-gauge butted spokes; solid strip and on-ramp
- 1411 g based on 27.5 in. rear wheel with Shimano Micro Spline
Made in USA.
View all WTB Mountain Bike Wheels| Best Use | Mountain Biking |
|---|---|
| Wheel Type | Rear 27.5 Boost Micro Spline: Rear Wheel Rear 27.5 Boost Shimano: Rear Wheel Rear 27.5 Boost XD: Rear Wheel Rear 29 Boost Micro Spline: Rear Wheel Rear 29 Boost Shimano: Rear Wheel Rear 29 Boost XD: Rear Wheel Front 29 Boost: Front Wheel |
| Freehub Standard | Rear 27.5 Boost Micro Spline: Shimano Micro Spline Rear 27.5 Boost Shimano: Shimano Hyperglide (HG) Rear 27.5 Boost XD: SRAM XD Rear 29 Boost Micro Spline: Shimano Micro Spline Rear 29 Boost Shimano: Shimano Hyperglide (HG) Rear 29 Boost XD: SRAM XD Front 29 Boost: Not Applicable |
| Tire Type | Tubeless Ready |
| Hub Brake Design | 6-bolt Disc |
| Front Axle | Rear 27.5 Boost Micro Spline: Not Applicable Rear 27.5 Boost Shimano: Not Applicable Rear 27.5 Boost XD: Not Applicable Rear 29 Boost Micro Spline: Not Applicable Rear 29 Boost Shimano: Not Applicable Rear 29 Boost XD: Not Applicable Front 29 Boost: 15 x 110 mm Thru-Axle (Boost) |
| Rear Axle | Rear 27.5 Boost Micro Spline: 12 x 148 mm Thru-Axle (Boost) Rear 27.5 Boost Shimano: 12 x 148 mm Thru-Axle (Boost) Rear 27.5 Boost XD: 12 x 148 mm Thru-Axle (Boost) Rear 29 Boost Micro Spline: 12 x 148 mm Thru-Axle (Boost) Rear 29 Boost Shimano: 12 x 148 mm Thru-Axle (Boost) Rear 29 Boost XD: 12 x 148 mm Thru-Axle (Boost) Front 29 Boost: Not Applicable |
| Rear Spoke Count | 32 |
| Wheel Size | Rear 27.5 Boost Micro Spline: 27.5 inches Rear 27.5 Boost Shimano: 27.5 inches Rear 27.5 Boost XD: 27.5 inches Rear 29 Boost Micro Spline: 29 inches Rear 29 Boost Shimano: 29 inches Rear 29 Boost XD: 29 inches Front 29 Boost: 29 inches |
| Internal Rim Width | 30 millimeters |
| Tubeless Compatible | Yes |
| Rim Material | Aluminum |
| Weight | 1411 grams |
| Kit Includes | Wheel, tape and valve |
