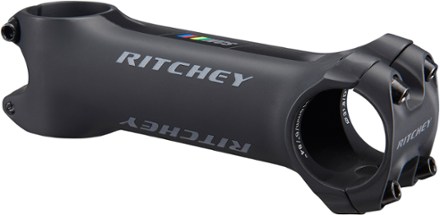

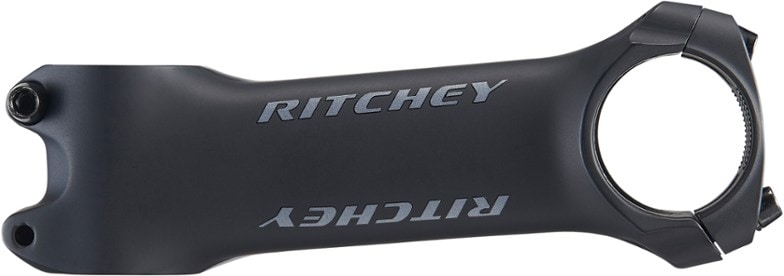

Building upon the original C220 design, the Ritchey WCS Toyon stem has a modernized shape and increased stiffness to improve handling and responsiveness.
- Squared aesthetic adds to the overall harmony of modern frame designs by matching their look while enhancing confidence and offering a more lively feel
- Retains the clamping surface area of the C220 stem design to create a more secure interface by wrapping a full 200° over the handlebar
- Bolt forces are aligned with the clamp so that the body embraces the handlebar, making it less prone to damaging lightweight bars
- Clamp design allows for a lighter faceplate and stem body without sacrificing strength or stiffness
- Premium 2014 aluminum saves additional weight; stainless-steel hardware offers rust protection and a clean look
Imported.
View all Ritchey Bike Stems| Best Use | Mountain Biking |
|---|---|
| Steer Tube Diameter (in) | 1-1/8 inches |
| Bar Clamp Diameter | 31.8 millimeters |
| Stem Rise | +/-6 degrees |
| Dimensions | 31.8 MM X 60 MM X +/-6 Degree: Bar clamp center to steer clamp center: 60 mm; steerer height: 42 mm; bar clamp width: 44 mm 31.8 MM x 70 MM x +/-6 Degree: Bar clamp center to steer clamp center: 70 mm; steerer height: 42 mm; bar clamp width: 44 mm 31.8 MM x 80MM x +/-6 Degree: Bar clamp center to steer clamp center: 80 mm; steerer height: 42 mm; bar clamp width: 44 mm 31.8 MM x 90 MM x +/-6 Degree: Bar clamp center to steer clamp center: 90 mm; steerer height: 42 mm; bar clamp width: 44 mm 31.8 MM x 100 MM x +/-6 Degree: Bar clamp center to steer clamp center: 100 mm; steerer height: 42 mm; bar clamp width: 44 mm 31.8 MM x 110 MM x +/-6 Degree: Bar clamp center to steer clamp center: 110 mm; steerer height: 42 mm; bar clamp width: 44 mm 31.8 MM x 120 MM x +/-6 Degree: Bar clamp center to steer clamp center: 120 mm; steerer height: 42 mm; bar clamp width: 44 mm |
| Material(s) | 2014 aluminum stem; stainless-steel hardware |
| Weight | 31.8 MM X 60 MM X +/-6 Degree: 139 grams 31.8 MM x 70 MM x +/-6 Degree: 139 grams 31.8 MM x 80MM x +/-6 Degree: 139 grams 31.8 MM x 90 MM x +/-6 Degree: 139 grams 31.8 MM x 100 MM x +/-6 Degree: 139 grams 31.8 MM x 110 MM x +/-6 Degree: 145 grams 31.8 MM x 120 MM x +/-6 Degree: 145 grams |
