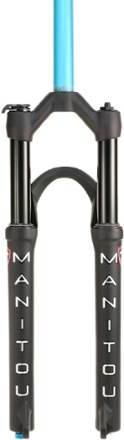

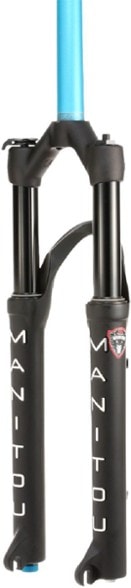

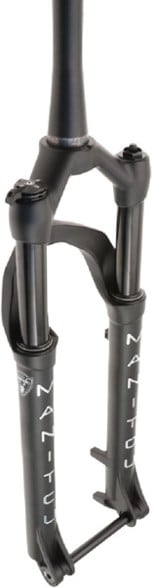

Built to handle terrain like a goat, the lightweight Manitou Markhor suspension fork delivers 120 mm of bump-absorbing travel for your cross-country and trail riding adventures.
- TS Air Spring with adjustable TPC rebound damping
- Kwik Toggle compression damping (on/off) for customized performance
- 30 mm black alloy stanchions for added durability
- Progressive rubber bumper bottom-out
- Trail and XC shim stack
- 29 in. models are compatible with both 29 and 27.5+ wheels
Imported.
View all Manitou Bike Suspension Forks| Best Use | Mountain Biking |
|---|---|
| Fork Spring Type | Air Spring |
| Fork Brake Type | Disc Brake |
| Fork Brake Mount | Post Mount |
| Max Rotor Diameter | 203 millimeters |
| Crown Race Diameter | 29/100 MM/9 X 100 MM/51 MM: 30 millimeters 29/100 MM/15 X 100 MM/51 MM: 40 millimeters |
| Stanchion Diameter | 30 millimeters |
| Steerer Tube Diameter | 29/100 MM/9 X 100 MM/51 MM: 1-1/8 in. Straight 29/100 MM/15 X 100 MM/51 MM: 1.5 in. Tapered |
| Steerer Tube Length | 250 millimeters |
| Axle to Crown Length | 510 millimeters |
| Max Tire Width | 29/100 MM/9 X 100 MM/51 MM: 69 millimeters 29/100 MM/15 X 100 MM/51 MM: 80 millimeters |
| Wheel Size | 29/100 MM/9 X 100 MM/51 MM: 27.5+ inches 29/100 MM/9 X 100 MM/51 MM: 29 inches 29/100 MM/15 X 100 MM/51 MM: 27.5+ inches 29/100 MM/15 X 100 MM/51 MM: 29 inches |
| Fork Travel | 100 millimeters |
| Fork Offset | 29/100 MM/9 X 100 MM/51 MM: 48 millimeters 29/100 MM/15 X 100 MM/51 MM: 51 millimeters |
| Front Axle | 29/100 MM/9 X 100 MM/51 MM: 9 x 100 mm QR 29/100 MM/15 X 100 MM/51 MM: 15 x 100 mm Thru-Axle |
| Weight | 29/100 MM/9 X 100 MM/51 MM: 1870 grams 29/100 MM/15 X 100 MM/51 MM: 1910 grams |
| Material(s) | Crown: shot peen forged aluminum; leg material: 6000 series straight wall aluminum |
