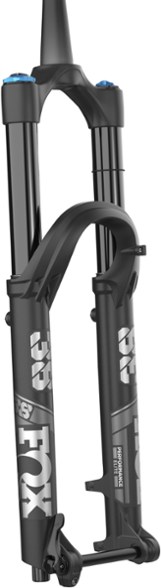

Fox 38 Performance Elite Suspension Fork
This product is not available. Good news: we have a newer version.
Shop newer versionMade with the enduro specialist in mind, the Fox 38 Performance Elite suspension fork redefines what a long-travel, single crown fork is capable of—delivering confidence, performance and durability.
- Floating axles provide much smoother suspension movement throughout the entire range of the fork's travel, notably improving sensitivity and overall ride quality
- Floating axle matches the width of the fork's wheel mounting surface to the front hub flange spacing for precise chassis alignment
- This precise alignment eliminates unwanted friction between the upper and lower fork legs
- Fork retains the same adjustments, features, dampers, weight and 7000 series aluminum upper tubes as the Fox Factory Series but has black anodized stanchions
- Quick-release lever-operated floating axle system combines the benefit of a floating axle with the ease of a tool-free quick release
- Lower leg bypass channels alleviate air pressure by increasing air volume within the lower legs and thereby reducing the amount of additional unintended pressure ramping
- Lower leg arch design shaves weight while making sure not to compromise stiffness or strength requirements of modern enduro and gravity style riding
- Lower leg bleeders allow for atmospheric pressure equalization at the simple press of a button

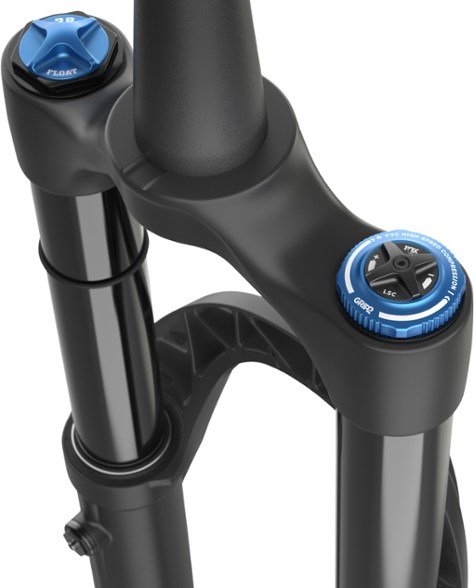

- GRIP2 damper includes patented Fox Variable Valve Control (VVC) technology, which allows for external fine-tuning of suspension performance
- FLOAT EVOL air spring technology increases negative air spring volume, optimizing small bump sensitivity
- 7000 series aluminum upper tubes have black anodized stanchions
- Direct mud guard mount
- Adjustments: high speed compression damping, low speed compression damping, high speed rebound, low speed rebound
- 44 mm offset; 264 mm steerer tube length; 28.6 mm S.H.I.S stem clamp diameter; 565.7 mm axle to crown length
- Max tire diameter: 723 mm
Imported.
View all Fox Bike Suspension ForksBest Use | Mountain Biking |
---|---|
Fork Spring Type | Air Spring |
Fork Brake Type | Disc Brake |
Fork Brake Mount | Post Mount |
Max Rotor Diameter | 230 millimeters |
Crown Race Diameter | 40 millimeters |
Stanchion Diameter | 38 millimeters |
Steerer Tube Diameter | 1.5 in. Tapered |
Steerer Tube Length | 243 millimeters |
Axle to Crown Length | 565.7 millimeters |
Max Tire Width | 71 millimeters |
Wheel Size | 27.5 inches |
Fork Travel | 170 millimeters |
Fork Offset | 44 millimeters |
Front Axle | 15 x 110 mm Thru-Axle (Boost) |
Weight | 2180 grams |
Material(s) | Black Anodized |
