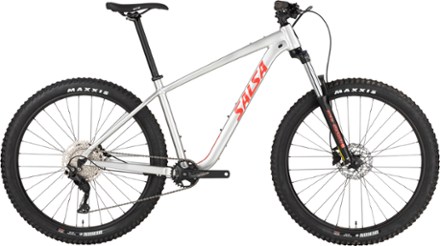

Build your confidence as you discover your local trails on the Salsa Rangefinder Deore 10-speed 27.5 mountain bike. This hardtail is ready for singletrack, doubletrack and even bikepacking trips.
- Built on a 6061-T6 alloy frame
- Internal routing for shift, brake and dropper post housing
- Includes a 120 mm suspension fork
- 1x drivetrain keeps shifting simple with plenty of gear range
- Hydraulic brakes offer confident stopping power
- Compatible with 29 in. or 27.5+ wheels and tires (29 in. not included)
- Carry what you need with the integrated top tube bag mount, 2 bottle cage mounts in the frame on M, L and XL sizes, 1 accessory mount under the down tube, and rear rack mounts
- Geometry grants confidence to newer mountain bikers
- Pedals not included
- NOTE: Specs and images are subject to change based on component availability
Imported.
- 1 year of free adjustments (see more below)
- In-store bike assembly
- Pickup in store or curbside
- Bike experts available at 170+ bike shops
- 20% off shop services
- Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
| Best Use | Mountain Biking |
|---|---|
| Mountain Bike Style | Trail |
| Frame | 6061-T6 alloy; double- and triple-butted tubing |
| Bike Suspension | Front Suspension |
| Fork | SR Suntour XCM32 Boost, Coil, NLO, DS, OR RST Alpha 110-15 Coil MLC |
| Fork Travel | 120 millimeters |
| Crankset | FSA Alpha Drive, 30T |
| Bottom Bracket | FSA 124.5 mm |
| Shifters | Shimano Deore M4100 |
| Rear Derailleur | Shimano Deore M5120 SGS |
| Rear Cogs | Shimano Deore M4100 11-46T, 10-speed |
| Number of Gears | 10 gear(s) |
| Brake Type | Hydraulic Disc Brake |
| Brakes | Shimano MT200 or Tektro M520 |
| Brake Levers | Shimano MT200 or Tektro M520 |
| Rims | WTB ST i40 32h 27.5 |
| Front Hub | Shimano MT400 Center Lock 15 x 110 mm thru axle hub |
| Rear Hub | Shimano MT200 Center Lock 10 x 141 mm quick-release hub |
| Wheel Size | 27.5 inches |
| Tires | Maxxis Rekon 27.5 x 2.8 in., EXO, Wire Bead |
| Tire Width | 2.8 inches |
| Handlebar Shape | Flat Bar |
| Handlebar | XS-SM: Salsa Salt Flat 31.8, 750 mm width; M-XL: Salsa Rustler 31.8, 800 mm width |
| Stem | Salsa Guide 31.8, 60 mm, 6 d |
| Seat Post | Salsa Guide 30.9, 0 offset |
| Saddle | WTB Volt Medium, Steel, 142 x 265 mm |
| Headset | FSA Orbit NO.57B 1.5 ZS |
| Chain | Shimano HG54 |
| Weight | 33 pounds |
| Bike Weight | Bike weight is based on median size, as sold, or the average of two median sizes. |
| Gender | Unisex |
| XS | S | M | L | XL | |
|---|---|---|---|---|---|
| Height Range | 5'2" - 5'6" | 5'3" - 5'9" | 5'8" - 6'0" | 5'11" - 6'3" | 6'2" - UP |
| Reach | 395 | 416 | 439 | 465 | 489 |
| Stack | 605.6 | 610.2 | 614.9 | 624.2 | 633.4 |
| Effective Top Tube | 568.2 | 590.5 | 614.8 | 643.5 | 670.1 |
| Seat Tube Center-Top | 355 | 381 | 431 | 470 | 508 |
| Standover Height | 678.6 | 698.3 | 737.2 | 769.1 | 798.7 |
| Head Tube Length | 95 | 100 | 105 | 115 | 125 |
| Head Tube Angle (degrees) | 68 | 68 | 68 | 68 | 68 |
| Seat Tube Angle (degrees) | 74 | 74 | 74 | 74 | 74 |
| Bottom Bracket Height | 58 | 58 | 58 | 58 | 58 |
| Wheelbase | 1100.6 | 1123.4 | 1148.3 | 1178 | 1205.8 |
| Chainstay | 439 | 439 | 439 | 439 | 439 |
| Fork Offset | 46 | 46 | 46 | 46 | 46 |
Sizing Notes
Measurements are stated in millimeters unless otherwise indicated.
How we measure bikes
- Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
- Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
- Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
- Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
- Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
- Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
- Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
- Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
- Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
- Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
- Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
- Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
