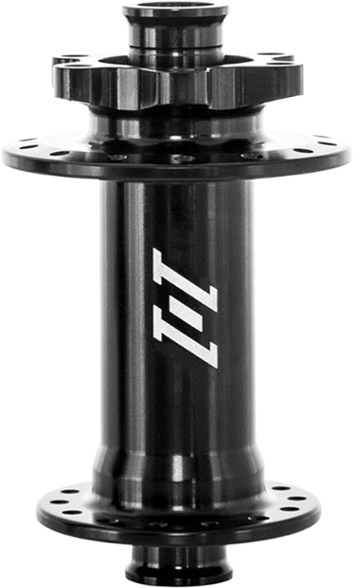

With a no-nonsense design, CNC-machined construction and robust seals, the Industry Nine 1/1 Classic hub is a confident, capable choice for hitting the trails and cleaning the A line.

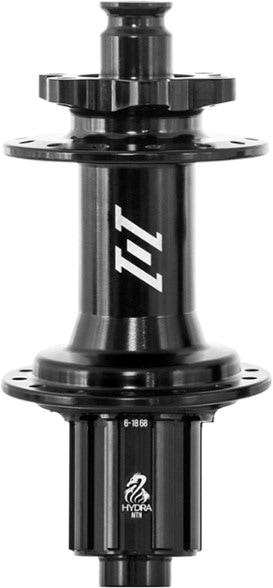

- Rear hub features a dual-phased pawl drive mechanism with 90 points for 4° engagement, thanks to a 6-pawl driver and 45-tooth drive-ring
- Classic J-bend spoke interface
- High-load sealed cartridge bearings
- Robust protection system uses a labyrinth radial lip seal and endcap proximity seals that are unencumbered by bearing wear or preload
- Service-friendly retained pawls actuated by durable leaf-springs
- CNC machined, anodized and assembled entirely in Asheville, North Carolina
Made in USA.
View all Industry Nine Bike Hubs| Best Use | Mountain Biking |
|---|---|
| Hub Position | Front 12x100MM/CL/24H: Front Front 12x100MM/CL/28H: Front Front 15x110MM/6B/28H: Front Front 15x110MM/6B/32H: Front Rear 12x148MM/XD/6B/32H: Rear Rear 12x142MM/XD/CL/28H: Rear Rear 12x142MM/HG/CL/24H: Rear Rear 12x148MM/XD/6B/28H: Rear Rear 12x148MM/MS/6B/28H: Rear Rear 12x148MM/HG/6B/32H: Rear |
| Hub Brake Design | Front 12x100MM/CL/24H: Center Lock Disc Front 12x100MM/CL/28H: Center Lock Disc Front 15x110MM/6B/28H: 6-bolt Disc Front 15x110MM/6B/32H: 6-bolt Disc Rear 12x148MM/XD/6B/32H: 6-bolt Disc Rear 12x142MM/XD/CL/28H: Center Lock Disc Rear 12x142MM/HG/CL/24H: 6-bolt Disc Rear 12x148MM/XD/6B/28H: 6-bolt Disc Rear 12x148MM/MS/6B/28H: 6-bolt Disc Rear 12x148MM/HG/6B/32H: 6-bolt Disc |
| Freehub Standard | Front 12x100MM/CL/24H: Not Applicable Front 12x100MM/CL/28H: Not Applicable Front 15x110MM/6B/28H: Not Applicable Front 15x110MM/6B/32H: Not Applicable Rear 12x148MM/XD/6B/32H: Shimano Hyperglide (HG) Rear 12x142MM/XD/CL/28H: SRAM XD Rear 12x142MM/HG/CL/24H: Shimano Hyperglide (HG) Rear 12x148MM/XD/6B/28H: SRAM XD Rear 12x148MM/MS/6B/28H: Shimano Micro Spline Rear 12x148MM/HG/6B/32H: SRAM XD |
| Spoke Interface | J-Bend |
| Axle Type | Thru-Axle |
| Axle Spacing | Front 12x100MM/CL/24H: 12 x 100 mm Thru-Axle Front 12x100MM/CL/28H: 12 x 100 mm Thru-Axle Front 15x110MM/6B/28H: 15 x 110 mm Thru-Axle (Boost) Front 15x110MM/6B/32H: 15 x 110 mm Thru-Axle (Boost) Rear 12x148MM/XD/6B/32H: 12 x 148 mm Thru-Axle (Boost) Rear 12x142MM/XD/CL/28H: 12 x 142 mm Thru-Axle Rear 12x142MM/HG/CL/24H: 12 x 142 mm Thru-Axle Rear 12x148MM/XD/6B/28H: 12 x 148 mm Thru-Axle (Boost) Rear 12x148MM/MS/6B/28H: 12 x 148 mm Thru-Axle (Boost) Rear 12x148MM/HG/6B/32H: 12 x 148 mm Thru-Axle (Boost) |
| Speeds | Front 12x100MM/CL/24H: Not Applicable Front 12x100MM/CL/28H: Not Applicable Front 15x110MM/6B/28H: Not Applicable Front 15x110MM/6B/32H: Not Applicable Rear 12x148MM/XD/6B/32H: 11-speed Rear 12x142MM/XD/CL/28H: 12-speed Rear 12x142MM/HG/CL/24H: 11-speed Rear 12x148MM/XD/6B/28H: 12-speed Rear 12x148MM/MS/6B/28H: 12-speed Rear 12x148MM/HG/6B/32H: 12-speed |
| Spoke Hole Count | 32 |
| Bearing Type | Cartridge |
| Rear Hub Gearing | Cassette |
| Weight | Front 12x100MM/CL/24H: 138 grams Front 12x100MM/CL/28H: 138 grams Front 15x110MM/6B/28H: 165 grams Front 15x110MM/6B/32H: 165 grams Rear 12x148MM/XD/6B/32H: 295 grams Rear 12x142MM/XD/CL/28H: 282 grams Rear 12x142MM/HG/CL/24H: 282 grams Rear 12x148MM/XD/6B/28H: 295 grams Rear 12x148MM/MS/6B/28H: 295 grams Rear 12x148MM/HG/6B/32H: 295 grams |
| Material(s) | CNC-anodized aluminum |
