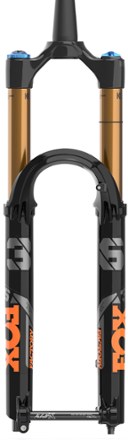

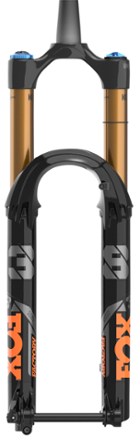

Redefine what you think a long-travel single crown fork is capable of with the Fox Racing Shox 38 Factory Series suspension fork. Built for enduro riding, it performs with confidence and durability.
10% Reward $124
$30Bonus Card
This item pays for membership!
$124
10% Reward
on this and every eligible full-price item*
+
$30
Bonus Card
valid for 30 days after joining*
=
$154
Value
Keep shopping
- Comes equipped with a quick-release lever-operated patent-pending floating axle system, combining the benefit of a floating axle with the ease of a tool-free quick-release
- Floating axle offers a distinct performance advantage with its ability to match the exact width of the fork's wheel mounting surface and the front hub flange spacing
- This creates precise chassis alignment and eliminates unwanted friction between the upper and lower fork legs
- Floating axles provide much smoother suspension movement throughout the entire range of the fork's travel, notably improving sensitivity and overall ride quality
- Lower leg bypass channels alleviate air pressure by dramatically increasing air volume, thereby reducing the amount of additional unintended pressure ramping
- Lower leg bleeders allow for atmospheric pressure equalization at the simple press of a button
- Lower leg arch design shaves every possible gram without compromising stiffness or strength requirements of modern enduro and gravity style riding
- GRIP2 damper includes patented Fox Variable Valve Control (VVC) technology, which allows for external fine-tuning of suspension performance
- FLOAT EVOL air spring technology increases negative air spring volume, optimizing small bump sensitivity
- Direct mud guard mount
- Genuine Kashima coating on upper tubes
- Adjustments: high-speed compression damping, low-speed compression damping, and high-speed rebound/low-speed rebound
- Offset is 37, 44 or 51 mm, based on size; 264 mm steerer tube length; 28.6 mm S.H.I.S stem clamp diameter; axle-to-crown length varies 575.7–593.7 mm, based on size
- 723 mm peak tire diameter on 27.5 sizes; 762 mm peak tire diameter on 27.5 sizes
Imported.
View all Fox Racing Shox Bike Suspension Forks| Best Use | Mountain Biking |
|---|---|
| Fork Spring Type | Air Spring |
| Fork Brake Type | Disc Brake |
| Fork Brake Mount | IS Mount |
| Max Rotor Diameter | 230 millimeters |
| Crown Race Diameter | 40 millimeters |
| Stanchion Diameter | 38 millimeters |
| Steerer Tube Diameter | 1.5 in. Tapered |
| Steerer Tube Length | 243 millimeters |
| Axle to Crown Length | 27.5/180 MM/15 x 110 MM/37 MM: 575.7 millimeters 29/180 MM/15 X 110 MM/44 MM: 593.7 millimeters |
| Max Tire Width | 27.5/180 MM/15 x 110 MM/37 MM: 71 millimeters 29/180 MM/15 X 110 MM/44 MM: 66 millimeters |
| Wheel Size | 27.5/180 MM/15 x 110 MM/37 MM: 27.5 inches 29/180 MM/15 X 110 MM/44 MM: 29 inches |
| Fork Travel | 27.5/180 MM/15 x 110 MM/37 MM: 180 millimeters 29/180 MM/15 X 110 MM/44 MM: 180 millimeters |
| Fork Offset | 27.5/180 MM/15 x 110 MM/37 MM: 37 millimeters 29/180 MM/15 X 110 MM/44 MM: 44 millimeters |
| Front Axle | 15 x 110 mm Thru-Axle (Boost) |
| Weight | 2,180 grams |
| Material(s) | Kashima-coated aluminum |
