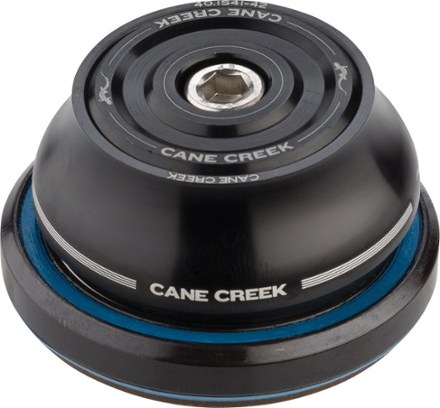

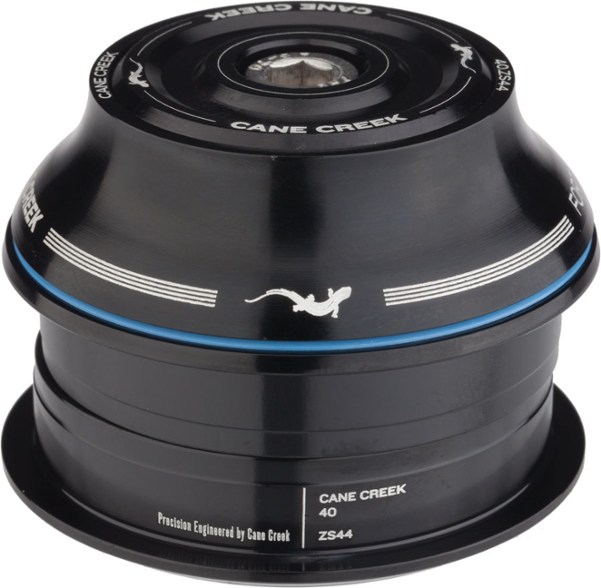

Robust, lightweight and long-lasting, the Cane Creek 40-Series headset with tall cover sets a standard for performance, durability and value with high-quality interchangeable parts.
- ZN40 bearings are corrosion-resistant zinc-coated, machined-steel cartridge bearings with hardened steel balls, which vastly increases the longevity of the 40-series headset
- 6061 T-6 aluminum cups and covers are internally relieved to reduce weight
- Durable steel crown race
- Interlok® spacer compatible (spacers not included)
- Innovative Clip-Seal completely seals the top assembly and captures the compression ring to reduce the number of loose parts
- High-quality, low friction face seals on the crown races
- External cups press into head tube
- Integrated bearings fit directly into compatible head tubes without the need of a bearing press
- Zero stack uppers press into head tube with very little stack height
Imported.
How to select your size:
Sizes are formatted as
S.H.I.S. Upper / S.H.I.S Stem Clamp Diameter / S.H.I.S. Lower / Crown Race
(S.H.I.S. stands for Standardized Headset Identification System)
S.H.I.S. upper and lower cups:
Bearing sizes:
View the Cane Creek 40 Series Product LineView all Cane Creek Bike HeadsetsSizes are formatted as
S.H.I.S. Upper / S.H.I.S Stem Clamp Diameter / S.H.I.S. Lower / Crown Race
(S.H.I.S. stands for Standardized Headset Identification System)
S.H.I.S. upper and lower cups:
- EC indicates External Cup (stack height: 16 mm top/12 mm bottom)
- ZS indicates ZeroStack (stack height: 8 or 15 mm top/4 mm bottom)
- IS indicates Integrated (stack height: 9 or 15 mm top/1 mm bottom)
Bearing sizes:
- EC30 takes a 38 mm bearing
- EC34 takes a 41 mm bearing
- ZS44 takes a 41 mm bearing
- ZS49 takes a 41 mm bearing
- EC44/40 takes a 52 mm bearing
- EC44/33 takes a 47 mm bearing
- EC49 takes a 52 mm bearing
- ZS56 takes a 52 mm bearing
- ZS62 takes a 52 mm bearing
- IS41 takes a 41 mm bearing
- IS42 takes a 42 mm bearing
- IS52 takes a 52 mm bearing
| Best Use | Cycling |
|---|---|
| Headset Type | Complete Headset |
| Headset Design | Threadless |
| Upper Stack Height | ZS44/28.6/ZS44/30: 8 millimeters IS42/28.6/IS52/40: 8 millimeters |
| Lower Stack Height | ZS44/28.6/ZS44/30: 4 miles IS42/28.6/IS52/40: 1 miles |
| Weight | Unavailable |
| Material(s) | 6061 T-6 aluminum/zinc coated bearings |
