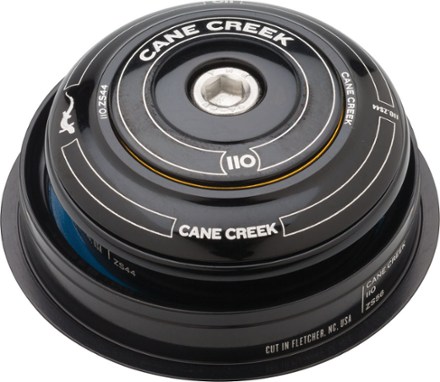

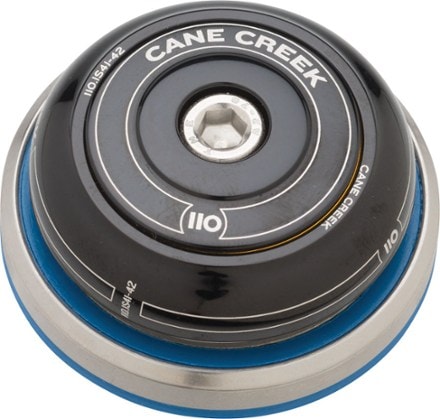

Featuring the highest-quality materials, sealing elements and Hellbender bearings, the Cane Creek 110 headset keeps you riding smoothly through rain, mud or grit—anything adventure throws your way.
- Hellbender stainless-steel bearings with advanced sealing elements are built to live in the most extreme conditions
- 7075 T-6 aluminum cups and covers are internally contoured and relieved to minimize weight and maximize strength
- Low-friction upper bearing seal completely seals cup from contaminants and is fully captured by the top cover with no loose parts
- Dual-Seal crown race provides excellent seal efficiency with low friction
- Interlok® spacer compatible (spacers not included)
- External cups press into head tube
- Integrated bearings fit directly into compatible head tubes without the need for a bearing press
- Zero stack uppers press into head tube with very little stack height
- Backed by the manufacturer's 100% Lifetime Guarantee, including bearings
Made in USA.
How to select your size:
Sizes are formatted as
S.H.I.S. Upper / S.H.I.S Stem Clamp Diameter / S.H.I.S. Lower / Crown Race
(S.H.I.S. stands for Standardized Headset Identification System)
S.H.I.S. upper and lower cups:
Bearing sizes:
View all Cane Creek Bike HeadsetsSizes are formatted as
S.H.I.S. Upper / S.H.I.S Stem Clamp Diameter / S.H.I.S. Lower / Crown Race
(S.H.I.S. stands for Standardized Headset Identification System)
S.H.I.S. upper and lower cups:
- EC indicates External Cup (stack height: 16 mm top/12 mm bottom)
- ZS indicates ZeroStack (stack height: 8 or 15 mm top/4 mm bottom)
- IS indicates Integrated (stack height: 9 or 15 mm top/1 mm bottom)
Bearing sizes:
- EC34 takes a 41 mm bearing
- ZS44 takes a 41 mm bearing
- ZS49 takes a 41 mm bearing
- EC44/40 takes a 52 mm bearing
- EC44/33 takes a 47 mm bearing
- EC49 takes a 52 mm bearing
- ZS56 takes a 52 mm bearing
- IS41 takes a 41 mm bearing
- IS42 takes a 42 mm bearing
- IS52 takes a 52 mm bearing
| Best Use | Cycling |
|---|---|
| Headset Type | Complete Headset |
| Headset Design | Threadless |
| Upper Stack Height | ZS44/28.6/ZS56/40: 8 millimeters IS41/28.6/IS52/40: 9 millimeters |
| Lower Stack Height | ZS44/28.6/ZS56/40: 4 millimeters IS41/28.6/IS52/40: 1 millimeters |
| Weight | Unavailable |
| Material(s) | 7075 T-6 aluminum/stainless steel |
