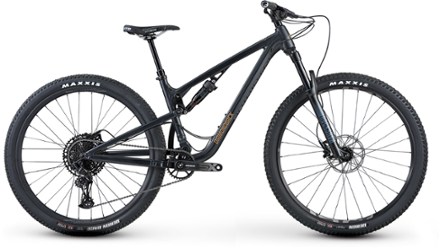

Explore the trails to your heart's content on the Diamondback Yowie 1 mountain bike. With 29er tires, full suspension, hydraulic disc brakes and a dropper post, your adventure can just keep on going.
- Fully internal cable-routed aluminum frame with a Level Link suspension platform for comfort on long hauls
- Level Link platform provides 110 mm of efficient rear suspension; RockShox 35 Silver fork provides 130 mm of travel up front
- SRAM SX Eagle 1 x 12-speed drivetrain with SRAM SX cranks gives you plenty of gears while keeping it light and smooth
- Boost 148 x 12 mm Maxle thru axle and Boost 110 hubs add stiffness
- Maxxis Rekon 29 in. wheels keep you rolling over obstacles
- NOTE: Specs and images are subject to change based on component availability
Imported.
- 1 year of free adjustments (see more below)
- In-store bike assembly
- Pickup in store or curbside
- Bike experts available at 170+ bike shops
- 20% off shop services
- Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
| Best Use | Mountain Biking |
|---|---|
| Frame | 29 in. alloy frame with Level Link suspension platform, hydroformed tubing, ISCG-05 tabs and Maxle dropout |
| Mountain Bike Style | Trail |
| Bike Suspension | Full Suspension |
| Fork | Rockshox 35 Silver, Solo Air with 130 mm of travel, turnkey lockout, Maxle Stealth and 1.5 in. tapered steerer |
| Fork Travel | 130 millimeters |
| Rear Shock | RockShox Deluxe Select Debonair |
| Crankset | SRAM SX, 32T |
| Bottom Bracket | SRAM DUB |
| Shifters | SRAM SX Eagle, 12-speed |
| Rear Derailleur | SRAM SX Eagle, 12-speed |
| Rear Cogs | SRAM PG1210, 12-speed, 11-50T |
| Number of Gears | 12 gear(s) |
| Brake Type | Hydraulic Disc Brake |
| Brakes | SRAM Level, 180 mm F/R |
| Brake Levers | SRAM Level |
| Rims | Diamondback Blanchard 28R, tapered for tubeless, 32 h |
| Front Hub | 32 h aluminum Boost 110 x 15 mm thru axle, sealed cartridge bearing |
| Rear Hub | 32 h aluminum Boost 148 x 12 mm thru axle, sealed cartridge bearing |
| Wheel Size | 29 inches |
| Tires | Front: tubeless-ready Maxxis Rekon 29 x 2.4 in.; rear: tubeless-ready Maxxis Rekon Race 29 x 2.25 in. |
| Tire Width | 2.25 inches 2.4 inches |
| Handlebar Shape | Riser Bar |
| Handlebar | DB 35 aluminum with 780 mm width, 20 mm rise, 35 mm bar bore |
| Stem | DB 35 aluminum with 35 mm reach, 35 mm bar bore |
| Seat Post | TranzX YSP18JL internal dropper |
| Dropper Post | Yes |
| Saddle | WTB Koda Comp |
| Pedals | DB Aluminum Platform with replaceable pins |
| Headset | FSA No.42B, sealed cartridge |
| Chain | SRAM NX Eagle, 12-speed |
| Weight | 31 lbs. 9.6 oz. |
| Bike Weight | Bike weight is based on median size, as sold, or the average of two median sizes. |
| Gender | Unisex |
| XS | S | M | L | XL | |
|---|---|---|---|---|---|
| Height Range | 5'1'' - 5'4'' | 5'4'' - 5'7'' | 5'7'' - 5'10'' | 5'10'' - 6'2'' | 6'2'' - 6'6'' |
| Reach | 410 | 430 | 450 | 470 | 490 |
| Stack | 604 | 604 | 613 | 622 | 631 |
| Effective Top Tube | 572 | 592 | 617 | 637 | 660 |
| Seat Tube Center-Top | 383 | 383 | 410 | 460 | 485 |
| Standover Height | 730 | 730 | 730 | 738 | 740 |
| Head Tube Length | 90 | 90 | 100 | 110 | 120 |
| Head Tube Angle (degrees) | 67 | 67 | 67 | 67 | 67 |
| Seat Tube Angle (degrees) | 75 | 75 | 75 | 75 | 75 |
| Bottom Bracket Height | 336 | 336 | 336 | 336 | 336 |
| Wheelbase | 1132 | 1152 | 1176 | 1199 | 1223 |
| Chainstay | 435 | 435 | 435 | 435 | 435 |
| Fork Offset | 44 | 44 | 44 | 44 | 44 |
Sizing Notes
Measurements are stated in millimeters unless otherwise indicated.
How we measure bikes
- Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
- Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
- Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
- Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
- Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
- Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
- Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
- Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
- Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
- Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
- Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
- Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
