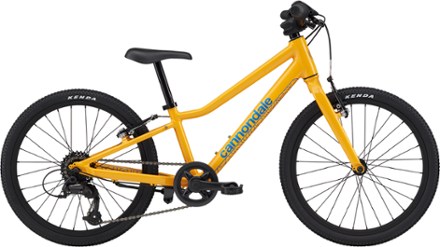

The Cannondale Quick 20 kids' bike is a seriously fun, high-performance street machine with its light frame, 7-speed gearing, stable handling and powerful brakes.
- 7-speed gearing and confident, stable handling make this a fun, high-performance ride
- Light, durable SmartForm C3 alloy frame and fork
- 7-speed gearing with light-action 7-speed twist shifter
- 20 in. alloy rims with light and fast multisurface tires
- NOTE: Specs and images are subject to change based on component availability
Imported.
- 1 year of free adjustments (see more below)
- In-store bike assembly
- Pickup in store or curbside
- Bike experts available at 170+ bike shops
- 20% off shop services
- Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
| Best Use | Recreational Cycling |
|---|---|
| Frame | SmartForm C3 alloy, rim brakes, rack/fender mounts |
| Step-Through | No |
| Bike Suspension | No Suspension |
| Fork | Rigid, SmartForm C3 Alloy, 1 in. steerer, fender mounts |
| Crankset | Prowheel, Pro-V30, 110 mm length, 30t |
| Bottom Bracket | Cartridge, square taper |
| Shifters | microSHIFT, low-torque Twist Shift, 7-speed |
| Rear Derailleur | microSHIFT M21S |
| Rear Cogs | 11-28, 7-speed |
| Number of Gears | 7 gear(s) |
| Brake Type | Rim |
| Brakes | Promax V-Brake, alloy linear pull |
| Brake Levers | Promax |
| Rims | Cannondale, lightweight alloy, 20 in., 28h |
| Front Hub | KT Alloy, quick-release |
| Rear Hub | 7-speed freehub |
| Wheel Size | 20 inches |
| Tires | Kenda Small Block 8, 20 x 1.5 in. |
| Tire Width | 1.5 inches |
| Handlebar Shape | Riser Bar |
| Handlebar | Lightweight Alloy, 25.4 mm, 580 mm |
| Stem | Forged and machined aluminum, 30 mm with fitted stem cover |
| Seat Post | One-piece, clamp-less, alloy, 25.4 mm |
| Saddle | Cannondale Kids' Comfort |
| Pedals | Wellgo Composite Platform with reflectors |
| Headset | 1-1/8 Ahead, semi-integrated |
| Chain | KMC Z7, 7-speed |
| Weight | 19 lbs. 1.4 oz. |
| Bike Weight | Bike weight is based on median size, as sold, or the average of two median sizes. |
| Gender | Kids' |
| 20 IN | |
|---|---|
| Height Range | 3'10'' - 4'3'' |
| Reach | 30.7 |
| Stack | 44.0 |
| Effective Top Tube | 45.0 |
| Seat Tube Center-Top | 25.5 |
| Standover Height | 47.2 |
| Head Tube Length | 12.0 |
| Head Tube Angle (degrees) | 69.5 |
| Seat Tube Angle (degrees) | 72.0 |
| Bottom Bracket Height | 20.1 |
| Wheelbase | 85.9 |
| Chainstay | 36.5 |
Sizing Notes
Measurements are stated in centimeters unless otherwise indicated.
How we measure bikes
- Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
- Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
- Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
- Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
- Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
- Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
- Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
- Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
- Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
- Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
- Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
- Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
