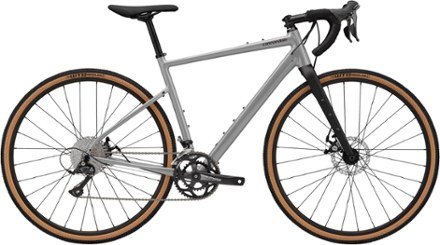

Built for chasing horizons, exploring routes less traveled or accelerating your commute, the Cannondale Topstone 3 is a lightweight gravel bike crafted from SmartForm C2 alloy with a full carbon fork.
- Lightweight SmartForm C2 Alloy frame and full carbon fork
- 9-speed shifting

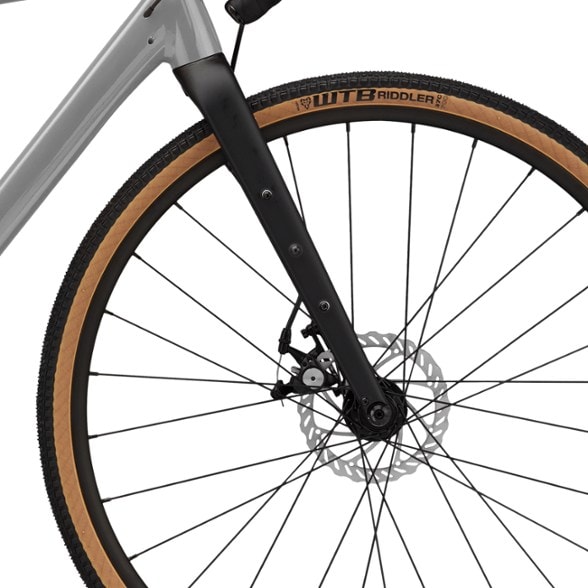

- Equipped with 700c x 37 mm WTB Riddler Comp tires
- NOTE: Specs and images are subject to change based on component availability
Imported.
- 1 year of free adjustments (see more below)
- In-store bike assembly
- Pickup in store or curbside
- Bike experts available at 170+ bike shops
- 20% off shop services
- Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
| Best Use | Gravel Cycling |
|---|---|
| Frame | SmartForm C2 alloy, 12x142 thru axle, tapered head tube, BSA-threaded BB, flat-mount disc, StraightShot internal cable routing, multiple gear/bottle mounts |
| Fork | 1-1/8 to 1.5 in. steerer, 55 mm OutFront offset, flat mount disc, internal routing, 12x100 thru axle, fender/gear mounts |
| Bike Suspension | No Suspension |
| Crankset | FSA Tempo Adventure, 46/30T |
| Bottom Bracket | Cartridge, square taper |
| Shifters | 9-speed |
| Front Derailleur | Shimano Sora GS |
| Rear Derailleur | Shimano Sora GS |
| Rear Cogs | 11-34T, 9-speed |
| Number of Gears | 18 gear(s) |
| Brake Type | Mechanical Disc Brake |
| Brakes | Promax Decoder R mechanical disc, 160/160 mm rotors |
| Brake Levers | Shimano Sora |
| Rims | GXD 1.0, 28h |
| Front Hub | Formula alloy, 12x100 mm |
| Rear Hub | Formula alloy, 12x142 mm |
| Wheel Size | 700c |
| Tires | WTB Riddler Comp, 700c x 37 mm |
| Tire Width | 37 millimeters |
| Handlebar Shape | Drop Bar |
| Handlebar | Cannondale 3, butted 6061 alloy, 16 deg. flare drop |
| Stem | Cannondale 3, 6061 alloy, 31.8 mm, 7 deg. |
| Seat Post | Cannondale 4, 6061 alloy, 27.2 x 350 mm |
| Saddle | Fizik Aliante Delta, S-alloy rails |
| Pedals | Not included |
| Headset | 1-1/8 to 1.5 in. |
| Chain | KMC Z9, 9-speed |
| Weight | 22 lbs. 15.5 oz. |
| Bike Weight | Bike weight is based on median size, as sold, or the average of two median sizes. |
| Gender | Unisex |
| XS | S | M | L | XL | |
|---|---|---|---|---|---|
| Height Range | 4'10" - 5'5" | 5'3" - 5'9" | 5'7" - 6'1" | 5'10" - 6'4" | 6'0" - 6'8" |
| Reach | 36.8 | 37.7 | 38.5 | 39.4 | 40.2 |
| Stack | 51.8 | 54.9 | 57.9 | 61 | 64 |
| Effective Top Tube | 53.3 | 54.4 | 55.7 | 57.2 | 58.7 |
| Seat Tube Center-Top | 41 | 45.8 | 50.5 | 55.3 | 60 |
| Standover Height | 70.3 | 74.4 | 78.4 | 82.4 | 86.4 |
| Head Tube Length | 8.6 | 11.5 | 14.7 | 18 | 21.2 |
| Head Tube Angle (degrees) | 70 | 71 | 71 | 71 | 71 |
| Seat Tube Angle (degrees) | 71.8 | 71.8 | 71.8 | 71.8 | 71.8 |
| Bottom Bracket Height | 28 | 28.4 | 28.4 | 28.4 | 28 |
| Wheelbase | 101.6 | 102.7 | 104.5 | 106.5 | 108.3 |
| Chainstay | 43.5 | 43.5 | 43.5 | 43.5 | 43.5 |
| Fork Offset | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 |
Sizing Notes
Measurements are stated in centimeters unless otherwise indicated.
How we measure bikes
- Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
- Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
- Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
- Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
- Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
- Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
- Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
- Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
- Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
- Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
- Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
- Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
