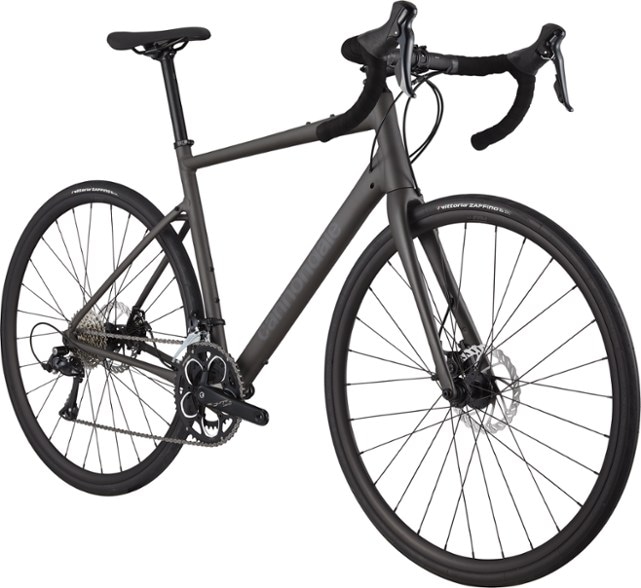

Roll smooth, roll fast, roll confident. Wherever the road takes you, roll with the Cannondale Synapse AL 3 bike, a comfortable, all-around, up-for-anything, pure road machine.
- Alloy frame tubes are shaped and butted with absolute precision to help absorb road chatter and bumps without adding weight or isolating you from the ride experience
- Full carbon fork
- Clearance for up to 32 mm tires, with 6 mm of room on each side, lets you venture beyond the pavement with comfort and grip, or add full fenders to ride through the wet season
- Mounts and eyelets galore means you can gear up for whatever the day, week or month has in store
- SmartSense-compatible frame means it's easy to upgrade to the Cannondale system of intelligent running lights and rear-facing radar (not included)
- Equipped with a Shimano Sora 9-speed drivetrain
- Features RD 3.1 rims and Vittoria Zaffrio 30 mm tires
- Comes with lightweight alloy handlebar and a Cannondale saddle
- Powerful mechanical disc brakes
- NOTE: Specs and images are subject to change based on component availability
Imported.
- 1 year of free adjustments (see more below)
- In-store bike assembly
- Pickup in store or curbside
- Bike experts available at 170+ bike shops
- 20% off shop services
- Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
| Best Use | Road Cycling |
|---|---|
| Frame | Lightweight SmartForm C2 Alloy, SmartSense compatible, BSA threaded BB, internal cable routing, flat-mount brake, 142 x 12 thru axle, removable fender bridge, hidden rack/fender mounts |
| Fork | Synapse Carbon, integrated crown race, 12 x 100 mm thru axle, internal routing, flat-mount brake, fender mounts |
| Bike Suspension | No Suspension |
| Crankset | FSA Vero Compact, 50/34T |
| Bottom Bracket | FSA Cartridge |
| Shifters | 9-speed |
| Front Derailleur | Shimano Sora |
| Rear Derailleur | Shimano Sora GS |
| Rear Cogs | 11-34T, 9-speed |
| Number of Gears | 18 gear(s) |
| Brake Type | Mechanical Disc Brake |
| Brakes | Promax Decoder R mechanical disc, 160/160 mm rotors |
| Brake Levers | Shimano Sora |
| Rims | RD 3.1, 28-hole |
| Front Hub | Formula RX-512, 12 x 100 mm Center Lock |
| Rear Hub | Formula RX-142, 12 x 142 mm Center Lock |
| Wheel Size | 700c |
| Tires | Vittoria Zaffiro, 700c x 30 mm |
| Tire Width | 30 millimeters |
| Handlebar Shape | Drop Bar |
| Handlebar | Cannondale 4, 6061 Alloy, Compact |
| Stem | Cannondale 3, 6061 Alloy, 31.8 mm, 7 deg. |
| Seat Post | Cannondale 4, 6061 Alloy, 27.2 x 350 mm |
| Saddle | Cannondale Stage CX |
| Pedals | Wellgo with clip and strap |
| Headset | 1-1/8 to 1-1/4 in. |
| Chain | KMC Z9, 9-speed |
| Weight | 22 lbs. 14.9 oz. |
| Bike Weight | Bike weight is based on median size, as sold, or the average of two median sizes. |
| Gender | Unisex |
| 44 CM | 48 CM | 51 CM | 54 CM | 56 CM | 58 CM | 61 CM | |
|---|---|---|---|---|---|---|---|
| Height Range | 5'0'' - 5'4'' | 5'2'' - 5'6'' | 5'5'' - 5'9'' | 5'7'' - 5'11'' | 5'9'' - 6'1'' | 6'0'' - 6'4'' | 6'3'' - 6'8'' |
| Reach | 36.5 | 37.1 | 37.6 | 38.1 | 38.7 | 39.3 | 40.2 |
| Stack | 51.0 | 53.0 | 55.0 | 57.0 | 59.0 | 61.0 | 64.0 |
| Effective Top Tube | 52.1 | 53.3 | 54.4 | 55.5 | 56.7 | 58.0 | 59.8 |
| Seat Tube Center-Top | 40.0 | 42.2 | 44.3 | 48.0 | 52.0 | 55.0 | 59.0 |
| Standover Height | 68.1 | 70.2 | 72.3 | 75.3 | 78.4 | 81.1 | 84.5 |
| Head Tube Length | 9.6 | 11.5 | 14.0 | 16.0 | 18.1 | 20.5 | 23.6 |
| Head Tube Angle (degrees) | 70.2 | 70.8 | 71.0 | 71.9 | 72.0 | 72.0 | 72.0 |
| Seat Tube Angle (degrees) | 73.0 | 73.0 | 73.0 | 73.0 | 73.0 | 73.0 | 73.0 |
| Bottom Bracket Height | 26.3 | 26.3 | 26.8 | 27.0 | 27.0 | 27.3 | 27.3 |
| Wheelbase | 98.5 | 99.3 | 100.6 | 101.0 | 102.1 | 103.5 | 105.4 |
| Chainstay | 41.5 | 41.5 | 41.5 | 41.5 | 41.5 | 41.5 | 41.5 |
Sizing Notes
Measurements are stated in centimeters unless otherwise indicated.
How we measure bikes
- Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
- Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
- Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
- Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
- Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
- Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
- Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
- Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
- Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
- Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
- Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
- Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
