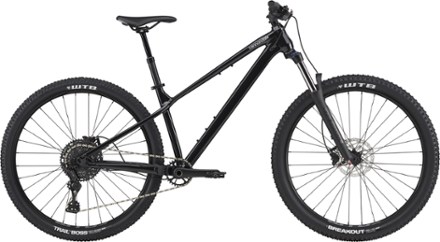

Built for good times in the dirt, the Cannondale Habit HT 3 mountain bike pairs full trail capability and hardtail simplicity so you can enjoy maximum fun with minimum fuss.
Wheel Size
29 inches
Fork Travel
130 millimeters
Number of Gears
10 gear(s)
- Light, durable SmartForm C2 alloy frame takes whatever the trail is dishing out and comes back for seconds
- A machined head tube, internally butted tubeset and strengthening gussets pay testaments to the decades of aluminum expertise at Cannondale
- Dialed trail geometry delivers a ride that's playful, stable and fun, whether you're out to crush miles or session lines
- A slack 64° head angle and long front end bring full-throttle stability and confidence
- Tight rear end and appropriately steep 76° seat angle keep things nimble and help you put the power down on climbs

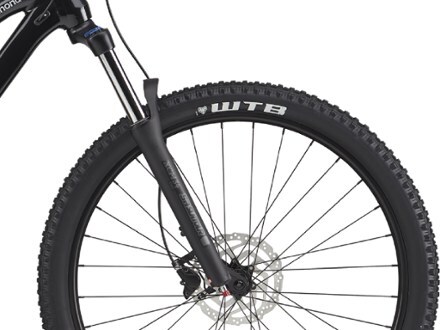

- SR Suntour XCR LO Boost fork delivers 130 mm of travel
- Big-range 1 x 10-speed drivetrain and powerful Shimano MT200 hydraulic disc brakes help you thrive on any trail
- 29 x 2.3 in. WTB Breakout tires are fast rolling
- TranzX dropper post comes standard because less post means more fun
- 5 threaded mounts in the main frame give you lots of options for carrying your bottles, pumps or packs (not included)
- Mounts are compatible with a Cannondale StrapRack carrier (not included) for tools, tubes or whatever else you feel like bringing along
- Universal derailleur hanger (UDH) is a quiet hero: It's designed to bend or break if your derailleur takes a hit, and replacements are easy to find and easy to install
- UDH also means the frame is compatible with SRAM T-Type Transmission drivetrains (not included)
- Pedals not included
- NOTE: Specs and images are subject to change based on component availability
Imported.
This bike comes with Coast to Coast Support, which includes:
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
View the Cannondale Habit Product LineView all Cannondale Hardtail Mountain Bikes- 1 year of free adjustments (see more below)
- In-store bike assembly
- Pickup in store or curbside
- Bike experts available at 170+ bike shops
- 20% off shop services
- Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
| Best Use | Mountain Biking |
|---|---|
| Frame | Habit HT, SmartForm C2 Alloy, tapered head tube, post mount disc, StraightShot internal cable routing, 55 mm chainline, UDH hanger |
| Mountain Bike Style | Trail |
| Bike Suspension | Front Suspension |
| Fork | SR Suntour XCR LO Boost 29, 130 mm travel, 15mm thru axle, tapered alloy steerer |
| Fork Travel | 130 millimeters |
| Crankset | Prowheel, 30T, 55 mm chainline |
| Bottom Bracket | Prowheel BSA 73 |
| Shifters | 10-speed |
| Rear Derailleur | microSHIFT Advent X |
| Rear Cogs | 11-48T, 10-speed |
| Number of Gears | 10 gear(s) |
| Brake Type | Hydraulic Disc Brake |
| Brakes | Shimano MT200 hydraulic disc, 180/180 mm RT10 rotors |
| Brake Levers | Shimano MT200 hydraulic disc |
| Rims | WTB STX i25 TCS, 32 h, tubeless ready |
| Front Hub | Shimano MT400, 15 x 110 mm thru-axle |
| Rear Hub | Boost 12 x 148 thru-axle |
| Wheel Size | 29 inches |
| Tires | WTB Breakout, 29 x 2.3 in., Comp |
| Tire Width | 2.3 inches |
| Handlebar | Cannondale 3 Riser, 6061 Alloy, 15 mm rise, 8 deg. sweep, 4 deg.; rise, 780mm |
| Stem | Cannondale 3, 6061 Alloy, 31.8, 0 deg. |
| Seat Post | TranzX dropper, internal routing, 31.6 mm; S: 100 mm; M: 120 mm; L and XL: 130 mm |
| Dropper Post | Yes |
| Saddle | Cannondale Ergo XC |
| Pedals | Not included |
| Headset | Integrated sealed bearing; tapered |
| Chain | KMC X10, 10-speed |
| Weight | Unavailable |
| Gender | Unisex |
Cannondale Bikes (208117)
| S | M | L | XL | |
|---|---|---|---|---|
| Height Range | 5'1" - 5'5" | 5'4" - 5'9" | 5'8" - 6'0" | 5'11" - 6'5" |
| Reach | 41.5 | 44.0 | 46.5 | 50.0 |
| Stack | 63.4 | 64.3 | 65.3 | 66.2 |
| Effective Top Tube | 57.3 | 60.0 | 62.8 | 66.5 |
| Seat Tube Center-Top | 38.0 | 40.0 | 44.0 | 48.0 |
| Standover Height | 71.0 | 73.0 | 74.0 | 76.0 |
| Head Tube Length | 11.0 | 12.0 | 13.0 | 14.0 |
| Head Tube Angle (degrees) | 64.0 | 64.0 | 64.0 | 64.0 |
| Seat Tube Angle (degrees) | 75.4 | 75.0 | 73.8 | 72.7 |
| Bottom Bracket Height | 32.5 | 32.5 | 32.5 | 32.5 |
| Wheelbase | 117.7 | 120.6 | 123.5 | 127.5 |
| Chainstay | 44.0 | 44.0 | 44.0 | 44.0 |
| Fork Offset | 4.4 | 4.4 | 4.4 | 4.4 |
Sizing Notes
All measurements are stated in centimeters unless otherwise indicated.
How we measure bikes
- Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
- Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
- Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
- Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
- Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
- Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
- Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
- Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
- Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
- Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
- Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
- Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
