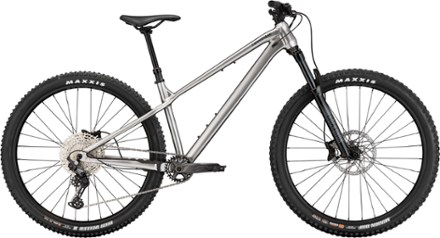

Full-tilt-boogie capability meets hardtail simplicity in the Cannondale Habit HT 1 bike. Designed for minimum fuss and maximum fun, this stable, playful ride is ready to let loose on the trails.
- Lightweight, durable SmartForm C2 alloy frame is burly enough to handle whatever the trail dishes out
- Machined head tube, internally butted tubeset and strengthening gussets offer a balance of toughness and refinement
- Dialed trail geometry can crush miles or session lines—or both on the same ride
- Slack 64° head angle and long front end bring full-throttle stability and confidence
- Tight rear end and appropriately steep 76° seat angle keep things nimble and help you put the power down on climbs
- Stout 130 mm RockShox 35 Silver airsprung fork
- Cannondale DownLow dropper post
- 5 threaded mounts in the main frame give you lots of options for bottles, pumps, packs or the Cannondale StrapRack carrier (accessories not included)
- Smooth-shifting Shimano Deore 12-speed drivetrain and hydraulic disc brakes
- Universal Derailleur Hanger (UDH) is designed to bend or break if your derailleur takes a hit
- With the UDH, replacements are easy to find and easy to install; it also means the frame is compatible with SRAM T-Type Transmission drivetrains (not included)
- Grippy WTB Vigilante tires
- Pedals not included
- NOTE: Specs and images are subject to change based on component availability
Imported.
- 1 year of free adjustments (see more below)
- In-store bike assembly
- Pickup in store or curbside
- Bike experts available at 170+ bike shops
- 20% off shop services
- Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
| Best Use | Mountain Biking |
|---|---|
| Frame | Habit HT, SmartForm C2 alloy, tapered headtube, post mount disc, StraightShot internal cable routing, 12 mm thru axle, Boost 148, 55 mm chainline, UDH hanger |
| Mountain Bike Style | Trail |
| Bike Suspension | Front Suspension |
| Fork | RockShox 35 Silver, 130 mm, Solo Air, 15 x 110 mm thru-axle, tapered steerer, 42 mm offset |
| Fork Travel | 130 millimeters |
| Crankset | Shimano, FC-5121, 30T, 55 mm chainline |
| Bottom Bracket | Shimano BSA 73 |
| Shifters | Shimano Deore M6100, 12-speed |
| Rear Derailleur | Shimano Deore 6100 |
| Rear Cogs | Shimano Deore M6100, 10-51T, 12-speed |
| Number of Gears | 12 gear(s) |
| Brake Type | Hydraulic Disc Brake |
| Brakes | Shimano MT420 4-piston hydraulic disc, 180/180 mm RT30 rotors |
| Brake Levers | Shimano MT400 hydraulic disc |
| Rims | WTB ST i30 TCS, 32 h, tubeless ready |
| Front Hub | Shimano MT400, 15 x 110 mm thru-axle |
| Rear Hub | Shimano MT410, 12 x 148 mm thru-axle |
| Wheel Size | 29 inches |
| Tires | WTB Vigilante, tubeless ready; front: 29 x 2.5 inches; rear: 29 x 2.4 inches |
| Tire Width | 2.4 inches 2.5 inches |
| Handlebar Shape | Riser Bar |
| Handlebar | Cannondale 3 Riser, 6061 alloy, 15 mm rise, 8-degree sweep, 4-degree rise, 780 mm |
| Stem | Cannondale 3, 6061 alloy, 31.8 mm, 0 deg. |
| Seat Post | Cannondale DownLow Dropper, internal routing, 31.6 mm, 125 mm (S), 150 mm (M), 170 mm (L-XL) |
| Dropper Post | Yes |
| Saddle | Cannondale Ergo XC |
| Pedals | Not Included |
| Headset | Integrated Sealed Bearing, tapered |
| Chain | Shimano Deore 6100, 12-speed |
| Weight | Unavailable |
| Gender | Unisex |
| S | M | L | XL | |
|---|---|---|---|---|
| Height Range | 5'1" - 5'5" | 5'4" - 5'9" | 5'8" - 6'0" | 5'11" - 6'5" |
| Reach | 41.5 | 44 | 46.5 | 50 |
| Stack | 63.4 | 64.3 | 65.3 | 66.2 |
| Effective Top Tube | 57.3 | 60 | 62.8 | 66.5 |
| Seat Tube Center-Top | 38 | 40 | 44 | 48 |
| Standover Height | 71 | 73 | 74 | 76 |
| Head Tube Length | 11 | 12 | 13 | 14 |
| Head Tube Angle (degrees) | 64 | 64 | 64 | 64 |
| Seat Tube Angle (degrees) | 75.4 | 75 | 73.8 | 72.7 |
| Bottom Bracket Height | 32.5 | 32.5 | 32.5 | 32.5 |
| Wheelbase | 117.7 | 120.6 | 123.5 | 127.5 |
| Chainstay | 44 | 44 | 44 | 44 |
| Fork Offset | 4.4 | 4.4 | 4.4 | 4.4 |
Sizing Notes
Measurements are stated in centimeters unless otherwise indicated.
How we measure bikes
- Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
- Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
- Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
- Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
- Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
- Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
- Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
- Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
- Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
- Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
- Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
- Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
