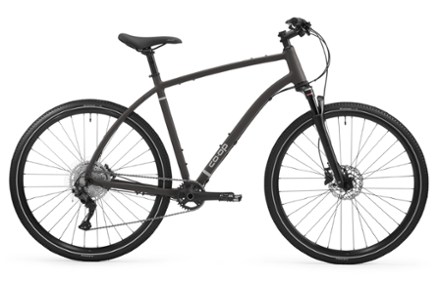

Smooth riding even on rough streets, the Co-op Cycles CTY 2.2 hybrid bike has rack compatibility, a front suspension fork for bumps, a Shimano Cues 10-speed drivetrain and hydraulic disc brakes.
- Lightweight yet strong 6061 aluminum frame with front suspension delivers a smooth ride over rough roads; fork lockout option helps you ride more efficiently on smooth terrain
- Front suspension smooths out bumps in the road and helps keep you in control
- Full Shimano Cues 10-speed drivetrain provides smooth and durable shifting performance
- Shimano disc brakes provide excellent and confident stopping power
- Puncture-resistant 700c x 40 mm Kenda tires provide a wide, stable contact patch for confidence on and off pavement; reflective sidewalls add visibility
- Gel grips and memory foam saddle help fight fatigue and keep you comfortable
- Shimano hubs with double-wall tubeless aluminum rims make stout, durable wheels
- Accommodates a rear rack and fenders (rack and fenders not included)
- Bicycle weight limit is 300 lbs. total, including rider + all gear carried on the bike and on the rider's body
- NOTE: Specs and images are subject to change based on component availability
Imported.
- 1 year of free adjustments (see more below)
- In-store bike assembly
- Pickup in store or curbside
- Bike experts available at 170+ bike shops
- 20% off shop services
- Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
| Best Use | Recreational Cycling |
|---|---|
| Frame | 6061 aluminum |
| Step-Through | No |
| Bike Suspension | Front Suspension |
| Fork | SR Suntour NCX32 E-Air with lockout |
| Fork Travel | 63 millimeters |
| Crankset | XS: Shimano Cues 32T, 170 mm S: Shimano Cues 32T, 170 mm M: Shimano Cues 32T, 175 mm L: Shimano Cues 32T, 175mm XL: Shimano Cues 32T, 175 mm |
| Bottom Bracket | Shimano |
| Shifters | Shimano Cues Rapidfire Plus 10-speed |
| Rear Derailleur | Shimano Cues Shadow RD+ |
| Rear Cogs | Shimano Cues 10-speed; 11-48T |
| Number of Gears | 10 gear(s) |
| Brake Type | Hydraulic Disc Brake |
| Brakes | Shimano Altus hydraulic disc |
| Brake Levers | Shimano Altus |
| Rims | Co-op aluminum tubeless |
| Front Hub | Shimano 32h; 100 mm quick-release |
| Rear Hub | Shimano 32h; 135 mm quick-release |
| Wheel Size | 700c |
| Tires | Kenda Flintridge, 700c x 40 mm |
| Tire Width | 40 millimeters |
| Handlebar Shape | Riser Bar |
| Handlebar | Co-op Riser, 31.8 mm, 25 mm rise, 8 degree sweep |
| Stem | XS: Alloy 6061, 31.8 x 80 mm S: Alloy 6061, 31.8 x 80 mm M: Alloy 6061, 31.8 x 90 mm L: Alloy 6061, 31.8 x 100 mm XL: Alloy 6061, 31.8 x 100 mm |
| Seat Post | XS: Co-op aluminum, 31.6 x 300 mm S: Co-op aluminum, 31.6 x 300 mm M: Co-op aluminum, 31.6 x 350 mm L: Co-op aluminum, 31.6 x 350 mm XL: Co-op aluminum, 31.6 x 350 mm |
| Saddle | Selle Royal Shadow+ with gel |
| Pedals | Wellgo aluminum platform with steel spindle |
| Headset | 1-1/8 to 1-1/2 in. threadless |
| Chain | Shimano CN-LG500; 10-speed |
| Weight | 30 pounds |
| Bike Weight | Bike weight is based on median size, as sold, or the average of two median sizes. |
| Gender | Unisex |
| Sustainability | From a Climate Neutral Certified brand |
| XS | S | M | L | XL | |
|---|---|---|---|---|---|
| Height Range | 5'0" - 5'3" | 5'3" - 5'6" | 5'6" - 5'9" | 5'9" - 6'0" | 6'0" - 6'3" |
| Reach | 376.5 | 409.2 | 399.3 | 408.8 | 418.7 |
| Stack | 580 | 579.9 | 599.6 | 618.4 | 641.9 |
| Effective Top Tube | 537.6 | 556.6 | 576.9 | 597.9 | 615 |
| Seat Tube Center-Top | 350 | 400 | 450 | 500 | 550 |
| Standover Height | 718.2 | 746.6 | 781.7 | 803.3 | 843.2 |
| Head Tube Angle (degrees) | 70 | 70 | 70 | 70 | 70 |
| Seat Tube Angle (degrees) | 74.5 | 74 | 73.5 | 73 | 73 |
| Wheelbase | 1056 | 1069.9 | 1085.6 | 1101.9 | 1120.4 |
| Chainstay | 445 | 445 | 445 | 445 | 445 |
| Fork Offset | 46 | 46 | 46 | 46 | 46 |
Sizing Notes
Measurements are stated in millimeters unless otherwise indicated.
How we measure bikes
- Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
- Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
- Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
- Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
- Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
- Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
- Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
- Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
- Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
- Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
- Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
- Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
