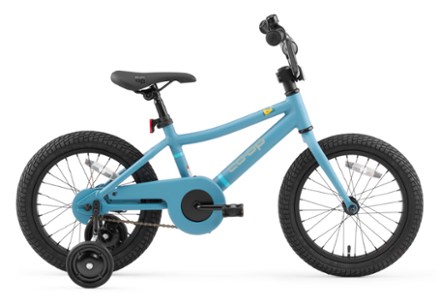

When your kiddo is ready to start pedaling, the kids' Co-op Cycles REV 16 bike helps them make the leap, with removable training wheels and a low stand-over height for easy handling.
Wheel Size
16 inches
- Designed to fit kids 3'3"–4' tall (typically ages 5–8) with an inseam length of 16–20 in.; see size chart for detailed buying guidance
- Sturdy and light aluminum frame can handle kids on the move
- Sticker pack includes tons of letters and fun designs so kids can customize their bike however they want
- Bicycle weight limit is 80 lbs. total, including rider + all gear carried on the bike and on the rider's body

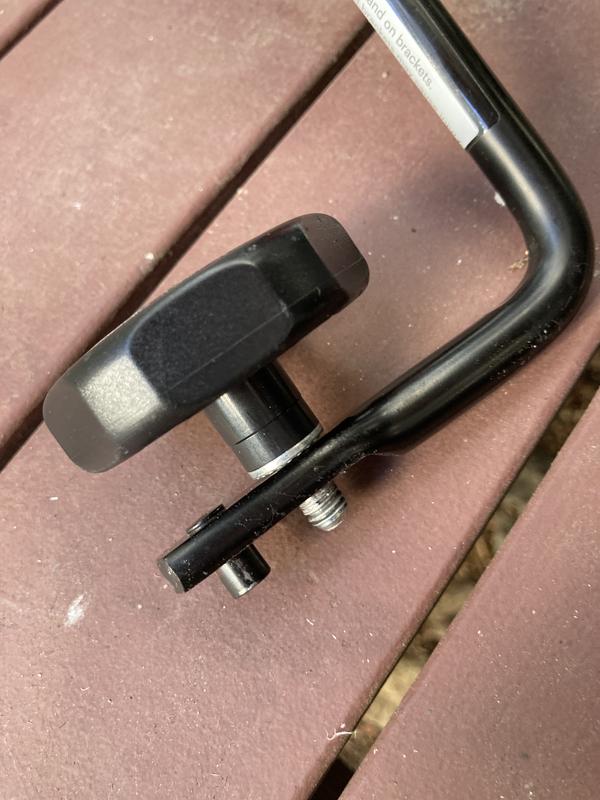

- Includes training wheels with new and improved training wheel attachment system as of June 2024
- NOTE: Specs and images are subject to change based on component availability
Imported.
This bike comes with Coast to Coast Support, which includes:
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
View the Co-op Cycles Rev Product LineView all Co-op Cycles Kids' Training Wheel Bikes- 1 year of free adjustments (see more below)
- In-store bike assembly
- Pickup in store or curbside
- Bike experts available at 170+ bike shops
- 20% off shop services
- Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
| Best Use | Cycling |
|---|---|
| Frame | 6061 aluminum single-speed frame |
| Bike Suspension | No Suspension |
| Fork | Steel |
| Crankset | 1-piece crank |
| Bottom Bracket | Steel loose ball |
| Brake Type | Coaster |
| Brakes | Rear coaster |
| Rims | Alloy |
| Front Hub | Joytech, 28h, nutted |
| Rear Hub | KT, 28h, nutted |
| Wheel Size | 16 inches |
| Tires | Kenda Kontact 16 x 1.75 in. |
| Handlebar Shape | Riser Bar |
| Handlebar | Steel riser bar with padded crossbar |
| Stem | Steel BMX style |
| Seat Post | Steel |
| Saddle | Co-op cycles |
| Pedals | Wellgo composite platform |
| Headset | 1-1/8 in. threadless steel |
| Chain | KMC steel |
| Weight | 17 lbs. 8 oz. |
| Bike Weight | Bike weight is based on median size, as sold, or the average of two median sizes. |
| Gender | Kids' |
| Sustainability | From a Climate Neutral Certified brand |
Co-op Cycles Bikes (190742)
| 16 IN | |
|---|---|
| Reach | 265 |
| Stack | 311 |
| Effective Top Tube | 384 |
| Seat Tube Center-Top | 250 |
| Standover Height | 447 |
| Head Tube Angle (degrees) | 70 |
| Seat Tube Angle (degrees) | 60 |
| Wheelbase | 732.5 |
| Chainstay | 305 |
| Fork Offset | 45 |
Sizing Notes
Measurements are stated in millimeters or degrees unless otherwise indicated.
How we measure bikes
- Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
- Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
- Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
- Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
- Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
- Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
- Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
- Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
- Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
- Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
- Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
- Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
