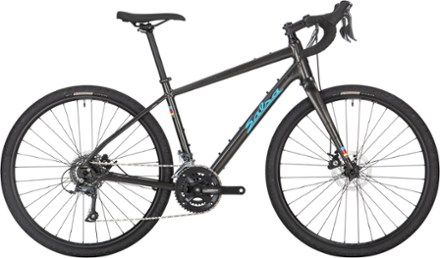

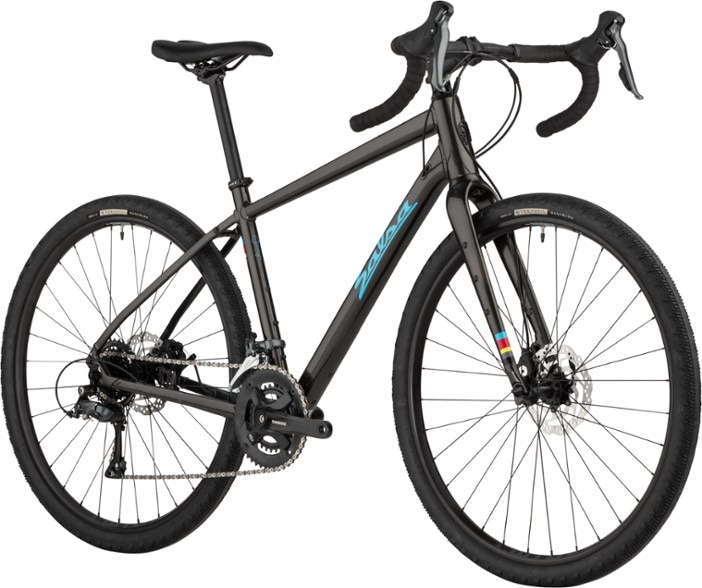

Your gateway to all-road adventures, the Salsa Journeyer Claris 650b bike is built for comfort and confidence on any road surface. Plus, its versatile cargo-carrying options extend your riding range.
Wheel Size
650b
Number of Gears
16 gear(s)
- 6061-T6 aluminum frame and Salsa Fantail aluminum fork are lightweight and durable
- Internal cable routing—including stealth dropper post routing (dropper post not included)—keeps things clean
- Flat-mount mechanical disc brakes deliver confident performance in mixed terrain
- Versatile cargo-carrying options—including fork rack mounts, fender mounts and Three-Pack mounts—extend riding range and allow for many different missions
- Rack and fenders not included
- Water, tool and accessory mounts on frame and fork allow for longer rides (accessories not included)
- Comes with 650b wheels and tires; also compatible with 700c wheels and tires (not included)
- Pedals not included
- NOTE: Specs and images are subject to change based on component availability
Imported.
This bike comes with Coast to Coast Support, which includes:
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
View the Salsa Journeyer Product LineView all Salsa Gravel Bikes- 1 year of free adjustments (see more below)
- In-store bike assembly
- Pickup in store or curbside
- Bike experts available at 170+ bike shops
- 20% off shop services
- Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
| Best Use | Gravel Cycling |
|---|---|
| Frame | Journeyman QR aluminum |
| Fork | Fantail aluminum |
| Bike Suspension | No Suspension |
| Crankset | Shimano TY501 46/30T |
| Bottom Bracket | Shimano UN101 68 x 122.5 mm |
| Shifters | Shimano Claris R2000 |
| Front Derailleur | Shimano Claris R2000 |
| Rear Derailleur | Shimano Claris R2000, Medium Cage |
| Rear Cogs | Shimano HG31 11-34T |
| Number of Gears | 16 gear(s) |
| Brake Type | Mechanical Disc Brake |
| Brakes | Tektro MD-C310 Flat Mount |
| Brake Levers | Shimano Claris R2000 |
| Rims | WTB STi23 32 h 650b |
| Front Hub | Shimano HB-TX505 9 x 100 mm QR hub |
| Rear Hub | Shimano FH-TX505-8 10 x 135 mm QR hub |
| Wheel Size | 650b |
| Tires | Teravail Washburn, 650b x 47 mm, 30 TPI |
| Tire Width | 47 millimeters |
| Handlebar Shape | Drop Bar |
| Handlebar | Salsa Cowbell 3, 31.8 mm |
| Stem | Salsa Guide 31.8 mm, 6 degree |
| Seat Post | Salsa Guide 27.2 x 350 mm 12 mm offset |
| Saddle | WTB Volt Medium, steel, 142 x 265 mm |
| Pedals | Not included |
| Headset | FSA NO.42 ACB IS-2 |
| Chain | KMC X8 |
| Weight | 26 pounds |
| Bike Weight | Bike weight is based on median size, as sold, or the average of two median sizes. |
| Gender | Unisex |
Salsa Bikes (184749, 184748)
| 49 CM | 51 CM | 53 CM | 55 CM | 57 CM | 60 CM | |
|---|---|---|---|---|---|---|
| Height Range | 4'8" - 4'11" | 4'11" - 5'2" | 5'2" - 5'6" | 5'5" - 5'9" | 5'8" - 6'0" | 6'0" - 6'4" |
| Reach | 366 | 368 | 372 | 376 | 387 | 408 |
| Stack | 510 | 528 | 552 | 570 | 598 | 627 |
| Effective Top Tube | 493 | 510 | 530 | 550 | 570 | 600 |
| Seat Tube Center-Top | 340 | 380 | 410 | 450 | 490 | 520 |
| Standover Height | 617 | 652 | 688 | 724 | 760 | 807 |
| Head Tube Length | 90 | 105 | 130 | 150 | 180 | 210 |
| Head Tube Angle (degrees) | 68.5 | 69.5 | 69.5 | 69.5 | 69.5 | 69.5 |
| Seat Tube Angle (degrees) | 76 | 75 | 74 | 73 | 73 | 73 |
| Wheelbase | 1027 | 1028 | 1040 | 1050 | 1072 | 1104 |
| Chainstay | 440 | 440 | 440 | 440 | 440 | 440 |
| Fork Offset | 50 | 50 | 50 | 50 | 50 | 50 |
Sizing Notes
Measurements are stated in millimeters unless otherwise indicated.
How we measure bikes
- Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
- Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
- Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
- Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
- Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
- Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
- Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
- Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
- Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
- Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
- Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
- Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
