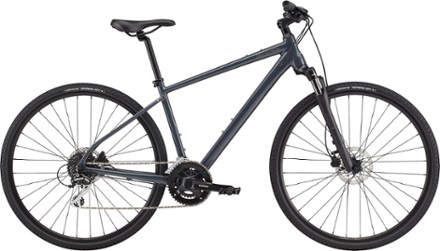

Whether you're commuting in the city or breezing through the country on a sunny day, the Cannondale Quick CX 3 bikes keeps you confident and in control for whatever obstacles lie ahead.
Wheel Size
700c
Fork Travel
63 millimeters
Number of Gears
16 gear(s)
- Lightweight, yet heavy-duty, SmartForm C3 alloy frame and long-travel suspension are well suited to handle multisurface riding and have the versatility to do it all
- 63 mm travel front suspension with lockout helps absorb rough bumps along the way; redesigned tapered head tube keeps steering precise and streamlined
- SAVE micro-suspension technology uses engineered flex in the frame reduce vibrations and increase the consistency of tire contact on uneven surfaces
- Stay in control going up hills or down with 2 x 8-speed shifting and responsive hydraulic disc brakes
- Large, Vittoria 700c x 40 mm multi-surface tires provide excellent on- and off-road grip, whether you're riding dirt or pavement
- Natural upright riding position inspired by mountain biking keeps you comfortable and in control whenever you ride
- StraightShot internal cable routing makes for clean lines and easy maintenance
- Fender brackets and universal rack mounts let you customize the Quick CX for riding in foul weather or making trips to the store (fenders and racks not included)
- An integrated wheel sensor delivers hyperaccurate speed, route and distance info, bike registration, service reminders and more via the free Cannondale app
- Intellimount stem mount secures any SP-Connect compatible smartphone case to view the app's dashboard display stats
- Bright 360° reflective elements help to make you more visible to motorists in low-light conditions
- NOTE: Specs and images are subject to change based on component availability
Imported.
This bike comes with Coast to Coast Support, which includes:
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
View the Cannondale Quick Product LineView all Cannondale Hybrid Bikes- 1 year of free adjustments (see more below)
- In-store bike assembly
- Pickup in store or curbside
- Bike experts available at 170+ bike shops
- 20% off shop services
- Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
| Best Use | Recreational Cycling |
|---|---|
| Frame | SmartForm C3 Alloy, tapered head tube |
| Step-Through | No |
| Bike Suspension | Front Suspension |
| Fork | Suntour NEX-E25, 63 mm, coil, lockout, custom crown |
| Fork Travel | 63 millimeters |
| Crankset | Shimano Tourney, 46/30T |
| Bottom Bracket | Cartridge square taper |
| Shifters | Shimano ST-EF505, 8-speed |
| Front Derailleur | Shimano Tourney, 31.8 clamp |
| Rear Derailleur | Shimano Acera, SGS |
| Rear Cogs | 11-34T, 8-speed |
| Number of Gears | 16 gear(s) |
| Brake Type | Hydraulic Disc Brake |
| Brakes | Tektro HD-T275-HDR280, 160/160 mm |
| Brake Levers | Tektro HD-T275-HDR280 hydro disc |
| Rims | Cannondale Disc, double wall with eyelets, 32h |
| Front Hub | Shimano, alloy, sealed, quick-release |
| Rear Hub | Shimano, alloy, sealed, quick-release |
| Wheel Size | 700c |
| Tires | Vittoria Terreno Dry, 700c x 40 mm |
| Tire Width | 40 millimeters |
| Handlebar Shape | Riser Bar |
| Handlebar | 6061 alloy, 25 mm rise, 8 deg. sweep, 6 deg. rise, 700 mm |
| Stem | Cannondale 3 with Intellimount, alloy, 31.8 mm clamp |
| Seat Post | 6061 alloy, 27.2 x 350 mm |
| Saddle | Cannondale Fitness Ergo |
| Pedals | Cannondale Platform |
| Headset | Semi Integrated, tapered |
| Chain | KMC X8, 8-speed |
| Weight | 31 lbs. 8 oz. |
| Bike Weight | Bike weight is based on median size, as sold, or the average of two median sizes. |
| Gender | Unisex |
Cannondale Bikes (various styles)
| XS | S | M | L | XL | XXL | |
|---|---|---|---|---|---|---|
| Height Range | 4'10" - 5'3" | 5'2" - 5'7" | 5'5" - 5'10" | 5'9" - 6'2" | 6'0" - 6'5" | 6'4'' - 6'9'' |
| Reach | 39.1 | 40.2 | 41.2 | 42.2 | 43.2 | 44.2 |
| Stack | 57.9 | 59.0 | 60.7 | 62.3 | 64.0 | 65.7 |
| Effective Top Tube | 56.6 | 58.2 | 59.7 | 61.2 | 62.8 | 64.3 |
| Seat Tube Center-Top | 35.0 | 40.0 | 45.0 | 50.0 | 55.0 | 60.0 |
| Standover Height | 67.7 | 72.5 | 76.4 | 80.2 | 84.0 | 87.6 |
| Head Tube Length | 9.0 | 10.8 | 12.6 | 14.3 | 16.2 | 18.0 |
| Head Tube Angle (degrees) | 69.0 | 69.0 | 69.0 | 69.0 | 69.0 | 69.0 |
| Seat Tube Angle (degrees) | 73.0 | 73.0 | 73.0 | 73.0 | 73.0 | 73.0 |
| Bottom Bracket Height | 29.3 | 29.3 | 29.3 | 29.3 | 29.3 | 29.3 |
| Wheelbase | 109.1 | 110.8 | 112.4 | 114.1 | 115.8 | 117.4 |
| Chainstay | 45.0 | 45.0 | 45.0 | 45.0 | 45.0 | 45.0 |
| Fork Offset | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 |
Sizing Notes
Measurements are stated in centimeters unless otherwise indicated.
How we measure bikes
- Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
- Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
- Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
- Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
- Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
- Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
- Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
- Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
- Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
- Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
- Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
- Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
