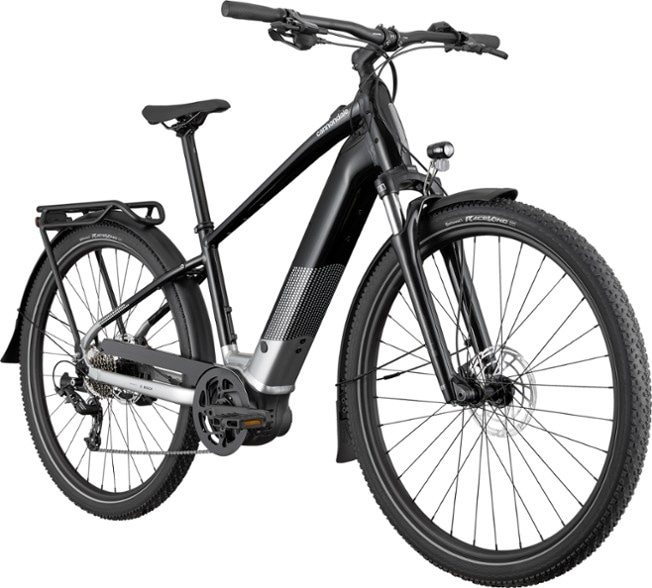

Built to be pointed off the pavement, the Cannondale Tesoro Neo X 3 electric bike delivers the power to get in deeper and go farther, whether you're bikepacking, backroad trekking or hauling gear.
- SmartForm C2 alloy construction with high-performance tube shapes, weight-saving butting and seamless double-pass welds delivers a frame that is light, durable and lively
- Durable, reliable Bosch Performance Line Sport 250W drive unit and 500 Wh battery give pedal assist up to 28 mph with the juice to go the distance—up to 104 mi.
- Proprietary motor mount positions the Bosch drive unit low and forward in the frame, keeping the center of gravity low and the chainstays short for agile handling
- SR Suntour XCM ATB fork offers 100 mm of bump-absorbing travel; SAVE micro-suspension in the frame absorbs vibration and shock for improved control and comfort
- 9-speed drivetrain and hydraulic disc brakes deliver reliable performance in any conditions
- Secure, rattle-free fenders, a full rear rack, bright front and rear lights, and even a kickstand mean you're ready to tackle any adventure
- All the features that make it so capable off-road translate into a comfortable, confident experience on-road, so you don't have to worry about potholes, gravel or tram tracks
- Integrated wheel sensor helps track your activity (speed, distance and calories burned), registers your bike and reminds you of needed service via the free Cannondale app
- Highly reflective accents on the frame and fork increase visibility in low light
- NOTE: Specs and images are subject to change based on component availability
Imported.
- 1 year of free adjustments (see more below)
- In-store bike assembly
- Pickup in store or curbside
- Bike experts available at 170+ bike shops
- An additional year of free adjustments on e-bikes
- 20% off shop services
- Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
New bikes go through a normal break-in period, after which they should be readjusted. All electric bicycles sold at REI include free adjustments for the defined period (one year after purchase date for non-members, or two years for REI Co-op Members)—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation, chain lubrication and e-bike firmware updates. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
UL2849 certified
Best Use | Urban Cycling Bikepacking |
---|---|
E-Bike Classification | Class 3: pedal assist up to 28 mph |
Motor | Bosch Performance Line Sport 250W |
Motor Type | Mid-Drive |
Battery Type | Lithium Ion |
Battery Capacity (Wh) | 500 watt hours |
Battery Removable | Yes |
Charge Time (hrs) | 3.5 hours |
Pedal Assist Range | 85 miles |
Frame | SmartForm C2 alloy, tapered head tube, internal cable routing, post-mount disc, motor protection, rack/fender mounts, lock mount |
Step-Through | No |
Bike Suspension | Front Suspension |
Fork | SR Suntour XCM ATB, 100 mm, Coil, 46 mm offset |
Fork Travel | 100 millimeters |
Crankset | FSA Bosch E-Bike, 46T |
Shifters | 9-speed |
Rear Derailleur | Shimano Alivio |
Rear Cogs | Shimano HG200 11-36T, 9-speed |
Number of Gears | 9 gear(s) |
Brake Type | Hydraulic Disc Brake |
Brakes | Shimano MT200 hydraulic disc, 180/180 mm RT10 rotors |
Brake Levers | Shimano MT200 hydraulic disc |
Rims | WTB STX i25 TCS, 32h, tubeless ready |
Front Hub | Shimano TX55, quick-release |
Rear Hub | Shimano MT400 12 x 148 mm thru axle |
Wheel Size | 29 inches |
Tires | Schwalbe G-One Allround Performance, 29 x 2.25 in., RaceGuard, tubeless ready |
Tire Width | 2.25 inches |
Handlebar Shape | Riser Bar |
Handlebar | Cannondale 3 riser, 6061 alloy, 15 mm rise, 8 deg. sweep, 4 deg. rise, 740 mm |
Stem | Cannondale adjustable , A-headset, 31.8 mm |
Seat Post | Cannondale Ergo Touring |
Saddle | Cannondale 4, 6061 alloy, 31.6 mm |
Pedals | Cannondale platform |
Headset | Integrated sealed bearing, tapered |
Chain | Shimano HG93, 9-speed |
Weight | 55 lbs. 11.7 oz. |
Bike Weight | Bike weight is based on median size, as sold, or the average of two median sizes. |
Gender | Unisex |
S | M | L | XL | |
---|---|---|---|---|
Height Range | 5'4" - 5'8" | 5'7" - 6'0" | 6'0" - 6'3" | 6'4" - 6'8" |
Reach | 39.3 | 43 | 45.1 | 47.4 |
Stack | 62.9 | 62.9 | 63.7 | 64.4 |
Effective Top Tube | 58.0 | 61.7 | 64.0 | 66.5 |
Seat Tube Center-Top | 38.0 | 43.5 | 48.5 | 53.5 |
Standover Height | 74.6 | 77.5 | 81.3 | 84.7 |
Head Tube Length | 12.8 | 12.8 | 13.6 | 14.4 |
Head Tube Angle (degrees) | 68.0 | 68.0 | 68.0 | 68.0 |
Seat Tube Angle (degrees) | 73.5 | 73.5 | 73.5 | 73.5 |
Bottom Bracket Height | 31.5 | 31.5 | 31.5 | 31.5 |
Wheelbase | 115.5 | 119.2 | 121.6 | 124.2 |
Chainstay | 47.9 | 47.9 | 47.9 | 47.9 |
Fork Offset | 5.1 | 5.1 | 5.1 | 5.1 |
Sizing Notes
Measurements are stated in centimeters unless otherwise indicated.
How we measure bikes
- Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
- Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
- Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
- Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
- Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
- Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
- Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
- Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
- Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
- Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
- Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
- Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
