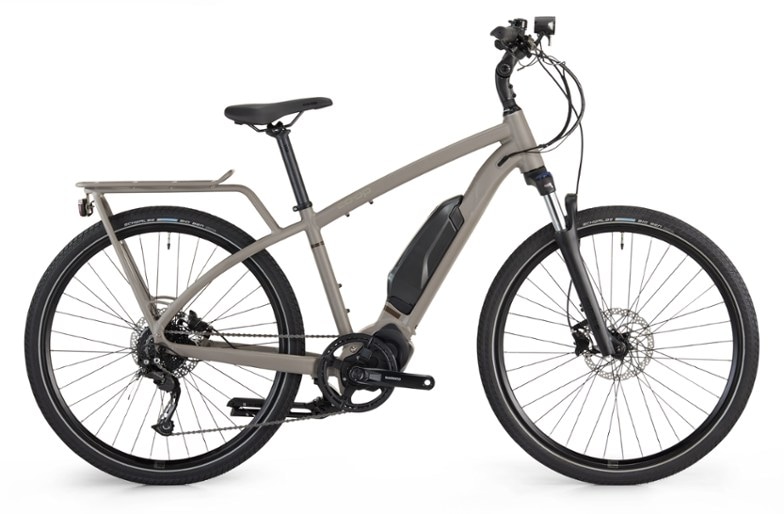

Quick, nimble and easy to ride, the Co-op Cycles CTY e2.1 electric bike makes getting around town breezy fun, with multimode pedal assist, a stable, upright ride and integrated cargo-ready rear rack.
E-Bike Classification
Class 1: pedal assist up to 20 mph
Motor
Shimano E5000 250W with Shimano E8014 36V/418Wh battery (max torque output 40Nm)
Battery Capacity (Wh)
418 watt hours
Weight
50.5 pounds
- Low stand-over height design makes the bike easy to get on and off and easy to stabilize while standing at a stop
- Upright riding position gives you great visibility; adjustable stem lets you fine-tune the cockpit to fit you

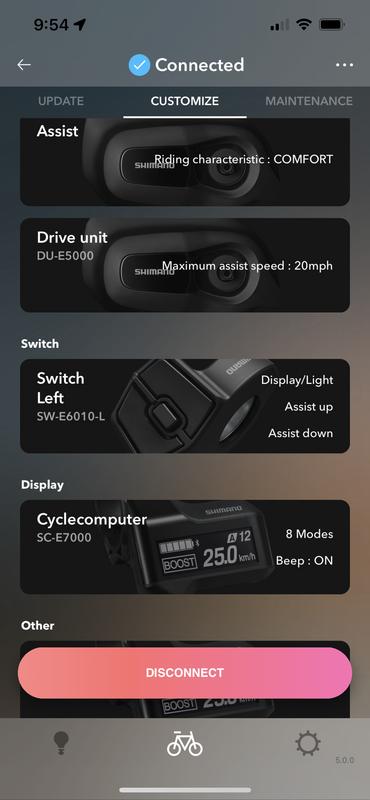

- Shimano e5000 motor is the strong, silent type, offering 3 pedal-assist modes, plus a walk mode

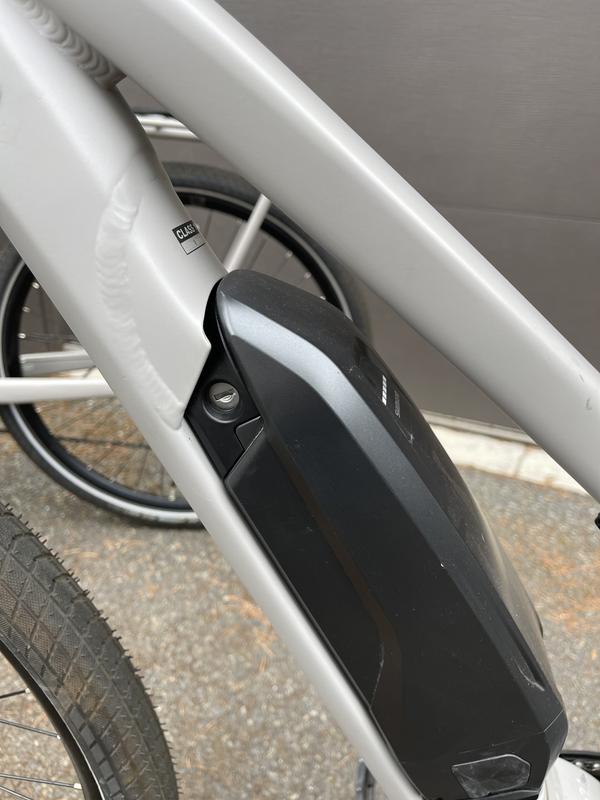

- Shimano E8014 418Wh battery comes equipped with an ABUS lock so you can feel confident parking it around town
- Suntour front suspension fork smooths out the ride with 75mm of travel
- 27.5 x 1.95 in. tires let you roll fast on city streets and roll over obstacles

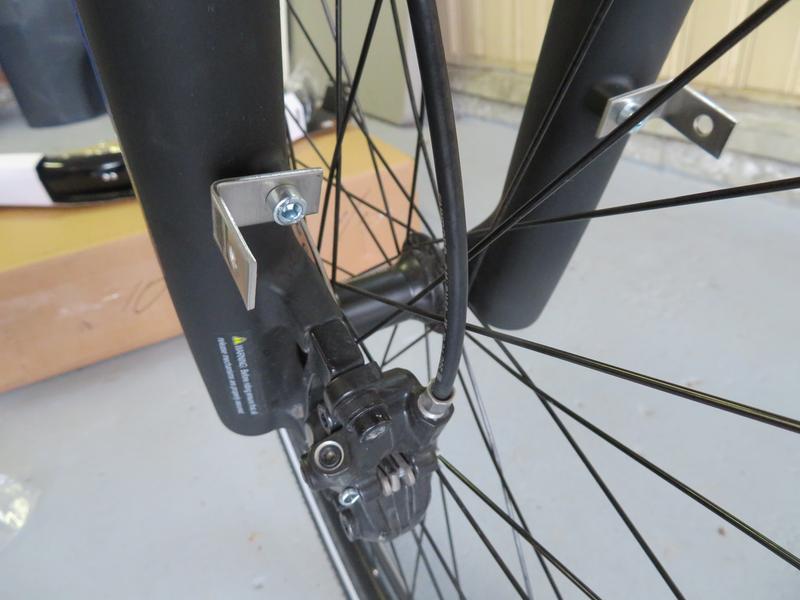

- Shimano hydraulic disc brakes deliver reliable, nuanced stopping power

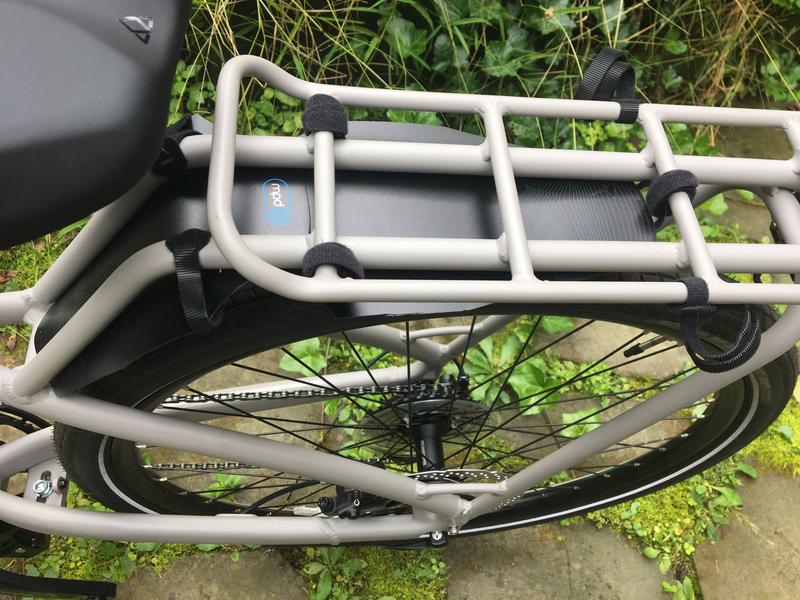

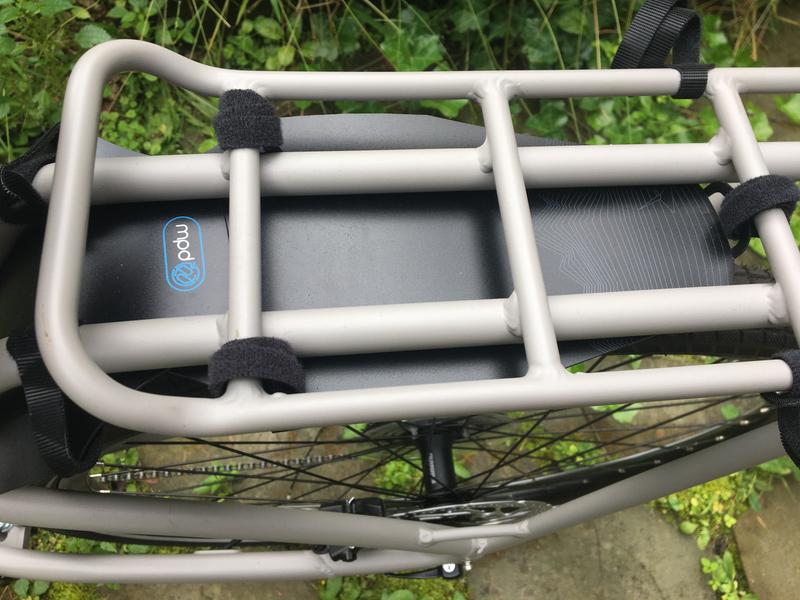

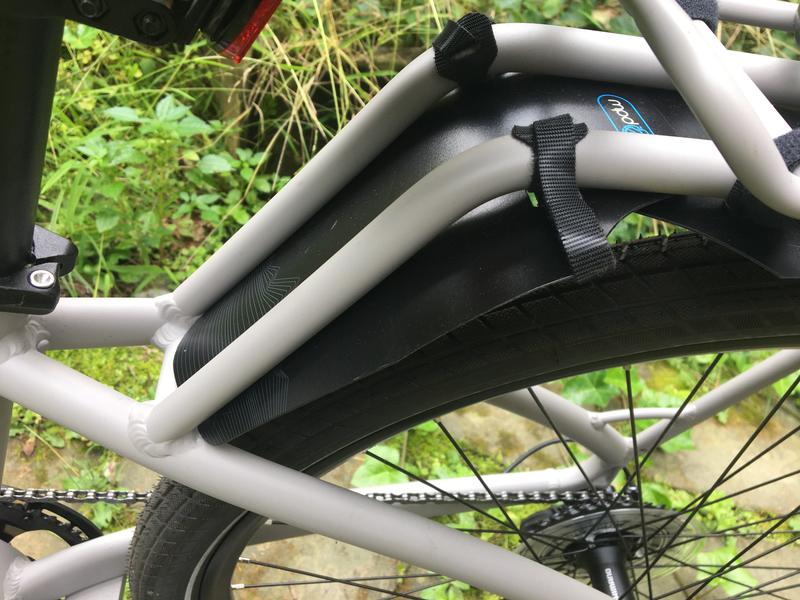

- Integrated rear rack facilitates grocery runs, commuting or adding a kid carrier; pannier compatible with a weight limit of 59 lbs
- Included front and rear lights run on the battery so you don't need to think about keeping them charged
- Battery charger included
- Center kickstand is easy to use and super stable
- Bicycle weight limit is 300 lbs. total, including rider + all gear carried on the bike and on the rider's body
- NOTE: Specs and images are subject to change based on component availability
Imported.
This e-bike comes with Coast to Coast Support, which includes:

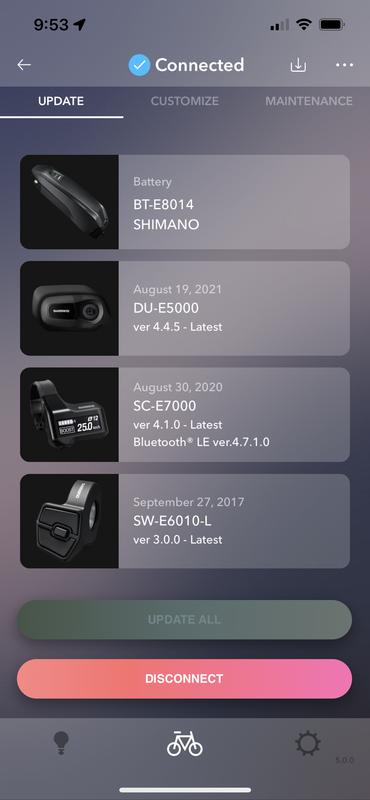

New bikes go through a normal break-in period, after which they should be readjusted. All electric bicycles sold at REI include free adjustments for the defined period (one year after purchase date for non-members, or two years for REI Co-op Members)—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation, chain lubrication and e-bike firmware updates. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
View the Co-op Cycles CTY Product LineView all Co-op Cycles Electric City Bikes- 1 year of free adjustments (see more below)
- In-store bike assembly
- Pickup in store or curbside
- Bike experts available at 170+ bike shops
- An additional year of free adjustments on e-bikes
- 20% off shop services
- Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
New bikes go through a normal break-in period, after which they should be readjusted. All electric bicycles sold at REI include free adjustments for the defined period (one year after purchase date for non-members, or two years for REI Co-op Members)—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation, chain lubrication and e-bike firmware updates. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
| Best Use | Urban Cycling |
|---|---|
| E-Bike Classification | Class 1: pedal assist up to 20 mph |
| Motor | Shimano E5000 250W with Shimano E8014 36V/418Wh battery (max torque output 40Nm) |
| Motor Type | Mid-Drive |
| Motor Torque (Nm) | 40 Newton meters |
| Battery Type | Lithium Ion |
| Battery Capacity (Wh) | 418 watt hours |
| Battery Removable | Yes |
| Charge Time (hrs) | 6.5 hours |
| Pedal Assist Range | 50 miles |
| Frame | 6061 Aluminum |
| Step-Through | S: Yes M: No |
| Bike Suspension | Front Suspension |
| Fork | Suntour MOBIE-A32 |
| Fork Travel | 75 millimeters |
| Crankset | Shimano FC-E5010 |
| Bottom Bracket | Shimano |
| Shifters | Shimano Acera, Rapidfire plus, 9-speed |
| Rear Derailleur | Shimano Alivio RD-M3100, 9-speed |
| Rear Cogs | Shimano HG200; 11-34, 9-speed |
| Number of Gears | 9 gear(s) |
| Brake Type | Hydraulic Disc Brake |
| Brakes | Shimano Altus |
| Brake Levers | Shimano |
| Rims | Co-op Cycles double-wall, 36h |
| Front Hub | Shimano Alivio |
| Rear Hub | Shimano Alivio |
| Wheel Size | 27.5 inches |
| Tires | Schwalbe Big Ben 27.5 x 1.95 in. |
| Tire Width | 1.95 inches |
| Handlebar Shape | Riser Bar |
| Handlebar | Co-op Cycles 6061 aluminum |
| Stem | Promax HQ adjustable |
| Seat Post | Co-op aluminum |
| Saddle | Co-op Comfort Plus with memory foam |
| Pedals | FPD alloy |
| Headset | FSA sealed |
| Chain | Shimano for e-bike |
| Weight | 50.5 pounds |
| Bike Weight | Bike weight is based on median size, as sold, or the average of two median sizes. |
| Gender | Unisex |
| Sustainability | From a Climate Neutral Certified brand |
Co-op Cycles Bikes (172495, 172496, 198781)
| S | M | L | |
|---|---|---|---|
| Height Range | 5'0"-5'6" | 5'6"-5'9" | 5'6"-6'3" |
| Reach | 370 | 380 | 390 |
| Stack | 612 | 621 | 649 |
| Effective Top Tube | 558 | 577 | 602 |
| Seat Tube Center-Top | 375 | 425 | 475 |
| Standover Height | 676 | 755 | 790 |
| Head Tube Length | 135 | 145 | 175 |
| Head Tube Angle (degrees) | 70 | 70 | 70 |
| Seat Tube Angle (degrees) | 73 | 72.5 | 72 |
| Fork Offset | 44 | 44 | 44 |
Sizing Notes
Measurements are stated in millimeters unless otherwise indicated.
How we measure bikes
- Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
- Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
- Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
- Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
- Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
- Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
- Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
- Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
- Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
- Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
- Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
- Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
