A fast, versatile and fun bike that appeals to a wide range of riders, the Cannondale Quick Disc 4 bike is perfect for enjoying a workout, cruising the city or just getting out.
- Bump-absorbing SAVE micro-suspension, comfy grips and new pressure-relieving saddles provide comfort
- Integrated wheel sensor helps track your activity—like speed, distance and calories burned—registers your bike and reminds you of needed service via the free Cannondale app
- A convenient mount on the stem securely holds any SP Connect–compatible smartphone case, creating a dashboard display for speed, mileage and more with the Cannondale app
- Easy-to-use StraightShot internal cable routing
- 360° reflective accents increase visibility in low light
- Rack and fender mounts offer versatility
- NOTE: Specs and images are subject to change based on component availability
Imported.
- 1 year of free adjustments (see more below)
- In-store bike assembly
- Pickup in store or curbside
- Bike experts available at 170+ bike shops
- 20% off shop services
- Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
| Best Use | Recreational Cycling |
|---|---|
| Frame | SmartForm C3 alloy, SAVE, tapered head tube, StraightShot hidden cable routing, flat mount disc, rack/fender mounts, 360-degree reflectivity |
| Step-Through | No |
| Bike Suspension | No Suspension |
| Fork | Chromoly, 1-1/8 in. steerer, flat mount disc, fender mounts, 360-degree reflectivity |
| Crankset | Prowheel alloy, 38t |
| Bottom Bracket | Tange cartridge, square taper |
| Shifters | microSHIFT Advent, 9-speed |
| Rear Derailleur | microSHIFT Advent |
| Rear Cogs | microSHIFT, 11-42, 9-speed |
| Number of Gears | 9 gear(s) |
| Brake Type | Hydraulic Disc Brake |

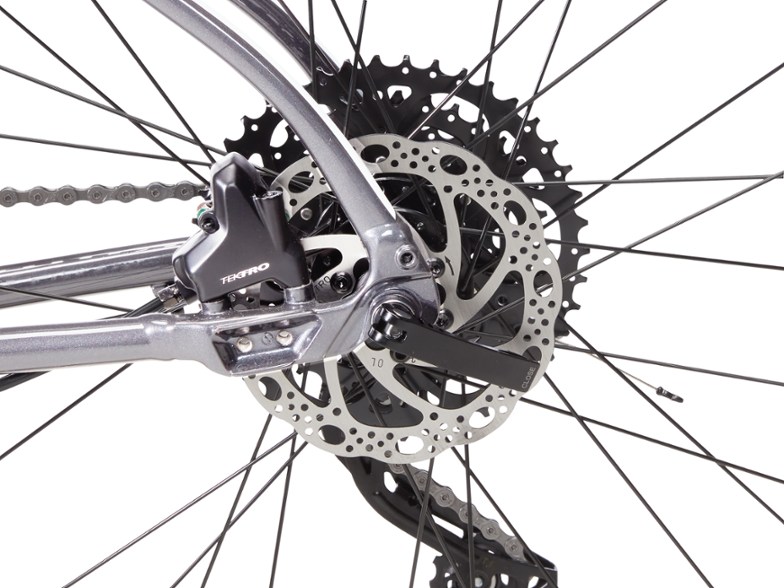

| Brakes | Tektro hydro disc, 160/160mm rotor |
| Brake Levers | Tektro hydro disc |
| Rims | Cannondale Disc, double wall w/eyelet, 32h |
| Front Hub | Sealed Alloy Disc, QR |
| Rear Hub | Sealed Alloy Disc, QR |
| Wheel Size | 700c |
| Tires | Schwalbe Spicer, 700c x 35mm, K-Guard, reflective strip |
| Tire Width | 35 millimeters |
| Handlebar Shape | Riser Bar |
| Handlebar | 6061 double-butted, 25mm rise, 8-degree sweep, 6-degree rise, 640mm |
| Stem | Cannondale 3 with Intellimount, alloy, 31.8mm clamp |
| Seat Post | 6061 alloy, 27.2 x 350mm |
| Saddle | Cannondale Fitness Ergo Double Density |
| Pedals | Cannondale Fitness |
| Headset | FSA sealed bearing, integrated, 1-1/8 in. |
| Chain | KMC Z9, 9-speed |
| Weight | 25 lbs. 8 oz. |
| Bike Weight | Bike weight is based on median size, as sold, or the average of two median sizes. |
| Gender | Unisex |
| S | M | L | XL | |
|---|---|---|---|---|
| Height Range | 5'2" - 5'6" | 5'6" - 5' 10" | 5'10" - 6'1" | 6'1" - 6'4" |
| Reach | 38.8 | 39.6 | 40.4 | 41.2 |
| Stack | 55.4 | 57.8 | 60.2 | 62.6 |
| Effective Top Tube | 55.7 | 57.3 | 58.8 | 60.3 |
| Seat Tube Center-Top | 40.0 | 45.0 | 50.0 | 55.0 |
| Standover Height | 69.0 | 73.1 | 77.2 | 81.2 |
| Head Tube Length | 13.4 | 16.0 | 18.5 | 21.1 |
| Head Tube Angle (degrees) | 70 | 70 | 70 | 70 |
| Seat Tube Angle (degrees) | 73 | 73 | 73 | 73 |
| Bottom Bracket Height | 27.7 | 27.7 | 27.7 | 27.7 |
| Wheelbase | 105.3 | 107.0 | 108.6 | 110.3 |
| Chainstay | 43.5 | 43.5 | 43.5 | 43.5 |
| Fork Offset | 5.5 | 5.5 | 5.5 | 5.5 |
Sizing Notes
Measurements are stated in centimeters unless otherwise indicated.
How we measure bikes
- Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
- Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
- Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
- Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
- Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
- Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
- Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
- Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
- Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
- Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
- Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
- Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
