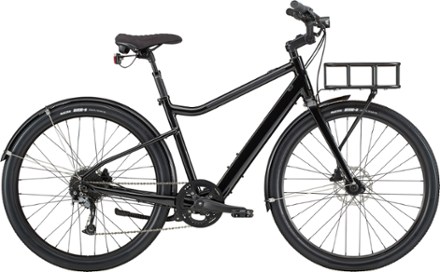

A fun, responsive and fully equipped electric bike, the Cannondale Treadwell Neo EQ e-bike is perfect for ripping around the neighborhood, running errands or getting outside for Sunday fundays.
- EQ means equipped: A convenient front rack and full-coverage fenders bring a little fun to the daily to-and-from
- A battery in the down tube and a motor in the rear hub keep the effort level low and the fun level high
- An intuitive controller lets you turn it on, select your assist level and see your battery charge with a simple color-coded button
- Light, responsive, capable and practical, it bounds through the city and blasts through the boroughs with a stylish nod to funky bikes of the past
- Easy-Ride Geometry puts the handlebar in easy reach, makes it easy to put a foot down when stopped and features a step-through frame that's easy to get on and off
- Integrated wheel sensor helps track your activity—like speed, distance and calories burned—registers your bike and reminds you of needed service via the free Cannondale app
- A convenient mount on the stem securely holds any SP Connect–compatible smartphone case, creating a dashboard display for speed, mileage and more with the Cannondale app
- A quilted saddle and ribbed grips keep things comfortable while the pedals use deck tape instead of teeth for easygoing grip in anything from flip-flops to cowboy boots
- Inspired by BMX and dirt-track racers, the Cruise Control handlebar puts you in just the right position for control while cruising—neither too upright nor too forward
- Urban Armor bumpers help protect the frame from dents and dings during daily leaning and locking
- NOTE: Specs and images are subject to change based on component availability
Imported.
- 1 year of free adjustments (see more below)
- In-store bike assembly
- Pickup in store or curbside
- Bike experts available at 170+ bike shops
- An additional year of free adjustments on e-bikes
- 20% off shop services
- Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
New bikes go through a normal break-in period, after which they should be readjusted. All electric bicycles sold at REI include free adjustments for the defined period (one year after purchase date for non-members, or two years for REI Co-op Members)—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation, chain lubrication and e-bike firmware updates. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
| Best Use | Urban Cycling |
|---|---|
| E-Bike Classification | Class 1: pedal assist up to 20 mph |
| Motor | MAHLE ebikemotion X35 250W |
| Motor Type | Geared Hub |
| Motor Torque (Nm) | 40 |
| Battery Type | Lithium Ion |
| Battery Capacity (Wh) | 250 watt hours |
| Battery Removable | No |
| Charge Time (hrs) | 3 hours |
| Pedal Assist Range | 40-70 miles |
| Frame | All-New, SmartForm C3 alloy, low stand-over Ride-Easy geometry, internal down tube battery, hidden cable routing, Urban Armor frame bumpers, flat mount disc, rack/fender mounts, kickstand mount |
| Step-Through | No |
| Bike Suspension | No Suspension |
| Fork | SmartForm C3 Alloy blades, 1-1/8 in. steerer, OutFront offset, flat mount disc, midblade rack/fender mounts |
| Crankset | Prowheel alloy, 38t |
| Bottom Bracket | Cartridge, square taper |
| Shifters | Shimano Acera, 9-speed |
| Rear Derailleur | Shimano Alivio |
| Rear Cogs | Sunrace, 11-36, 9-speed |
| Number of Gears | 9 gear(s) |
| Brake Type | Hydraulic Disc Brake |
| Brakes | Tektro HD-R280 hydraulic disc, 160/140mm rotors |
| Brake Levers | Tektro hydro disc |
| Rims | Shining, 32 hole |
| Front Hub | Formula CRX-512, 12x100 |
| Rear Hub | MAHLE ebikemotion X35 250W |
| Wheel Size | 650b |
| Tires | Maxxis DTR-1, 650b x 47mm |
| Tire Width | 47 millimeters |
| Handlebar Shape | Riser Bar |
| Handlebar | Cannondale Cruise Control riser, 6061 alloy, 31.8mm clamp, 15-degree backsweep, 740mm width |
| Stem | Cannondale 3 with Intellimount, alloy, 31.8mm clamp |
| Seat Post | Promax Suspension Seatpost, 31.6, 40mm |
| Saddle | Cannondale Treadwell, 170mm, steel rails |
| Pedals | Cannondale Comfort |
| Headset | FSA, Alloy, 1-1/8 in. Ahead, semi-integrated |
| Chain | KMC E9T, 9-speed |
| Weight | 38 lbs. 9.6 oz. |
| Bike Weight | Bike weight is based on median size, as sold, or the average of two median sizes. |
| Gender | Unisex |
| S | M | L | |
|---|---|---|---|
| Height Range | 5'2" - 5'6" | 5'6" - 5' 10" | 5'10" - 6'1" |
| Reach | 36.8 3 | 37.9 | 39.0 |
| Stack | 55.0 | 58.0 | 61.0 |
| Effective Top Tube | 55.7 | 57.9 | 60.0 |
| Seat Tube Center-Top | 38.7 | 45.0 | 51.3 |
| Standover Height | 66.5 | 70.9 | 74.7 |
| Head Tube Length | 13.5 | 16.5 | 19.6 |
| Head Tube Angle (degrees) | 70.5 | 71 | 71 |
| Seat Tube Angle (degrees) | 71 | 71 | 71 |
| Bottom Bracket Height | 28.0 | 28.0 | 28.0 |
| Wheelbase | 105.4 | 107.1 | 109.2 |
| Chainstay | 46.0 | 46.0 | 46.0 |
| Fork Offset | 5.5 | 5.5 | 5.5 |
Sizing Notes
Measurements are stated in centimeters unless otherwise indicated.
How we measure bikes
- Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
- Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
- Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
- Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
- Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
- Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
- Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
- Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
- Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
- Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
- Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
- Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
