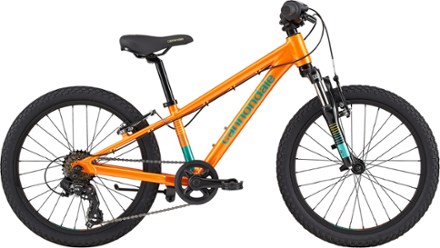

Ready to take to the trails for off-road adventures, the Cannondale Trail 20 kids' bike features a lightweight alloy frame, smooth suspension fork and easy gearing.
- Handlebar, grips, brake levers, saddle and cranks are designed specifically for little cyclists
- Lower range gear ratios make it easier to start pedaling, easier to climb hills and a lot easier—on the parent—to run alongside with a steadying hand
- To give little rippers every advantage over gravity, a lightweight, durable aluminum frameset is complemented by lightweight alloy components
- Cannondale kids' bikes all feature an appropriately narrow, kid-size distance between the pedals to make riding easier
- Each model in the kids' line has been designed to put the rider in the optimal position for control and comfort, making learning easier and riding more fun
- NOTE: Specs and images are subject to change based on component availability
Imported.
- 1 year of free adjustments (see more below)
- In-store bike assembly
- Pickup in store or curbside
- Bike experts available at 170+ bike shops
- 20% off shop services
- Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
| Best Use | Mountain Biking |
|---|---|
| Mountain Bike Style | Trail |
| Frame | SmartForm C3 alloy, smooth welding |
| Bike Suspension | Front Suspension |
| Fork | SunTour XCT-JR 20, 40mm travel, 1-1/8 in. steerer, coil, with canti mounts |
| Fork Travel | 40 millimeters |
| Crankset | Prowheel, Pro-V30, 110mm length, 30t |
| Bottom Bracket | Cartridge square taper |
| Shifters | Shimano Tourney Revo Twist Shifter, 7-speed |
| Rear Derailleur | Shimano Tourney |
| Rear Cogs | Shimano, 14-28, 7-speed FW |
| Number of Gears | 7 gear(s) |
| Brake Type | Rim |
| Brakes | Promax V-Brake, alloy linear pull |
| Brake Levers | Promax alloy, linear pull |
| Rims | Cannondale lightweight alloy, 20 in., 28h |
| Front Hub | KT Alloy, nutted axle |
| Rear Hub | KT Alloy, nutted axle, 7-speed freewheel |
| Wheel Size | 20 inches |
| Tires | Innova 20 x 1.95 in., multiuse tread |
| Tire Width | 1.95 inches |
| Handlebar Shape | Riser Bar |
| Handlebar | Lightweight alloy, 580mm wide, 25.4mm |
| Stem | Alloy Ahead, 30mm |
| Seat Post | Lightweight alloy, 25.4mm |
| Saddle | Cannondale Ergo |
| Pedals | Wellgo Composite Platform with reflectors |
| Headset | FSA, Alloy, 1-1/8 in. Ahead, semi-integrated |
| Chain | KMC Z7, 7-speed |
| Weight | 24 pounds |
| Bike Weight | Bike weight is based on median size, as sold, or the average of two median sizes. |
| Gender | Kids' |
| 20 IN | |
|---|---|
| Height Range | 42"- 49" |
| Reach | 30.4 |
| Stack | 44.8 |
| Effective Top Tube | 45 |
| Seat Tube Center-Top | 26 |
| Standover Height | 51.7 |
| Head Tube Angle (degrees) | 69.5 |
| Seat Tube Angle (degrees) | 72 |
| Bottom Bracket Height | 21.2 |
| Wheelbase | 86.2 |
| Chainstay | 36.5 |
Sizing Notes
Measurements are stated in centimeters unless otherwise indicated.
How we measure bikes
- Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
- Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
- Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
- Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
- Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
- Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
- Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
- Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
- Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
- Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
- Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
- Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
