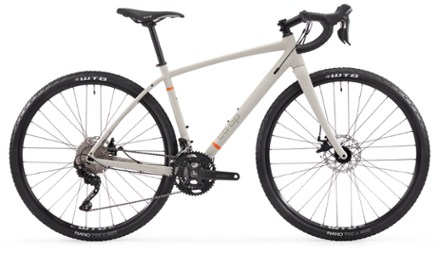

That "Pavement Ends" sign really means "Fun Begins"—when you're on the right bike. Loaded with gravel-specific Shimano GRX components, the Co-op Cycles ADV 2.2 is dialed for grinds of all kinds.
Wheel Size
700c
Number of Gears
20 gear(s)
- Aluminum frame and carbon fork balance durability and light weight—durability to handle rough roads and light weight to help you out when they get steep
- Shimano GRX 2 x 10 drivetrain isn't a reworked set of road components—its gravel-specific ergonomics provide stability and reliability to get after the harder stuff
- Shimano GRX Shadow Plus rear derailleur reduces chain slap and noise, and prevents chain drop when terrain gets tough
- Shimano 11–36 cassette provides smooth and stable shifting that's designed to hold up to aggressive trail riding
- Tektro mechanical disc brakes deliver powerful, nuanced speed control for rough rides
- 12° flared handlebars gives you a wider and more upright hold
- WTB Nano Comp 700c x 40mm tires are built for speed with an uninterrupted centerline for efficiency on hardpack terrain and staggered outer knobs for chunky climbs and corners
- All-gender fit simplifies the buying process and fits riders 5'0"–6'3"
- Durable frame and components make this bike ready for adventure from pavement to gravel
- Add a frame bag or rear rack to extend your adventure overnight (bag and rack not included)
- Pedals not included
- NOTE: Specs and images are subject to change based on component availability
Imported.
This bike comes with Coast to Coast Support, which includes:
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
View the Co-op Cycles ADV Product LineView all Co-op Cycles Gravel Bikes- 1 year of free adjustments (see more below)
- In-store bike assembly
- Pickup in store or curbside
- Bike experts available at 170+ bike shops
- 20% off shop services
- Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
| Best Use | Road Cycling Bikepacking Gravel Cycling |
|---|---|
| Frame | Double-butted 6061 aluminum |
| Fork | Carbon with 1-1/8 to 1-1/2 tapered steerer tube |
| Bike Suspension | No Suspension |
| Crankset | Shimano GRX 600, 46-30t |
| Bottom Bracket | Shimano |
| Shifters | Shimano Tiagra ST-4700 |
| Front Derailleur | Shimano GRX 400 |
| Rear Derailleur | Shimano GRX 400, Shadow Plus design |
| Rear Cogs | Shimano CS-HG50, 11-36t |
| Number of Gears | 20 gear(s) |
| Brake Type | Mechanical Disc Brake |
| Brakes | Tektro MD-C550 cable actuated |
| Brake Levers | Tektro |
| Rims | WTB, ST i19 TCS 2.0 (Tubeless Ready) |
| Front Hub | DM for 12mm thru axle |
| Rear Hub | DM for 12mm thru axle |
| Wheel Size | 700c |
| Tires | WTB Nano Comp 700c x 40mm |
| Tire Width | 40 millimeters |
| Handlebar Shape | Drop Bar |
| Handlebar | Co-op Cycles 12-degree flared |
| Stem | Co-op Cycles 6061 aluminum |
| Seat Post | Promax 6061 aluminum |
| Saddle | WTB Silverado Comp |
| Pedals | Not included |
| Headset | Integrated 1-1/8 x 1-1/2 in. tapered |
| Chain | Shimano HG-X 10 speed |
| Weight | 23.4 pounds |
| Bike Weight | Bike weight is based on median size, as sold, or the average of two median sizes. |
| Gender | Unisex |
| Sustainability | From a Climate Neutral Certified brand |
Co-op Cycles Bikes (159859)
| XS | S | M | L | XL | |
|---|---|---|---|---|---|
| Height Range | 5' - 5'3" | 5'3" - 5'6" | 5'6" - 5'9" | 5'9" - 6' | 6' - 6'3" |
| Reach | 373 | 380 | 386 | 394 | 404 |
| Stack | 521 | 532 | 554 | 571 | 592 |
| Effective Top Tube | 513 | 528 | 545 | 563 | 585 |
| Seat Tube Center-Top | 385 | 435 | 470 | 510 | 545 |
| Standover Height | 698.5 | 727 | 756 | 785 | 811 |
| Head Tube Angle (degrees) | 70 | 70.5 | 71.5 | 71.5 | 72 |
| Seat Tube Angle (degrees) | 75 | 74.5 | 74 | 73.5 | 73 |
| Wheelbase | 1022 | 1029 | 1029 | 1040 | 1045 |
| Chainstay | 432 | 432 | 432 | 432 | 432 |
| Fork Offset | 55 | 55 | 50 | 50 | 50 |
Sizing Notes
All measurements are stated in millimeters or degrees unless otherwise indicated.
How we measure bikes
- Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
- Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
- Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
- Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
- Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
- Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
- Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
- Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
- Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
- Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
- Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
- Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
