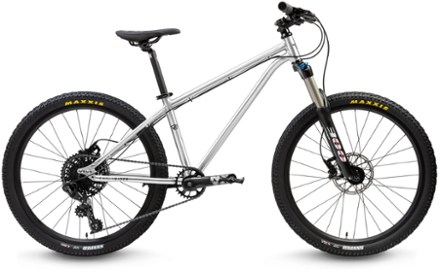

Early Rider Limited Trail 24" Hardtail Kids' Mountain Bike
This product is not available.
Shop similar productsThis Early Rider Limited Trail 24 in. hardtail kids' mountain bike has the geometry to give young riders confidence to tackle all-mountain adventuring or aggressive trail riding.
- Butted aluminum frame provides strength without the weight penalty
- SRAM hydraulic disc brakes give powerful braking power in the worst conditions a trail can offer
- 100mm of airsprung suspension soaks up the biggest bumps with the smallest weight penalty
- 11-42t wide gear range combats the steepest climbs
- 4-bearing, cassette-free hub means zero bearing compression and instant pickup
- Longer wheel base and slack head angle provide point-and-go confidence
- Wide, double-butted Ritchey handlebar creates stability without adding weight
- Wide, lugged tires provide control at speeds and soak up the bumps—perfect to hook up on hardpack berms to loose dirt on the trails
- Forged sliding dropouts let you easily adjust wheels
- Quick-release seat clamp makes adjusting seat height easy
- Quick-release skewers make for easy wheel removal
- Trademark hand-brushed, clear-coat finish provides resilience and agelessness
- NOTE: Specs and images are subject to change based on component availability
Imported.
- 1 year of free adjustments (see more below)
- In-store bike assembly
- Pickup in store or curbside
- Bike experts available at 170+ bike shops
- 20% off shop services
- Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
| Best Use | Mountain Biking |
|---|---|
| Mountain Bike Style | All-mountain |
| Frame | Hand brushed, 6061 Aluminum, forged drop outs |
| Bike Suspension | Front Suspension |
| Fork | Spinner Air 300 |
| Fork Travel | 100 millimeters |
| Crankset | Sram NX Powerspline 155mm |
| Bottom Bracket | Sram Powerspline 68/108 alloy cups |
| Shifters | Sram NX 11spd Trigger |
| Rear Derailleur | Sram NX 11 Speed X-Horizon |
| Rear Cogs | Sram PG1130 11-42t |
| Number of Gears | 11 gear(s) |
| Brake Type | Hydraulic Disc Brake |
| Brakes | SRAM Level hydraulic disc; 160mm rotors |
| Brake Levers | SRAM Level |
| Rims | Early Rider 24 28h double-wall aluminum |
| Front Hub | Early Rider CNC'd 6 bolt disc 6061 aluminum |
| Rear Hub | SD cassette freehub, CNC'd 6061 aluminum |
| Wheel Size | 24 inches |
| Tires | Maxxis Snyper |
| Tire Width | 2.0 inches |
| Handlebar Shape | Riser Bar |
| Handlebar | ER/Ritchey OS 640mm |
| Stem | Ritchey OS Forged Al6061 Stem 60mm Reach |
| Seat Post | Ritchey 27.2mm Black Anno |
| Saddle | SDG Fly Jr, Black syn, black rails |
| Pedals | Early Rider low-profile, 1-piece alloy platform, sealed bearings |
| Headset | 1 1/8 Conventional sealed cartridge |
| Chain | Sram PC1110 |
| Weight | 24 lbs. 7.54 oz. |
| Bike Weight | Bike weight is based on median size, as sold, or the average of two median sizes. |
| Gender | Kids' |
| 24 IN | |
|---|---|
| Effective Top Tube | 512 |
| Seat Tube Center-Top | 335 |
| Standover Height | 656 |
| Head Tube Length | 90 |
| Head Tube Angle (degrees) | 68 |
| Seat Tube Angle (degrees) | 73 |
| Bottom Bracket Height | -34 |
| Wheelbase | 980 |
| Chainstay | 390 |
Sizing Notes
Measurements are stated in Millimeters.
How we measure bikes
- Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
- Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
- Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
- Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
- Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
- Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
- Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
- Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
- Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
- Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
- Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
- Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
