Cannondale Trail 24 Kids' Bike
This product is not available. Good news: we have a newer version.

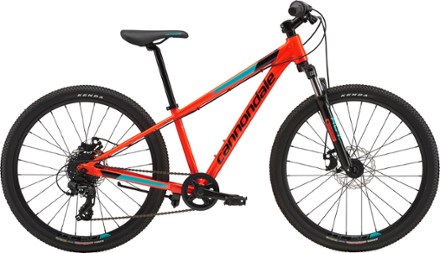

Shop newer versionTake your mini shredder on trail! With its lightweight alloy frame, powerful disc brakes and smooth suspension fork, the hardtail Cannondale Trail 24 kids' bike is ready for off-road adventure.
- SmartForm C2 alloy frame is lightweight but strong
- 63mm travel suspension fork absorbs bumps
- Kenda Small Block 8 tires (24 x 1.95 in.) are trail ready
- NOTE: Specs and images are subject to change based on component availability
Imported.
- 1 year of free adjustments (see more below)
- In-store bike assembly
- Pickup in store or curbside
- Bike experts available at 170+ bike shops
- 20% off shop services
- Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
| Best Use | Recreational Cycling |
|---|---|
| Mountain Bike Style | Trail |
| Frame | SmartForm C2 alloy, smooth welding |
| Bike Suspension | Front Suspension |
| Fork | SunTour XCT-JR 24, 63mm travel, 1-1/8 in. steerer, coil, with disc mounts |
| Fork Travel | 63 millimeters |
| Crankset | Prowheel, Pro-V30, 130mm length, 30t |
| Bottom Bracket | Cartridge square taper |
| Shifters | Shimano Tourney Revo Twist Shifter, 8-speed |
| Rear Derailleur | Shimano, TX800, 8-speed |
| Rear Cogs | Sunrace, 8-speed cassette, 11-34 |
| Number of Gears | 8 |
| Brake Type | Mechanical Disc Brake |
| Brakes | Cable-actuated mechanical disc |
| Brake Levers | Alloy 3-finger |
| Rims | Cannondale C4, lightweight alloy, 24 in., 28H |
| Front Hub | Formula, 8-speed freehub, disc |
| Rear Hub | Formula, 8-speed freehub, disc |
| Wheel Size | 24 inches |
| Tires | Kenda Small Block 8, 24 x 1.95 in. |
| Tire Width | 1.95 inches |
| Handlebar Shape | Flat Bar |
| Handlebar | Lightweight alloy, 580mm wide, 25.4mm |
| Stem | Alloy Ahead, 75mm |
| Seat Post | Lightweight alloy, 25.4 mm |
| Saddle | Wellgo composite platform with reflectors |
| Pedals | Wellgo composite platform with reflectors |
| Headset | FSA, Alloy, 1-1/8 in. Ahead, integrated |
| Chain | KMC, Z51, 1/2 in. x 3/32 in. |
| Weight | 26 pounds |
| Bike Weight | Bike weight is based on median size, as sold, or the average of two median sizes. |
| Gender | Kids' |
| 24 IN | |
|---|---|
| Height Range | 46"- 57" |
| Reach | 33.5/ 13.2 |
| Stack | 54.5/ 21.5 |
| Effective Top Tube | 51.2/ 20.2 |
| Seat Tube Center-Top | 32.5/ 12.8 |
| Standover Height | 61.6/ 24.3 |
| Head Tube Angle (degrees) | 69.5°/ 27.4° |
| Seat Tube Angle (degrees) | 72°/ 28.3° |
| Bottom Bracket Height | 23.6/ 9.3 |
| Wheelbase | 97.6/ 38.4 |
| Chainstay | 42.5/ 16.7 |
Sizing Notes
Measurements are stated in centimeter/inch format unless otherwise indicated.
How we measure bikes
- Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
- Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
- Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
- Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
- Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
- Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
- Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
- Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
- Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
- Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
- Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
- Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
