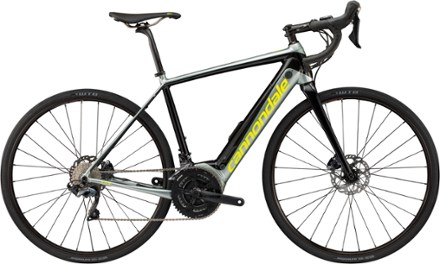

Cannondale  Synapse Neo AL 2 Electric Bike

This product is not available.

Shop similar products

Ahh, the open road. The Cannondale Synapse Neo AL 2 electric bike has hill-leveling power, all-day range and true endurance machinery to make the beauty of road riding fun and accessible.

Features

  • The Bosch Generation 3 Active Line Plus is the perfect drive unit for e-road; its silent, powerful, light and has virtually no drag when the motor cuts out
  • The big 500Wh PowerTube battery integrates cleanly into the downtube and packs enough energy for even the longest days, so it can get you home
  • Synapse Neo is the only Bosch-equipped road bike compatible with a double chainring crank, so you can always find the right gear to make the most of the power you have
  • OutFront Geometry delivers high-speed stability with a quick, nimble road-bike feel; plus, it reduces the chance of toe overlap with the front wheel on smaller sizes
  • A classic endurance rider position, road-smoothing 700x32c tires and Cannondale's SAVE Micro-Suspension keep you comfortably in control on even the longest, roughest days
  • Pedals not included
  • NOTE: Specs and images are subject to change based on component availability

Imported.

This e-bike comes with Coast to Coast Support, which includes:
  • 1 year of free adjustments (see more below)
  • In-store bike assembly
  • Pickup in store or curbside
  • Bike experts available at 170+ bike shops
REI Co-op Members get more:
  • An additional year of free adjustments on e-bikes
  • 20% off shop services
  • Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
More about our free adjustments:
New bikes go through a normal break-in period, after which they should be readjusted. All electric bicycles sold at REI include free adjustments for the defined period (one year after purchase date for non-members, or two years for REI Co-op Members)—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation, chain lubrication and e-bike firmware updates. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.

UL2849 certified
View the Cannondale Synapse Product LineView all Cannondale

Technical Specs

Best Use

Road Cycling

E-Bike Classification

Class 1: pedal assist up to 20 mph

Motor

Bosch Active Line Plus 250W

Motor Type

Mid-Drive

Motor Torque (Nm)

50 Newton meters

Battery Type

Lithium Ion

Battery Capacity (Wh)

500 watt hours

Battery Removable

Yes

Charge Time (hrs)

5 hours

Pedal Assist Range

91 miles

Frame

Synapse NEO, SmartForm C1 alloy, SAVE, Ai, flat mount brake, 142x12 thru-axle

Step-Through

No

Bike Suspension

No Suspension

Fork

Synapse NEO Disc, BallisTec Carbon, 1-1/8 in. to 1.5 in. tapered steerer, 55mm offset, flat mount, 12x100 thru axle

Fork Travel

55 millimeters

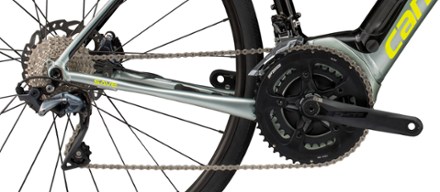

Crankset

Bosch Gen3 with custom Ai offset spider and FSA rings, 50/34

Shifters

Shimano 105 7020 hydro disc, 2x11

Front Derailleur

Shimano 105, braze-on

Rear Derailleur

Shimano Ultegra

Rear Cogs

Shimano Ultegra, 11-34, 11-speed

Number of Gears

11 gear(s)

Brake Type

Hydraulic Disc Brake

Brakes

Shimano 105 7070 hydro disc, 160/160mm RT70 rotors

Brake Levers

Shimano 105 7020 hydro disc

Rims

WTB ST i23 TCS 2.0, 28h front, 28h rear

Front Hub

Formula CL-712

Rear Hub

RXC-142S

Wheel Size

700c

Tires

WTB Exposure TCS, 700 x 32c, Distance + compound, tubeless ready

Tire Width

32 millimeters

Handlebar Shape

Drop Bar

Handlebar

Cannondale C3, 6061 Alloy, Compact

Stem

Cannondale C3, 3D Forged 6061 alloy, 1-1/8 in., 31.8, 7°

Seat Post

Cannondale SAVE Carbon, 25.4 x 350mm

Saddle

Fabric Scoop Shallow Race, ti rails

Pedals

Sold separately

Headset

Integrated, 1-1/8 to 1.5 in., sealed angular contact bearings

Chain

Shimano E8000, 11-speed

Weight

38 lbs. 12.8 oz.

Bike Weight

Bike weight is based on median size, as sold, or the average of two median sizes.

Gender

Unisex

Size Chart

Cannondale Bikes (145824)
SMLXL
Reach37.838.739.640.8
Stack54.757.760.963.8
Effective Top Tube53.555.257.659.7
Seat Tube Center-Top44.549.053.558.0
Standover Height73778185
Head Tube Length12.615.719.122.2
Head Tube Angle (degrees)71°71°71°71°
Seat Tube Angle (degrees)74°74°73.5°73°
Bottom Bracket Height28.228.228.228.2
Wheelbase103.4105.3107.3103.4
Chainstay43.843.843.843.8
Fork Offset5.55.55.55.5

Sizing Notes

Measurements are stated in centimeters unless otherwise indicated.

How we measure bikes

  1. Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
  2. Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
  3. Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
  4. Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
  5. Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
  6. Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
  7. Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
  8. Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
  9. Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
  10. Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
  11. Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
  12. Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
