Co-op Cycles ADV 1.1 Bike
This product is not available. Good news: we have a newer version.
Shop newer versionYou can tackle mountain passes with a full load on the Co-op Cycles ADV 1.1 road-touring bike. It has an ultra-low gear option, custom front and rear racks, and a smooth-riding chromoly steel frame.
Wheel Size
700c
Number of Gears
30 gear(s)
- Classic touring frame accommodates front and rear racks and fenders; front and rear rack included, fenders sold separately
- Double-butted chromoly steel frame offers great stability and strength under heavy loads, along with the reliably smooth ride quality that steel is known for
- Dependable Shimano Deore crankset and front derailleur, along with a Shimano Deore LX rear derailleur, make up the 30-speed drivetrain
- Rear derailleur accommodates up to a 36T rear cog for an ultra-low gear option for tackling mountain passes

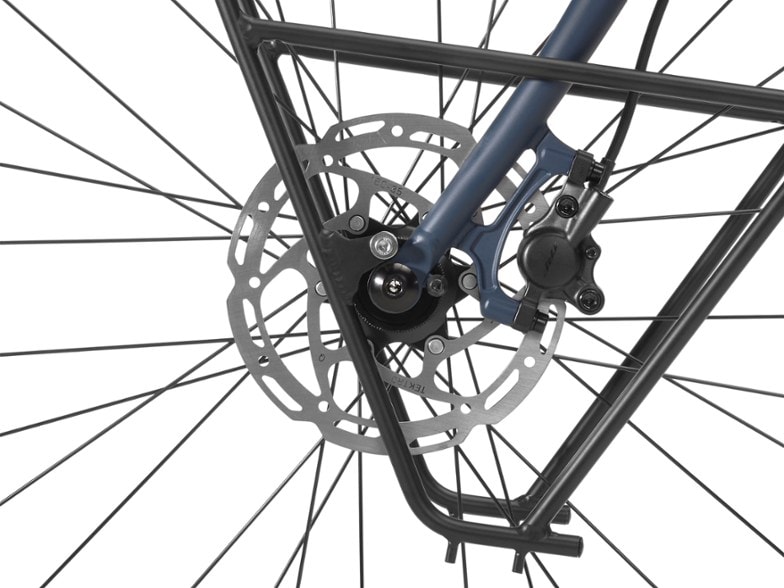

- Tektro HY/RD hydraulic disc brakes provide powerful, precise speed control
- WTB STP i23 rims and puncture-resistant Schwalbe Marathon tires have the durability needed to log many miles
- Fork has a cable guide braze-on for easy upgrading to a Dynamo front hub; also includes spoke holders on the drive-side chainstay
- Bicycle weight limit is 300 lbs. total, including rider + all gear carried on the bike and on the rider's body
- Pedals not included
- NOTE: Specs and images are subject to change based on component availability
Imported.
This bike comes with Coast to Coast Support, which includes:
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
View the Co-op Cycles ADV Product LineView all Co-op Cycles Touring Bikes- 1 year of free adjustments (see more below)
- In-store bike assembly
- Pickup in store or curbside
- Bike experts available at 170+ bike shops
- 20% off shop services
- Free tubes with purchase of flat tire repair (Co-op Cycles brand tubes only; tube must be installed at time of purchase)
New bikes go through a normal break-in period, after which they should be readjusted. All bicycles sold at REI include free adjustments for one year after purchase date—as many times as you need. Included: derailleur and brake adjustments, lateral wheel truing, hub and headset bearing adjustments, tire inflation and chain lubrication. Not included: replacement or installation of new components or accessories, any other services. Call your local REI Co-op Bike Shop for more information.
| Best Use | Bike Touring |
|---|---|
| Frame | Double-butted chromoly steel |
| Bike Suspension | No Suspension |
| Fork | Chromoly steel with 15mm thru-axle |
| Crankset | Shimano FC-T551 48/36/26 |
| Bottom Bracket | Shimano Outboard 24mm |
| Shifters | Microshift bar end shifters |
| Front Derailleur | Shimano Deore FD-T6000 |
| Rear Derailleur | Shimano Deore RD-T6000 |
| Rear Cogs | Shimano HG500, 11-34, 10-speed |
| Number of Gears | 30 gear(s) |
| Brake Type | Hydraulic Disc Brake |
| Brakes | TRP HY/RD hydraulic disc |
| Brake Levers | TRP aluminum |
| Rims | WTB STP i23 |
| Front Hub | Shimano Deore HB-M6010 |
| Rear Hub | Shimano Deore FH-M6000 |
| Wheel Size | 700c |
| Tires | Schwalbe Marathon with puncture protection, 700 x 38mm |
| Tire Width | 38 millimeters |
| Handlebar Shape | Drop Bar |
| Handlebar | Co-op Cycles aluminum |
| Stem | Co-op Cycles aluminum |
| Seat Post | Co-op Cycles aluminum |
| Saddle | WTB Pure V Sport |
| Pedals | Sold separately |
| Headset | FPD |
| Chain | Shimano CN-HG54 |
| Weight | 30 pounds |
| Bike Weight | Bike weight is based on median size, as sold, or the average of two median sizes. |
| Gender | Unisex |
| Sustainability | From a Climate Neutral Certified brand |
Co-op Cycles Bikes (122462, 220761)
| S | M | L | XL | XXL | |
|---|---|---|---|---|---|
| Height Range | 5'3"-5'6" | 5'6"-5'9" | 5'9"-6' | 6'-6'3" | 6'3"-6'6" |
| Reach | 364.4 | 370.7 | 376.8 | 383.2 | 388.7 |
| Stack | 562 | 571.5 | 599.4 | 643.8 | 670.3 |
| Effective Top Tube | 515 | 540 | 560 | 580 | 600 |
| Seat Tube Center-Top | 440 | 500 | 540 | 580 | 620 |
| Standover Height | 725.7 | 761.9 | 795 | 836.1 | 868.8 |
| Head Tube Angle (degrees) | 70.5 | 70.5 | 71 | 71 | 71 |
| Seat Tube Angle (degrees) | 75 | 73.5 | 73 | 73 | 72.5 |
| Wheelbase | 1044 | 1053.7 | 1059 | 1080.7 | 1095.3 |
| Chainstay | 455 | 455 | 455 | 455 | 455 |
| Fork Offset | 55 | 55 | 50 | 50 | 50 |
Sizing Notes
All measurements are stated in millimeters or degrees unless otherwise indicated.
How we measure bikes
- Standover Height Standover Height is a measurement from the ground to the top of the top tube, measured at the midpoint of the top tube.
- Reach Reach is the horizontal distance from the center of the cranks to the center of the head tube, measured at head tube level.
- Stack Stack is the vertical distance from the center of the cranks to the center of the head tube, measured to the top of the head tube.
- Effective Top Tube Effective top tube is the distance from the center of the head tube to the center of the seat tube/seat post, measured parallel to the ground.
- Seat Tube Center to Top Seat Tube length is the measurement of the seat tube, from the center of the cranks to the top of the seat tube.
- Head Tube Length Head Tube Length is measured from the bottom to the top of the head tube.
- Head Tube Angle Head Tube Angle is the acute angle between the head tube and the ground (measured towards the rear of the bike)
- Seat Tube Angle Seat Tube Angle is the acute angle between the seat tube and the ground (measured towards the rear of the bike).
- Bottom Bracket Height Bottom Bracket Height is a measurement taken vertically from the ground up to the center of the cranks.
- Wheelbase Wheelbase is the measurement from the center of the front axle to the center of the rear axle.
- Chainstay Length Chainstay Length is the measurement from the center of the cranks to the center of the rear axle.
- Fork Offset Fork Offset, or rake, is the distance from the front axle to a line drawn parallel to the center of the head tube or steering axis.
